Name: Binsey Chrome Deck Mounted 3 Tap Hole Basin Mixer Tap & Waste
Brand: Nuie
SKU: NWT6164
Price: 170 GBP
Availability: InStock

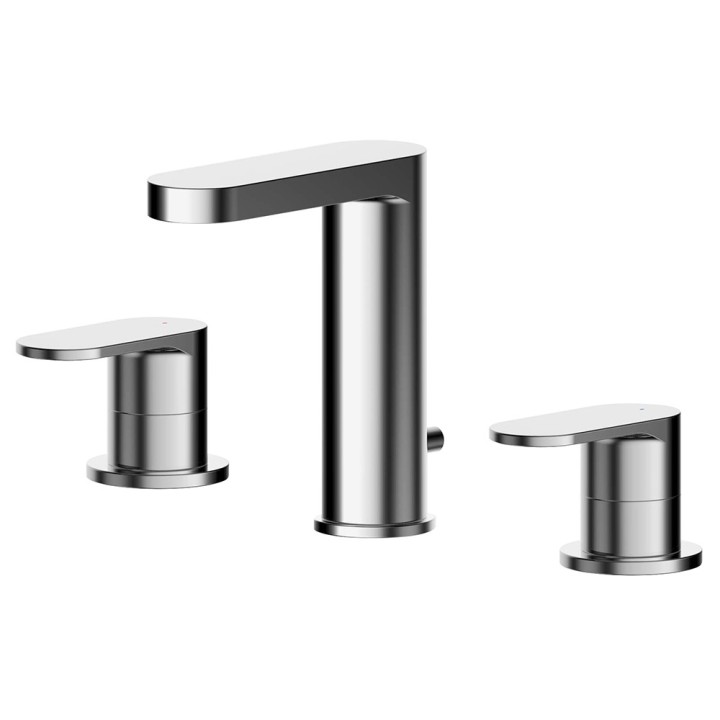

Binsey Deck Mounted 3 Tap Hole Basin Mixer With Pop Up Waste

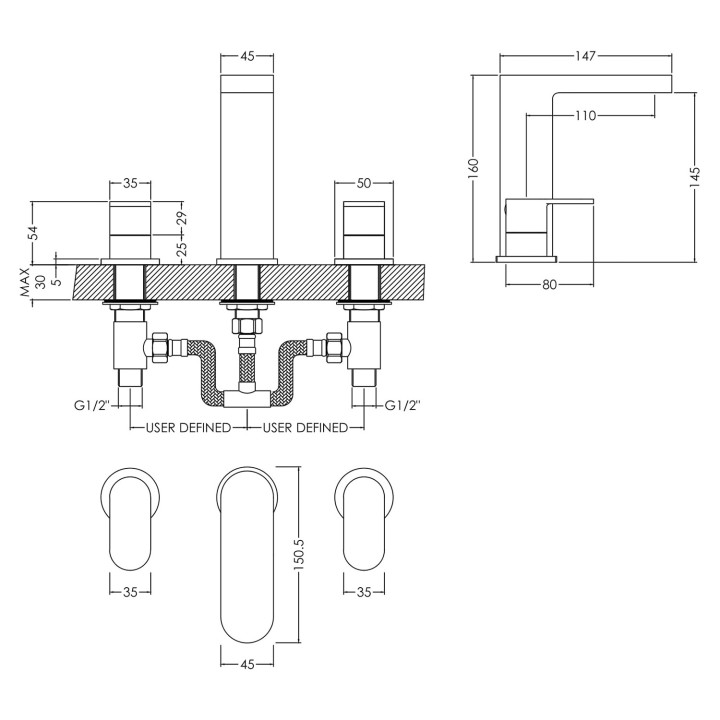

Binsey Deck Mounted 3 Tap Hole Basin Mixer With Pop Up Waste - Technical Drawing

£170.00

VAT included

In stock

Ready to dispatch

Secure checkout

VAT included

Easy returns

local_shipping

Free Delivery

Order before 2PM arrow_right_altDelivered between Tuesday, 20th October - Thursday, 22nd October

Description

Stunning contemporary curved design with luxury chrome finish
Ceramic disc technology provides smooth operation and long life
Excellent flow rates even at low pressure
Supplied with co-ordinating pop up waste

Product Specifications

Everything you need to know about this product, from dimensions and installation to finish and performance.

Dimensions

Width (mm) 235mm

Height (mm) 160mm

Depth (mm) 147mm

Technical Specifications

Operating Pressure 0.2

Flow Rate at 0.1 Bar 2.7 L/min

Flow Rate at 0.5 Bar 8.1 L/min

Flow Rate at 1 Bar 12.1 L/min

Flow Rate at 2 Bar 17.8 L/min

Flow Rate at 3 Bar 22 L/min

Design & Appearance

Design Binsey

Outer Finish Chrome

Colour Family Chrome

Fixtures & Fittings

Tap Holes Required 3

Other Information

Includes Waste Yes

Cartridge Type 1/4 Turn

Brand & Product Codes

Manufacturer

Nuie

Quick Code NWT6164

EAN13 5056211898849

Files & Downloads

Installation guides, technical sheets and supporting product documents.

picture_as_pdf

Product Datasheet

Technical

PDF

arrow_downward
