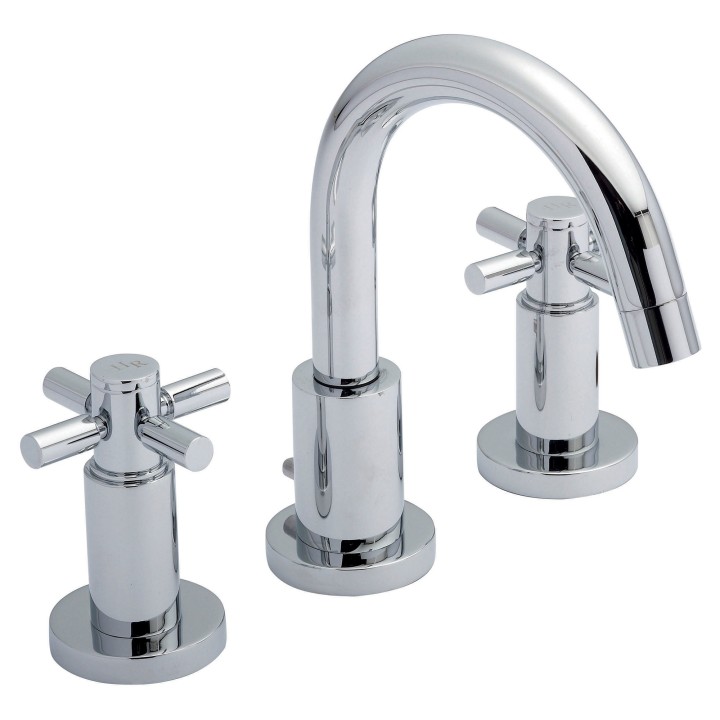

Name: Tec Chrome Crosshead 3 Tap Hole Basin Mixer Tap & Waste
Brand: Hudson Reed
SKU: NWT7810
Price: 155 GBP
Availability: InStock

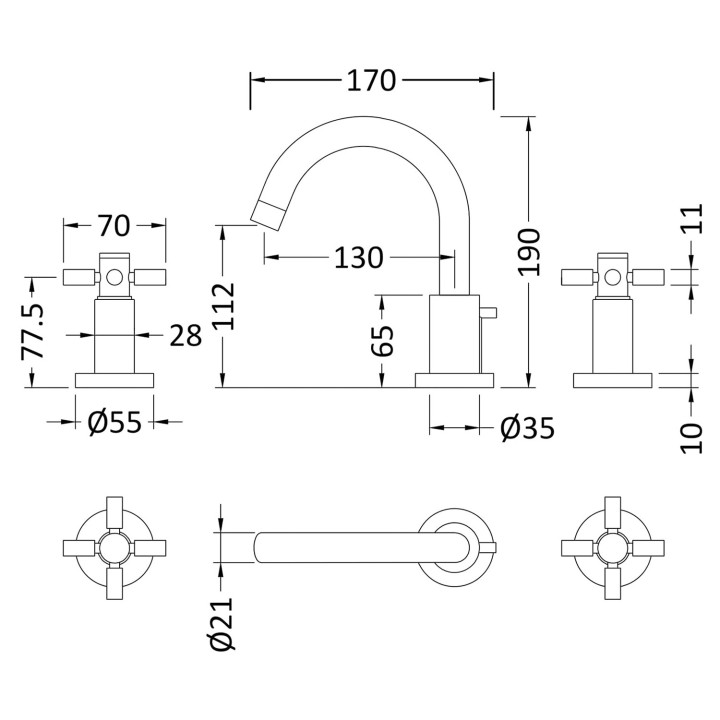

Tec Crosshead 3 Tap Hole Basin Mixer - Technical Drawing

£155.00

VAT included

In stock

Ready to dispatch

Secure checkout

VAT included

Easy returns

local_shipping

Free Delivery

Order before 2PM arrow_right_altDelivered between Tuesday, 27th October - Thursday, 29th October

Description

Timeless symmetry with crosshead handles
Swivel spout
Ceramic disc technology for long life and smooth operation
High quality brass internals with luxury chrome finish

Product Specifications

Everything you need to know about this product, from dimensions and installation to finish and performance.

Dimensions

Width (mm) 130mm

Height (mm) 190mm

Depth (mm) 175mm

Technical Specifications

Operating Pressure 0.1

Flow Rate at 0.1 Bar 4 L/min

Flow Rate at 0.5 Bar 14 L/min

Flow Rate at 1 Bar 22 L/min

Flow Rate at 2 Bar 28 L/min

Flow Rate at 3 Bar 32 L/min

Design & Appearance

Design Tec

Outer Finish Chrome

Colour Family Chrome

Finish Chrome

Fixtures & Fittings

Tap Holes Required 3

Other Information

Includes Waste Yes

Cartridge Type 1/4 Turn

Brand & Product Codes

Manufacturer

Hudson Reed

Quick Code NWT7810

EAN13 5055146192015

Files & Downloads

Installation guides, technical sheets and supporting product documents.

picture_as_pdf

Product Datasheet

Technical

PDF

arrow_downward

£155.00

Add to cart
