Tec Pura Matt Black Triple Thermostatic Shower Valve

NWT10426
Tec Pura Matt Black Triple Thermostatic Shower Valve
search

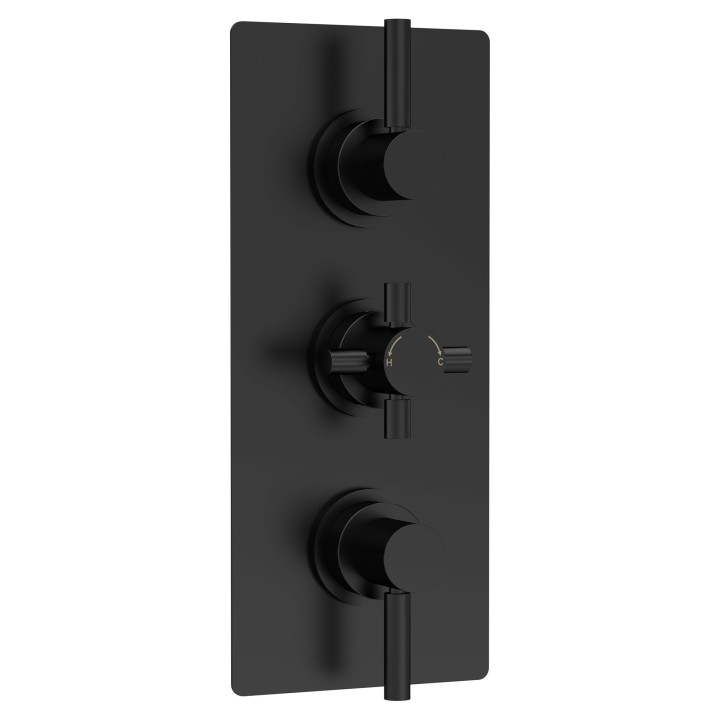

  • Tec Pura Matt Black Triple Thermostatic Shower Valve

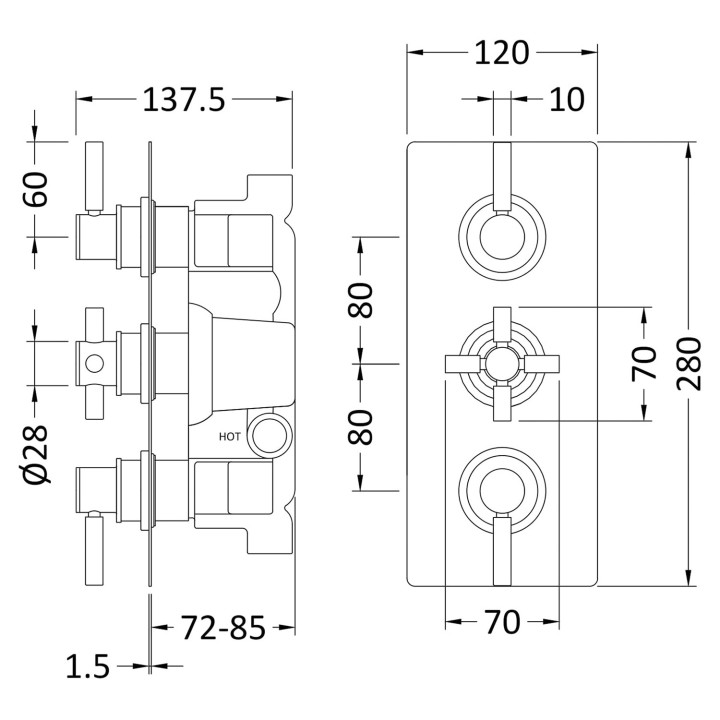

  • Tec Pura Matt Black Triple Thermostatic Shower Valve - Technical Drawing
£345.00
VAT included
local_shipping Order now for FREE delivery between Wednesday, 27th November - Friday, 29th November

Data sheet

Outer Finish
Matt Black
Height (mm)
280mm
Width (mm)
80mm
Depth (mm)
136mm
Design
Tec Pura
Colour Family
Black
Guarantee
3 Years
Operating Pressure
0.1
WRAS Approved
Yes
WRAS Approval Number
1703023
TMV2 Approved
Yes
TMV2 Approval Number
Bc 1875 00817
TMV3 Approval Number
Nsf 1938 1217
TMV3 Approved
Yes
Weight
5.32 KG
Valve/Cartridge Type
1/4 Turn
Flow Rate - 0.1 Bar
5.5
Flow Rate - 0.5 Bar
14
Flow Rate - 1 Bar
20
Flow Rate - 2 Bar
29
Flow Rate - 3 Bar
44
Range
Tec Pura
Brand
Hudson Reed Hudson Reed

  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
  • In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
