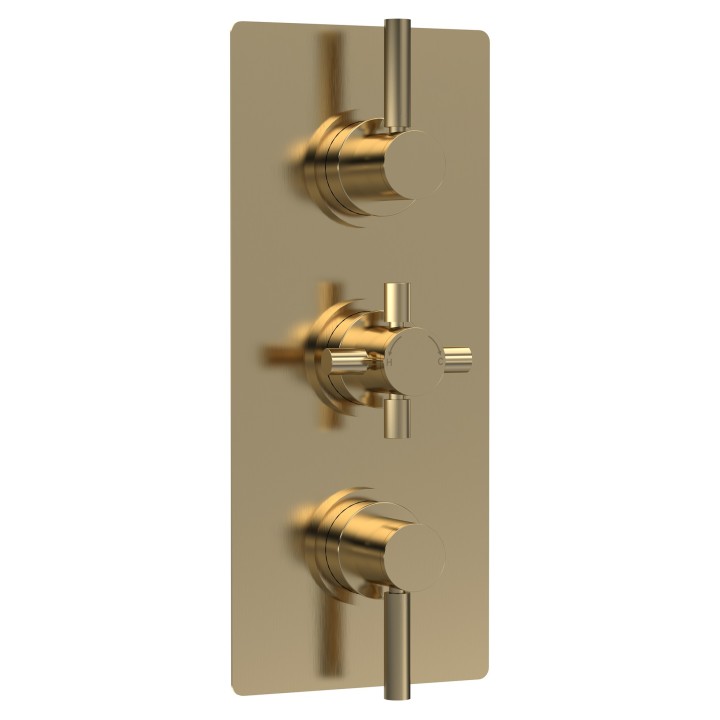

Tec Pura Brushed Brass Triple Thermostatic Shower Valve

NWT10427
event_available 31st March
  • search
    Tec Pura Brushed Brass Triple Thermostatic Shower Valve
  • search

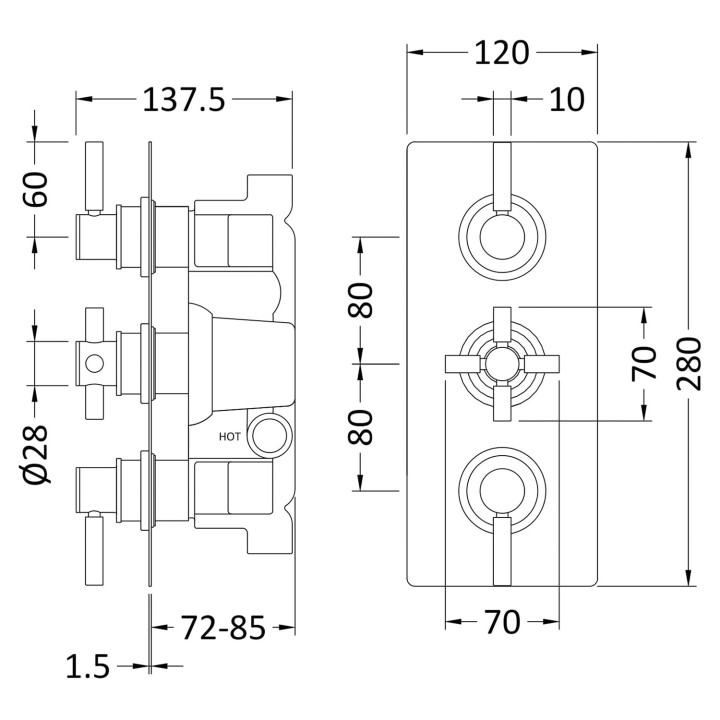

    Tec Pura Brushed Brass Triple Thermostatic Shower Valve - Technical Drawing
  • Tec Pura Brushed Brass Triple Thermostatic Shower Valve
  • Tec Pura Brushed Brass Triple Thermostatic Shower Valve - Technical Drawing
£373.00
VAT included
Your pre-order will be delivered when back in stock, which is currently due on Monday, 31st March

Data sheet

Width (mm)
80mm
Height (mm)
280mm
Depth (mm)
136mm
Design
Tec Pura
Outer Finish
Brushed Brass
Colour Family
Brass
Guarantee
3 Years
Operating Pressure
0.1
WRAS Approved
Yes
WRAS Approval Number
1703023
TMV2 Approved
Yes
TMV2 Approval Number
Bc 1875 00817
TMV3 Approval Number
Nsf 1938 1217
TMV3 Approved
Yes
Weight
5.32 KG
Valve/Cartridge Type
1/4 Turn
Flow Rate - 0.1 Bar
5.5
Flow Rate - 0.5 Bar
14
Flow Rate - 1 Bar
20
Flow Rate - 2 Bar
29
Flow Rate - 3 Bar
44
Range
Tec Pura
Brand
Hudson Reed Hudson Reed

  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
  • In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
