Revolution Matt Black Triple Valve

NWT10434
check_box In stock
  • search

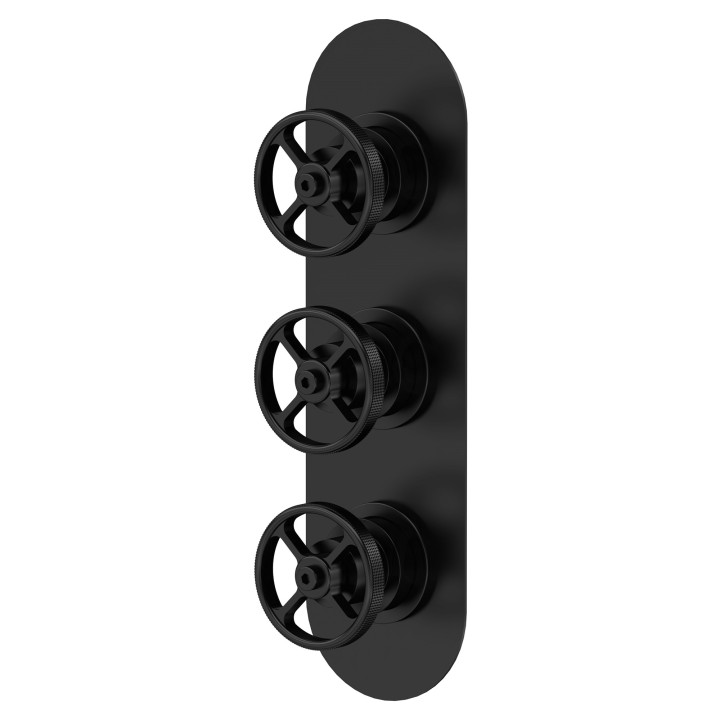

    Revolution Matt Black Triple Valve
  • search

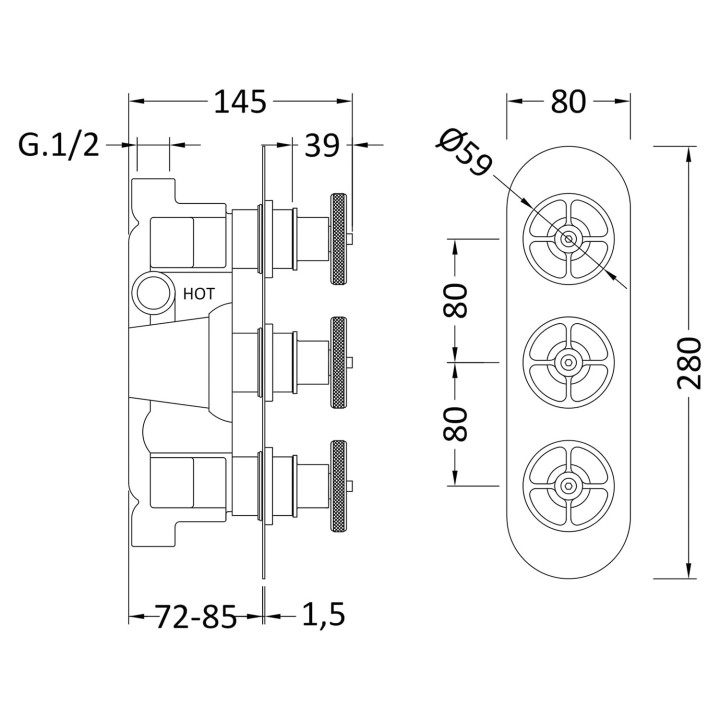

    Revolution Matt Black Triple Valve - Technical Drawing
  • Revolution Matt Black Triple Valve
  • Revolution Matt Black Triple Valve - Technical Drawing
£358.00
VAT included
local_shipping If you order before 2pm your order will be delivered FREE between Wednesday, 4th June - Friday, 6th June

Data sheet

Width (mm)
80mm
Height (mm)
280mm
Depth (mm)
136mm
Design
Revolution
Outer Finish
Matt Black
Colour Family
Black
Guarantee
3 Years
Made In UK
Yes
Operating Pressure
0.1
WRAS Approved
Yes
WRAS Approval Number
1703023
TMV2 Approved
Yes
TMV2 Approval Number
Bc 1875 00817
TMV3 Approval Number
Nsf 1938 1217
TMV3 Approved
Yes
Weight
3.8 KG
Valve/Cartridge Type
1/4 Turn
Flow Rate - 0.1 Bar
5.5
Flow Rate - 0.5 Bar
14
Flow Rate - 1 Bar
20
Flow Rate - 2 Bar
29
Flow Rate - 3 Bar
44
Range
Industrial Valves
Brand
Hudson Reed Hudson Reed

  • Industrial design with contemporary matt black finish
  • Suitable for use with all systems: gravity fed pumped unvented high pressure of fully modulated combi-boilers
  • Accurate flow control
  • Excellent flow rates
  • High quality internal brassware
