Revolution Brushed Brass Triple Valve

NWT10435
event_available 5th May
  • search

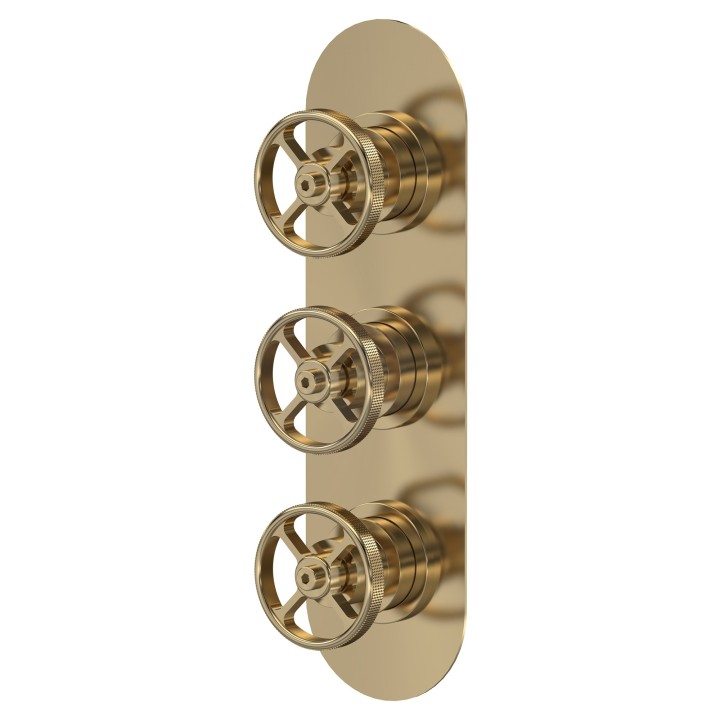

    Revolution Brushed Brass Triple Valve
  • search

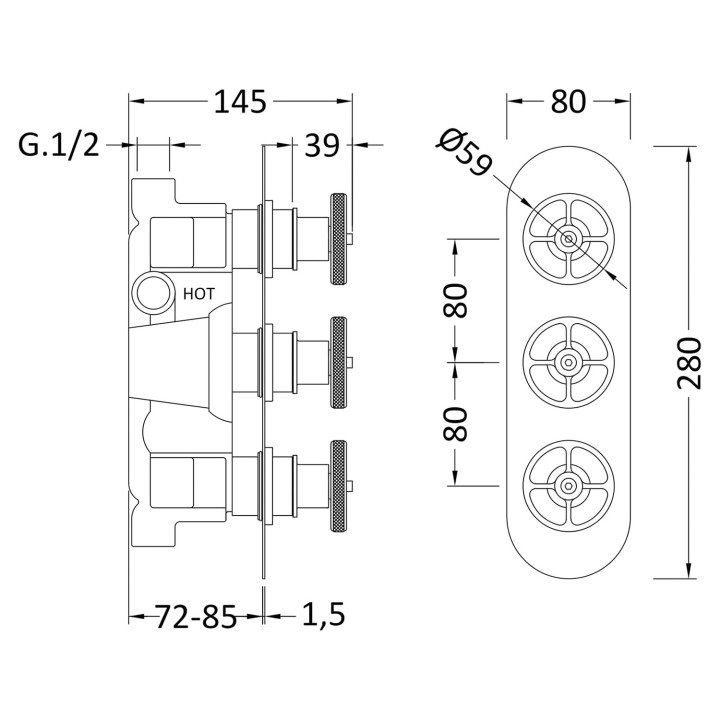

    Revolution Brushed Brass Triple Valve - Technical Drawing
  • Revolution Brushed Brass Triple Valve
  • Revolution Brushed Brass Triple Valve - Technical Drawing
£386.00
VAT included
Your pre-order will be delivered when back in stock, which is currently due on Monday, 5th May

Data sheet

Width (mm)
80mm
Height (mm)
280mm
Depth (mm)
136mm
Design
Revolution
Outer Finish
Brushed Brass
Colour Family
Brass
Guarantee
3 Years
Made In UK
Yes
Operating Pressure
0.1
WRAS Approved
Yes
WRAS Approval Number
1703023
TMV2 Approved
Yes
TMV2 Approval Number
Bc 1875 00817
TMV3 Approval Number
Nsf 1938 1217
TMV3 Approved
Yes
Weight
3.8 KG
Valve/Cartridge Type
1/4 Turn
Flow Rate - 0.1 Bar
5.5
Flow Rate - 0.5 Bar
14
Flow Rate - 1 Bar
20
Flow Rate - 2 Bar
29
Flow Rate - 3 Bar
44
Range
Industrial Valves
Brand
Hudson Reed Hudson Reed

  • Industrial design with stunning brushed brass finish
  • Suitable for use with all systems: gravity fed pumped unvented high pressure of fully modulated combi-boilers
  • Accurate flow control
  • Excellent flow rates
  • High quality internal brassware
