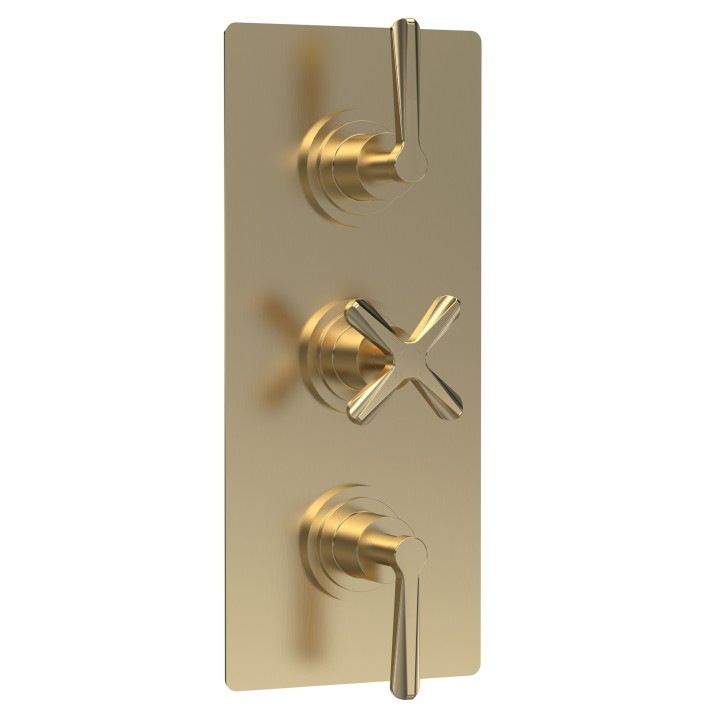

Aztec Triple Thermostatic Concealed Shower Valve - 2 Outlet - Brushed Brass
Product Code:
NWT13006
Introducing the Aztec Triple Thermostatic Concealed Shower Valve, the perfect addition to your bathroom! With two outlets and a stunning brushed brass finish, this shower valve is both functional and stylish. The triple thermostatic technology ensures a safe and comfortable shower experience, while the concealed design adds a sleek and modern touch to your bathroom decor. Easy to install and use, this shower valve is the ultimate upgrade for any bathroom. Don't settle for a boring shower valve, upgrade to the Aztec Triple Thermostatic Concealed Shower Valve today!
Description
- Minimalist sleek design
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
- In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from high quality brass & ABS
Product Specifications
Everything you need to know about this product, from dimensions and installation to finish and performance.
Technical Specifications
Operating Pressure
0.1
Flow Rate at 0.1 Bar
5.5
Flow Rate at 1 Bar
20
Flow Rate at 2 Bar
29
Flow Rate at 3 Bar
44
Flow Rate at 0.5
14
Design & Appearance
Design
Aztec
Colour Family
Brass
Finish
Brushed Brass
Fixtures & Fittings
Valve/Cartridge Type
1/4 Turn
Certifications & Standards
Made In UK
Yes
WRAS Approved
Yes
WRAS Approval Number
2204707
Brand & Product Codes
Nuie
Files & Downloads
Installation guides, technical sheets and supporting product documents.
