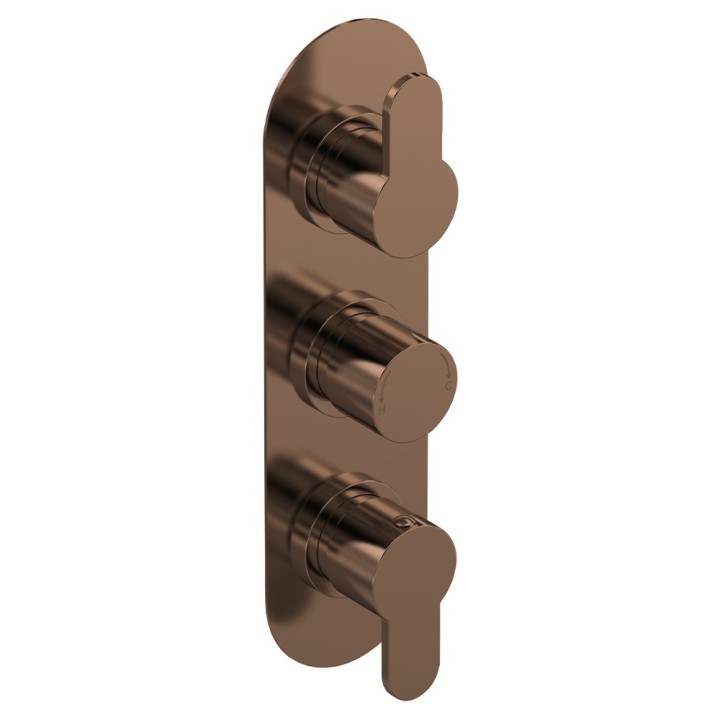

Arvan Triple Thermostatic Valve with Diverter - Brushed Bronze
NWT16074
ARV15TR03
local_shipping
Order now for FREE delivery between Thursday, 7th November - Monday, 11th November

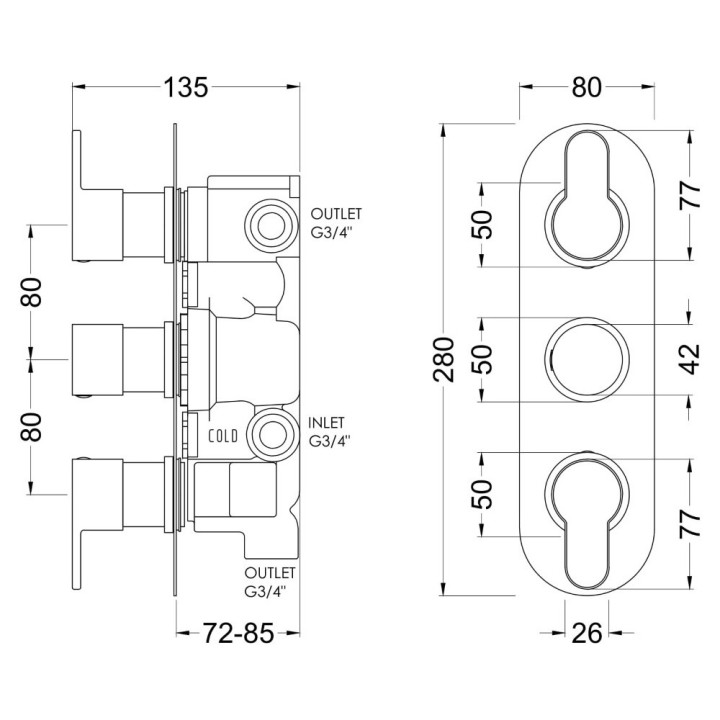

Data sheet
- Outer Finish
- Brushed Bronze
- Height (mm)
- 280 mm
- Width (mm)
- 80 mm
- Depth (mm)
- 136 mm
- Material
- ABS,Brass
- Guarantee
- 3 Years
- Minimum Operating Pressure
- 0.5 bar
- Cartridge Type
- 1/4 Turn
- Flow Rate at 0.5 Bar
- 13
- Flow Rate at 1 Bar
- 17
- Flow Rate at 2 Bar
- 24
- Flow Rate at 3 Bar
- 27
- Mount Type
- Surface/Wall
- Brand
- Nuie
Minimalist sleek design. Can be fitted vertically or horizontally. Accurate flow control. Thermostatic control to +/- 2 degrees even if the water pressure fluctuates. Full thermal protection to prevent scalding in the event of hot or cold water shut off. In the event of hot or cold water failure the valve will shut down as per the relevant standard. The unique cartridge is highly resistant to calcium build up - even in hard water areas. Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers. Excellent flow rates - even at low pressure. The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing. Simply remove the cartridge turn 180° and replace. Manufactured from solid brass.
