Windon Triple Thermostatic Shower Valve With Diverter

NWT6325
WINTR03
Windon Triple Thermostatic Shower Valve With Diverter
search

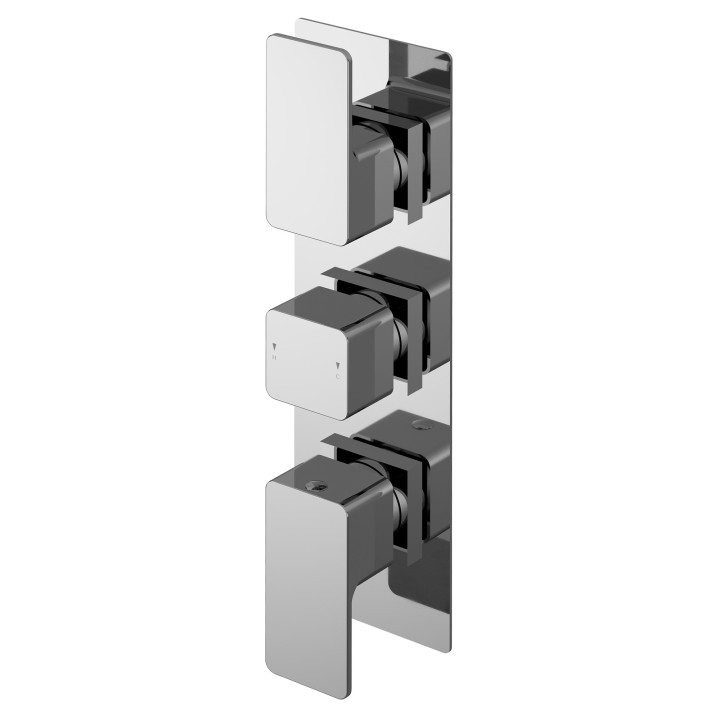

  • Windon Triple Thermostatic Shower Valve With Diverter

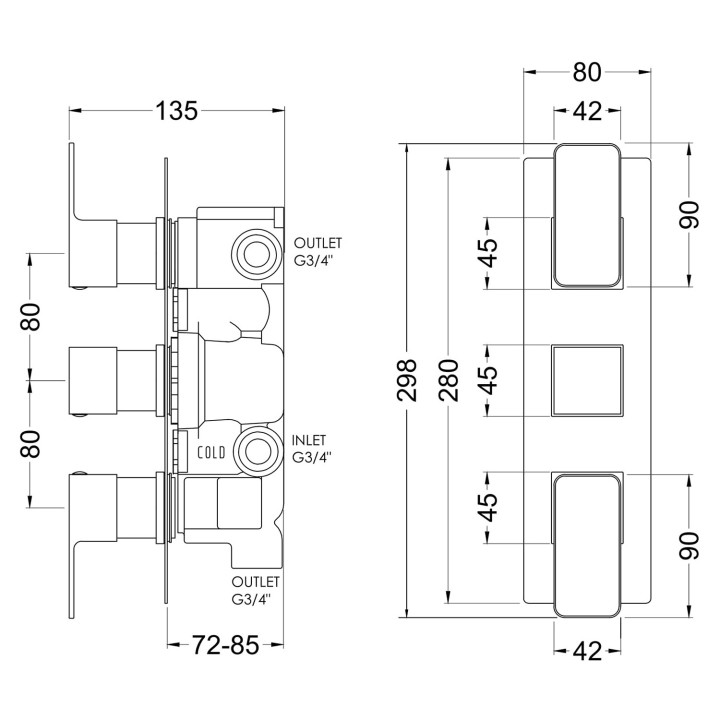

  • Windon Triple Thermostatic Shower Valve With Diverter - Technical Drawing
£296.00
VAT included
local_shipping Order now for FREE delivery between Wednesday, 3rd April - Friday, 5th April due to the Bank Holiday.

Data sheet

Outer Finish
Chrome
Height (mm)
300mm
Width (mm)
120mm
Depth (mm)
135mm
Design
Windon
Colour Family
Chrome
Includes Waste
No
Operating Pressure
0.5
Cartridge Type
1/4 Turn
Flow Rate at 0.5 Bar
13 L/min
Flow Rate at 1 Bar
17 L/min
Flow Rate at 2 Bar
24 L/min
Flow Rate at 3 Bar
27 L/min
Brand
Nuie Nuie

  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from solid brass
