"Arvan" Brushed Brass Twin Thermostatic Shower Valve

Product Code: NWT6376
event_available 1st September
  • search

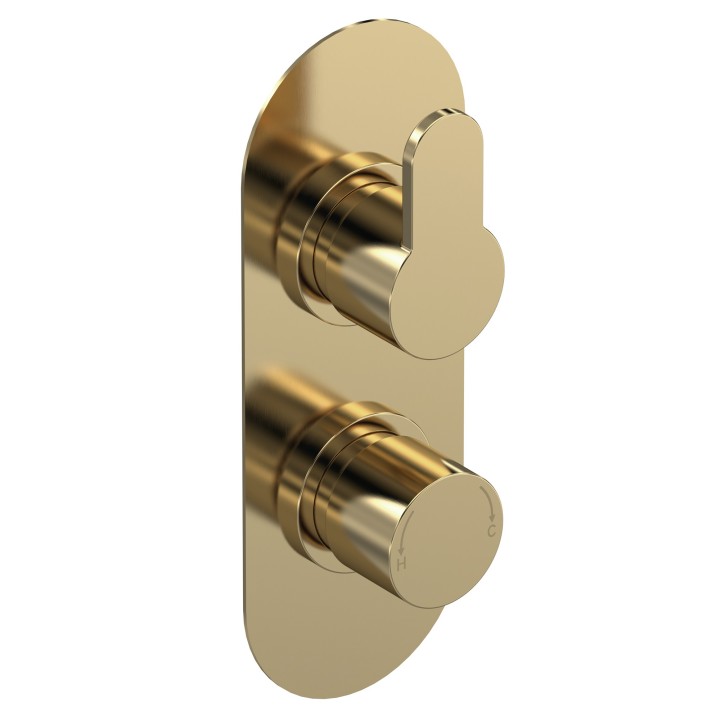

    Arvan Brushed Brass Twin Thermostatic Shower Valve
  • search

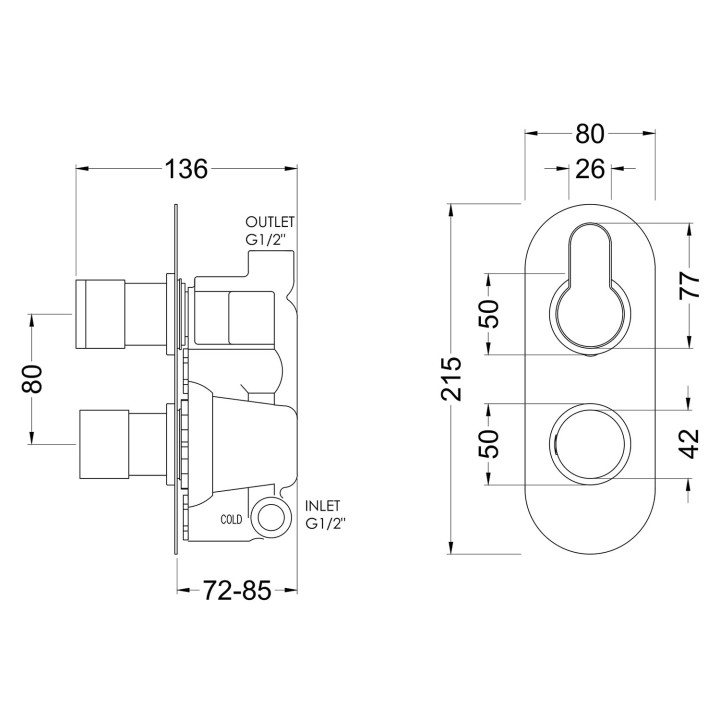

    Arvan Brushed Brass Twin Thermostatic Shower Valve - Technical Drawing
  • Arvan Brushed Brass Twin Thermostatic Shower Valve
  • Arvan Brushed Brass Twin Thermostatic Shower Valve - Technical Drawing
£247.00
VAT included
Your pre-order will be delivered when back in stock, which is currently due on Monday, 1st September
Dimensions
Width (mm) 80mm
Height (mm) 215mm
Depth (mm) 136mm
Technical Specifications
Operating Pressure 0.1
Flow Rate at 0.1 Bar 5.5 L/min
Flow Rate at 0.5 Bar 14 L/min
Flow Rate at 1 Bar 20 L/min
Flow Rate at 2 Bar 29 L/min
Flow Rate at 3 Bar 44 L/min
Design & Appearance
Design Arvan
Outer Finish Brushed Brass
Colour Family Brass
Certifications & Standards
WRAS Approved Yes
WRAS Approval Number 1703023
TMV2 Approved Yes
TMV2 Approval Number Bc 1875 00817
TMV3 Approval Number Nsf 1938 1217
Other Information
Includes Waste No
Cartridge Type 1/4 Turn
Brand
Brand Nuie Nuie
EAN13 5056462623092
Quick find code: NWT6376
Description
  • Minimalist sleek design with brushed brass finish
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
