Volt Concealed Shower Valve Triple Handle with Diverter

NWT6401
event_available 23rd June
  • search

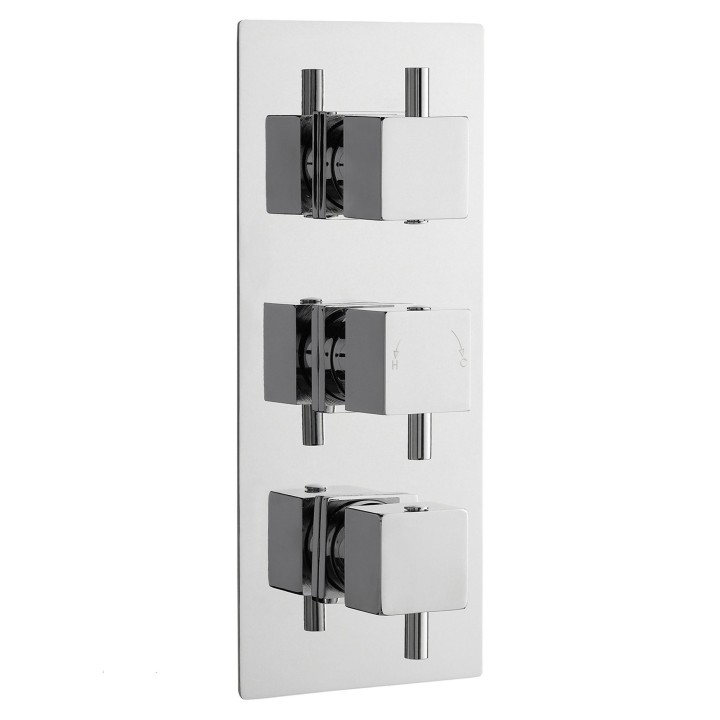

    Volt Concealed Shower Valve Triple Handle with Diverter
  • search

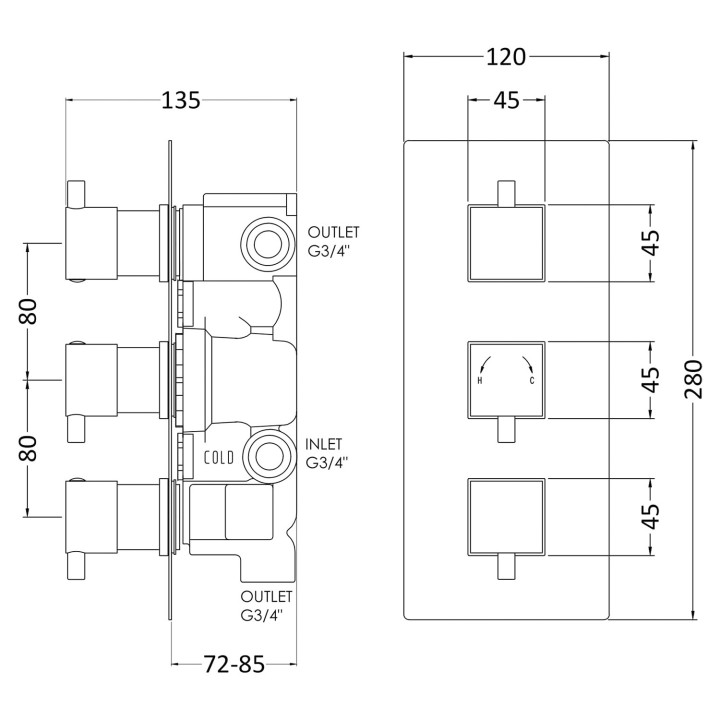

    Volt Concealed Shower Valve Triple Handle with Diverter - Technical Drawing
  • Volt Concealed Shower Valve Triple Handle with Diverter
  • Volt Concealed Shower Valve Triple Handle with Diverter - Technical Drawing
£330.00
VAT included
Your pre-order will be delivered when back in stock, which is currently due on Monday, 23rd June

Data sheet

Width (mm)
120mm
Height (mm)
280mm
Depth (mm)
136mm
Design
Volt
Outer Finish
Chrome
Colour Family
Chrome
Made In UK
Yes
Operating Pressure
0.5
Cartridge Type
1/4 Turn
Flow Rate at 0.5 Bar
13 L/min
Flow Rate at 1 Bar
17 L/min
Flow Rate at 2 Bar
24 L/min
Flow Rate at 3 Bar
27 L/min
Brand
Nuie Nuie

  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 degree - even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for medium pressure water systems
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
