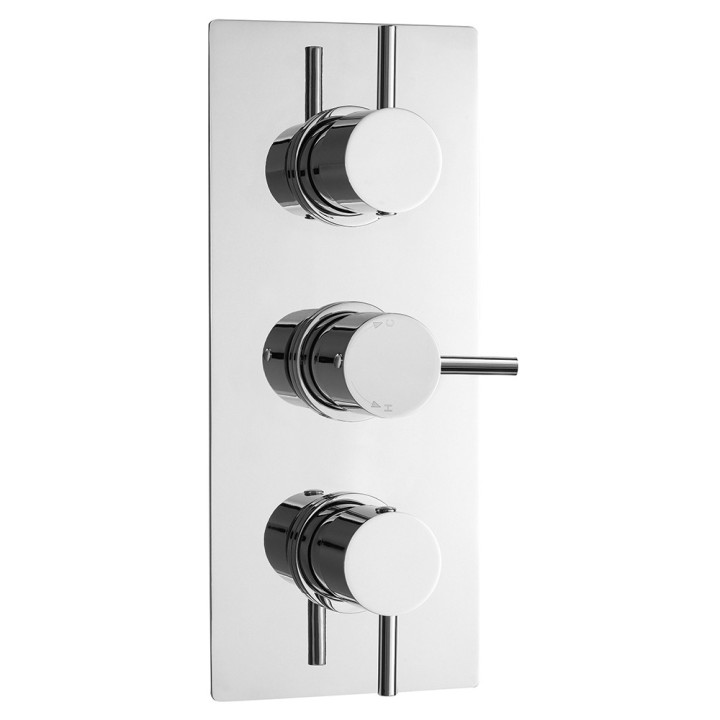

"Quest" Rectangular Concealed Dual Shower Valve

Product Code: NWT6408

In stock

Quest Rectangular Concealed Dual Shower Valve

£303.00

VAT included

If you order before 2pm your order will be delivered FREE between Monday, 27th January - Wednesday, 29th January

Data sheet

Outer Finish: Chrome

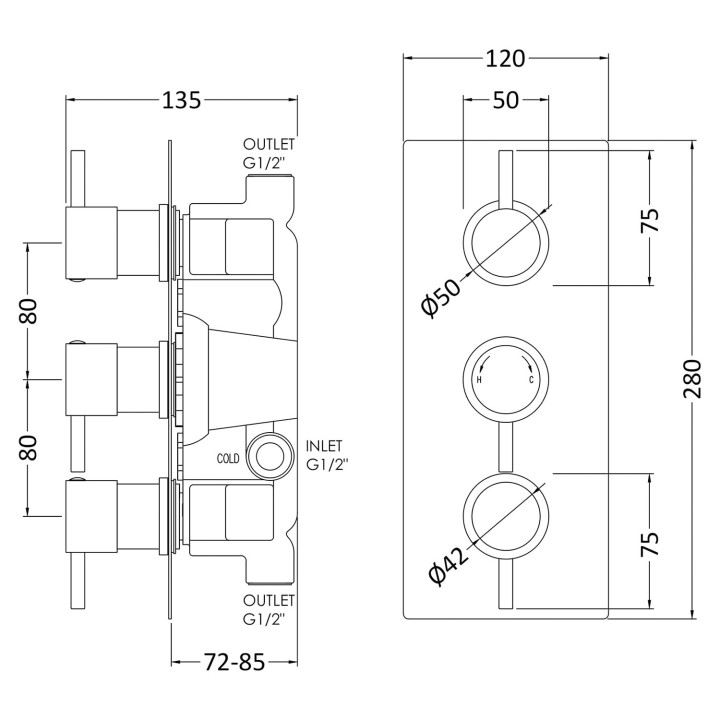

Height (mm): 280mm
Width (mm): 120mm
Depth (mm): 135mm
Design: Quest
Colour Family: Chrome
Made In UK: Yes
Operating Pressure: 0.1
Cartridge Type: 1/4 Turn
Flow Rate at 0.1 Bar: 5.5 L/min
Flow Rate at 0.5 Bar: 14 L/min
Flow Rate at 1 Bar: 20 L/min
Flow Rate at 2 Bar: 29 L/min
Flow Rate at 3 Bar: 44 L/min
WRAS Approved: Yes
WRAS Approval Number: 1703023
TMV2 Approved: Yes
TMV2 Approval Number: Bc 1875 00817
TMV3 Approval Number: Nsf 1938 1217
TMV3 Approved: Yes
Brand: Nuie

Minimalist sleek design
Can be fitted vertically or horizontally
Accurate flow control
Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
Full thermal protection to prevent scalding in the event of hot or cold water shut off
In the event of hot or cold water failure the valve will shut down as per the relevant standard
The unique cartridge is highly resistant to calcium build up - even in hard water areas
Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
Excellent flow rates - even at low pressure
The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
Simply remove the cartridge turn 180° and replace
Manufactured from high quality brass & ABS
