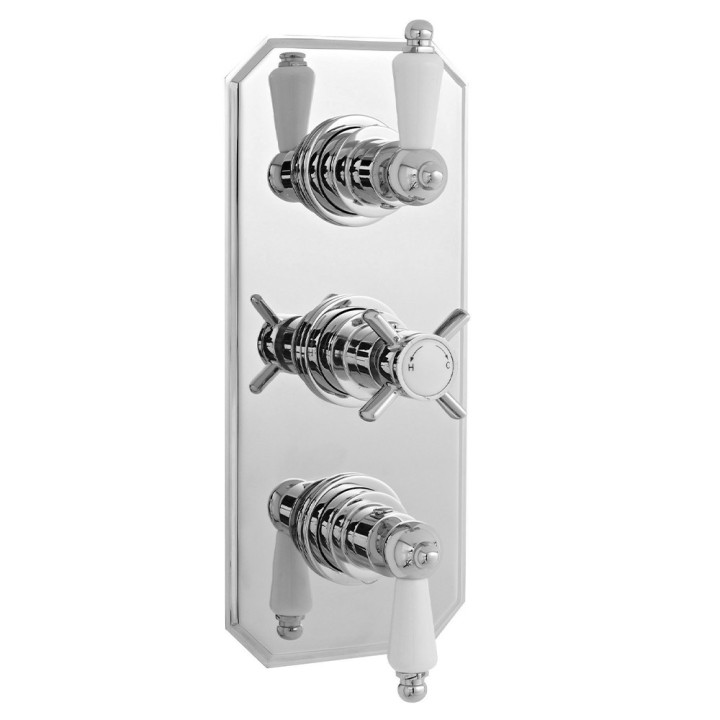

Edwardian Triple Thermostatic Shower Valve
Product Code:
NWT6605
event_available
10th November
Your pre-order will be delivered when back in stock, which is currently due on Monday, 10th November

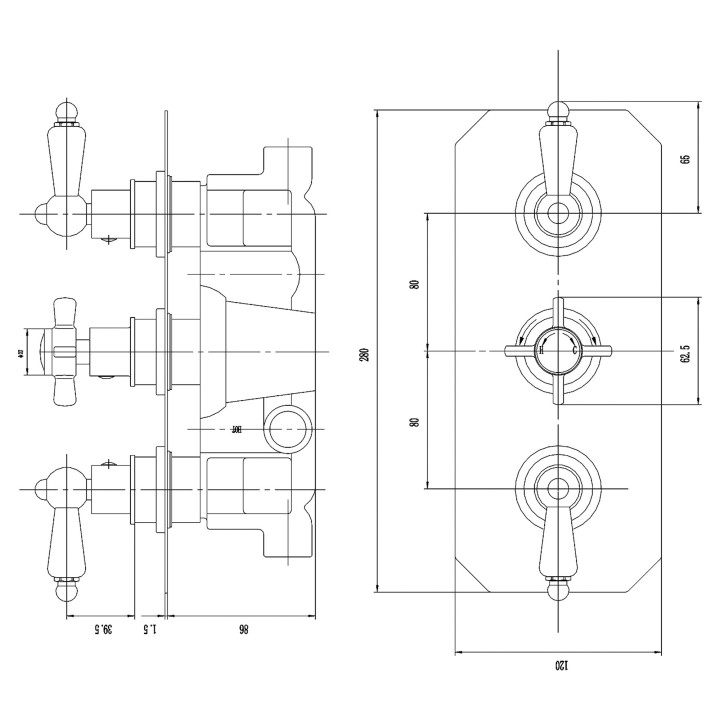

| Dimensions | |
|---|---|
| Width (mm) | 120mm |
| Height (mm) | 280mm |
| Depth (mm) | 124mm |
| Technical Specifications | |
|---|---|
| Operating Pressure | 0.1 |
| Flow Rate at 0.1 Bar | 5.5 L/min |
| Flow Rate at 0.5 Bar | 14 L/min |
| Flow Rate at 1 Bar | 20 L/min |
| Flow Rate at 2 Bar | 29 L/min |
| Flow Rate at 3 Bar | 44 L/min |
| Design & Appearance | |
|---|---|
| Design | Edwardian |
| Outer Finish | Chrome |
| Colour Family | Chrome |
| Certifications & Standards | |
|---|---|
| Made In UK | Yes |
| WRAS Approved | Yes |
| WRAS Approval Number | 1703023 |
| TMV2 Approved | Yes |
| TMV2 Approval Number | Bc 1875 00817 |
| TMV3 Approval Number | Nsf 1938 1217 |
| TMV3 Approved | Yes |
| Other Information | |
|---|---|
| Cartridge Type | 1/4 Turn |
| Brand | |
|---|---|
| Brand | Nuie |
| EAN13 | 5055369030798 |
Description
- Bring an Edwardian sensibility to your bathroom with this traditional shower
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
- In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from high quality brass & ABS
