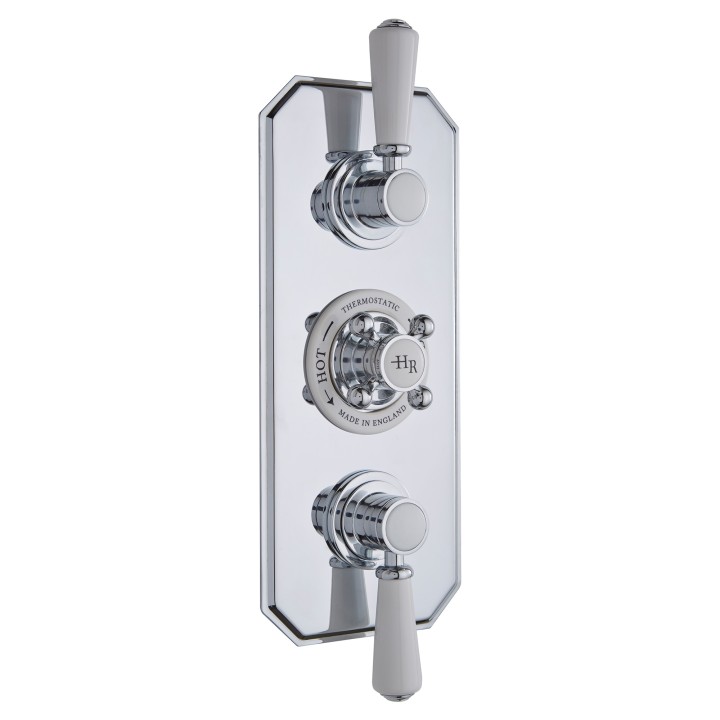

Traditional Triple diverter Valve

Product Code: NWT8208

Reference: TSVT005

In stock

£342.00

VAT included

Order now for FREE delivery between Wednesday, 1st May - Friday, 3rd May

Data sheet

Outer Finish: Chrome, White

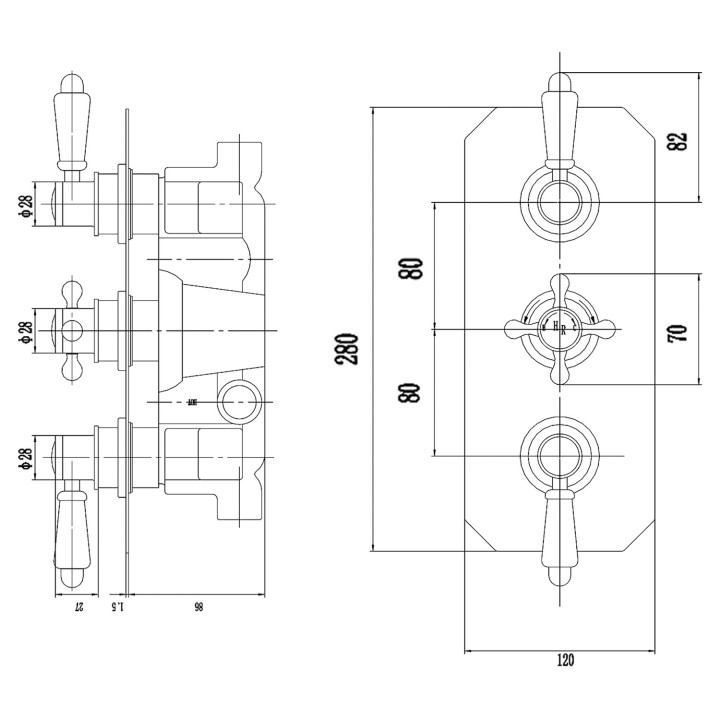

Height (mm): 320mm
Width (mm): 120mm
Depth (mm): 135mm
Colour Family: Chrome
Made In UK: Yes
Operating Pressure: 0.1
Cartridge Type: 1/4 Turn
Flow Rate at 0.1 Bar: 5.5 L/min
Flow Rate at 0.5 Bar: 14 L/min
Flow Rate at 1 Bar: 20 L/min
Flow Rate at 2 Bar: 29 L/min
Flow Rate at 3 Bar: 44 L/min
Finish: Chrome / White
Brand: Hudson Reed

Combining the elegance of traditional styling with the precision and technology of modern day design
Accurate flow control
Thermostatic control to +/- 2 degrees - even if the water pressure fluctuates
Full thermal protection to prevent scalding in the event of hot or cold water shut off
In the event of hot or cold water failure the valve will shut down as per the relevant standard
The unique cartridge is highly resistant to calcium build up - even in hard water areas
Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
Excellent flow rates - even at low pressure
Our valves can deliver 5.5 litres per minute at 0.1 bar pressure
The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
Simply remove the cartridge turn 180° and replace
Manufactured from high quality brass & ABS
