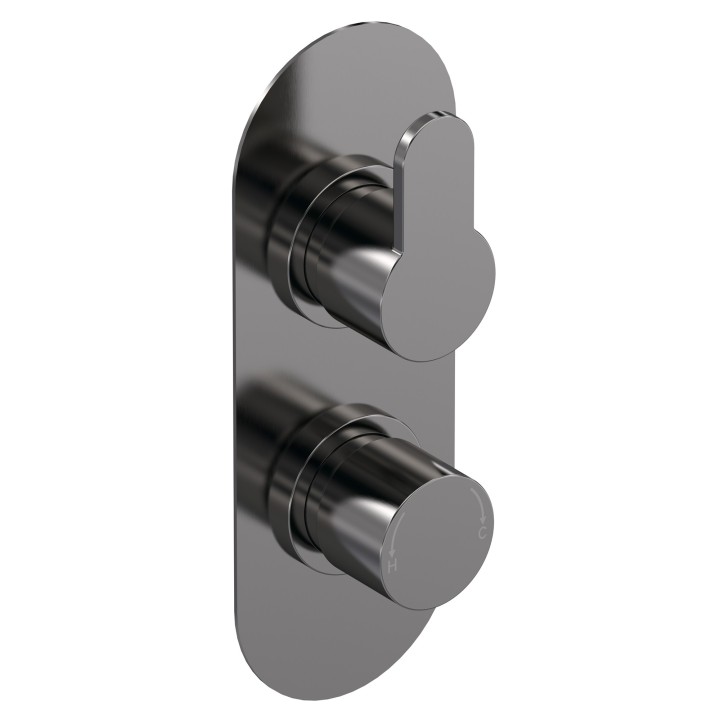

Arvan Twin Thermostatic Shower Valve - Brushed Pewter
Product Code:
NWT9632
check_box
In stock
local_shipping
Order now for FREE delivery between Thursday, 6th November - Monday, 10th November
| Dimensions | |
|---|---|
| Width (mm) | 80mm |
| Height (mm) | 215mm |
| Depth (mm) | 136mm |
| Technical Specifications | |
|---|---|
| Operating Pressure | 0.1 |
| Flow Rate - 0.1 Bar | 5.5 |
| Flow Rate - 0.5 Bar | 14 |
| Flow Rate - 1 Bar | 20 |
| Flow Rate - 2 Bar | 29 |
| Flow Rate - 3 Bar | 44 |
| Design & Appearance | |
|---|---|
| Design | Arvan |
| Outer Finish | Brushed Pewter |
| Colour Family | Brushed Finish |
| Fixtures & Fittings | |
|---|---|
| Waste Included | No |
| Valve/Cartridge Type | 1/4 Turn Ceramic Disc |
| Certifications & Standards | |
|---|---|
| Guarantee | 3 Years |
| WRAS Approved | Yes |
| WRAS Approval Number | 1703023 |
| TMV2 Approved | Yes |
| TMV2 Approval Number | Bc 1875 00817 |
| TMV3 Approval Number | Nsf 1938 1217 |
| Other Information | |
|---|---|
| Weight | 2.57KG |
| Brand | |
|---|---|
| Brand | Nuie |
| EAN13 | 5056462626949 |
| Quick find code: | NWT9632 |
Description
- Minimalist sleek design with brushed pewter finish
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from high quality brass & ABS
