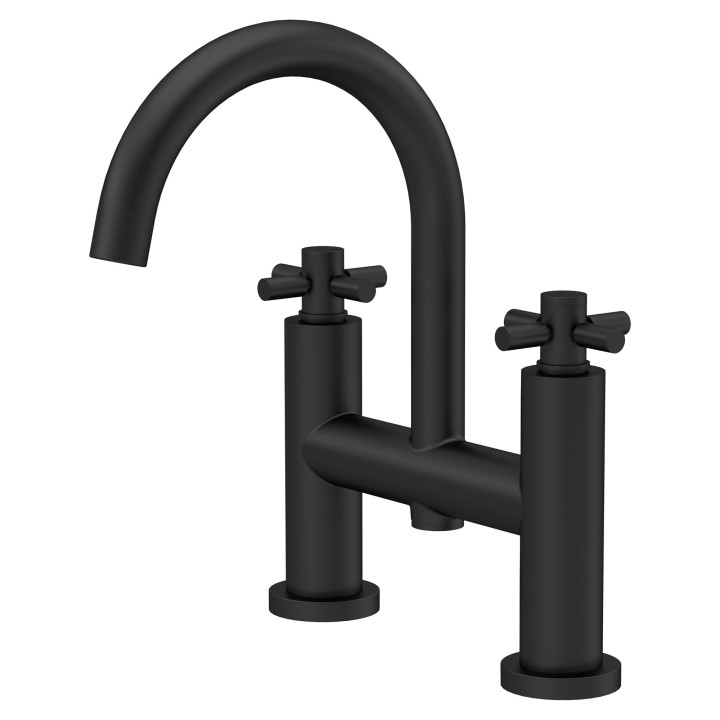

Name: Tec Matt Black Twin Cross Head Swan Neck Swivel Bath Filler
Brand: Hudson Reed
SKU: NWT10397
Price: 209 GBP
Availability: InStock

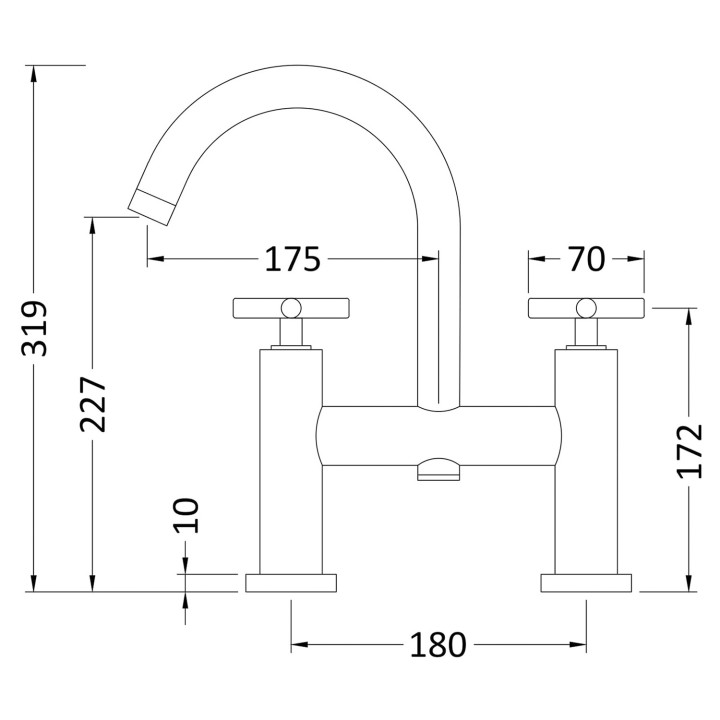

Tec Crosshead Matt Black Bath Filler - Technical Drawing

£209.00

VAT included

In stock

Ready to dispatch

Secure checkout

VAT included

Easy returns

local_shipping

Free Delivery

Order before 2PM arrow_right_altDelivered between Thursday, 22nd October - Monday, 26th October

Description

Timeless symmetry with crosshead handles
Swivel spout
Ceramic disc technology for long life and smooth operation
High quality brass internals with luxury matt black finish

Product Specifications

Everything you need to know about this product, from dimensions and installation to finish and performance.

Dimensions

Width (mm) 230mm

Height (mm) 319mm

Depth (mm) 50mm

Technical Specifications

Operating Pressure 0.2

Flow Rate - 0.1 Bar 8

Flow Rate - 0.5 Bar 29

Flow Rate - 1 Bar 40

Flow Rate - 2 Bar 48

Design & Appearance

Design Tec Crosshead

Outer Finish Matt Black

Colour Family Black

Range Tec Crosshead

Fixtures & Fittings

Tap Holes Required 2

Valve/Cartridge Type 1/4 Turn

Certifications & Standards

Guarantee 3 Years

Made In UK Yes

Other Information

Weight 3.1 KG

Brand & Product Codes

Manufacturer

Hudson Reed

Quick Code NWT10397

EAN13 5056462673721

Files & Downloads

Installation guides, technical sheets and supporting product documents.

picture_as_pdf

Product Datasheet

Technical

PDF

arrow_downward
