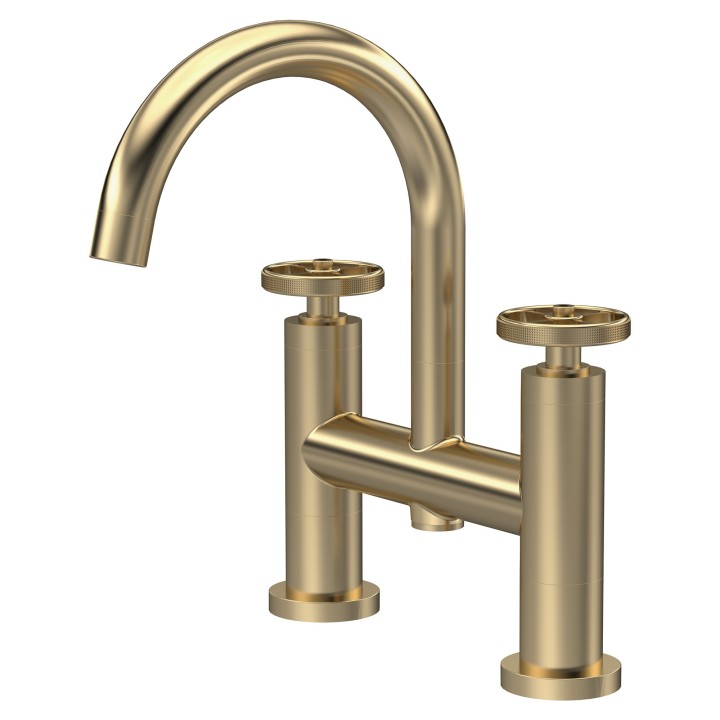

Name: Revolution Brushed Brass Wheel Handle Swan Neck Deck Mounted Bath Filler Tap
Brand: Hudson Reed
SKU: NWT10413
Price: 225 GBP
Availability: InStock

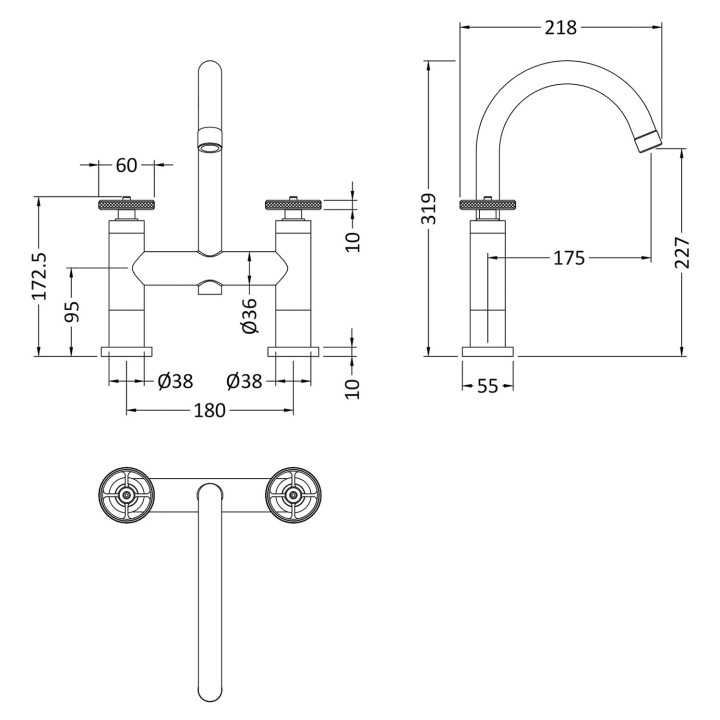

Revolution Brushed Brass Bath Filler - Technical Drawing

£225.00

VAT included

In stock

Ready to dispatch

Secure checkout

VAT included

Easy returns

local_shipping

Free Delivery

Order before 2PM arrow_right_altDelivered between Tuesday, 27th October - Thursday, 29th October

Description

Industrial style deck mounted bath filler offering a unique design
Luxury brushed brass finish
High quality brass internals
Features ceramic disc technology for smooth operation

Product Specifications

Everything you need to know about this product, from dimensions and installation to finish and performance.

Dimensions

Width (mm) 230mm

Height (mm) 319mm

Depth (mm) 50mm

Technical Specifications

Operating Pressure 0.2

Flow Rate - 0.1 Bar 8

Flow Rate - 0.5 Bar 29

Flow Rate - 1 Bar 40

Flow Rate - 2 Bar 48

Design & Appearance

Design Revolution

Outer Finish Brushed Brass

Colour Family Brass

Range Revolution

Fixtures & Fittings

Tap Holes Required 2

Valve/Cartridge Type 1/4 Turn

Certifications & Standards

Guarantee 3 Years

Made In UK Yes

Other Information

Weight 3 KG

Brand & Product Codes

Manufacturer

Hudson Reed

Quick Code NWT10413

EAN13 5056462673899

Files & Downloads

Installation guides, technical sheets and supporting product documents.

picture_as_pdf

Product Datasheet

Technical

PDF

arrow_downward
