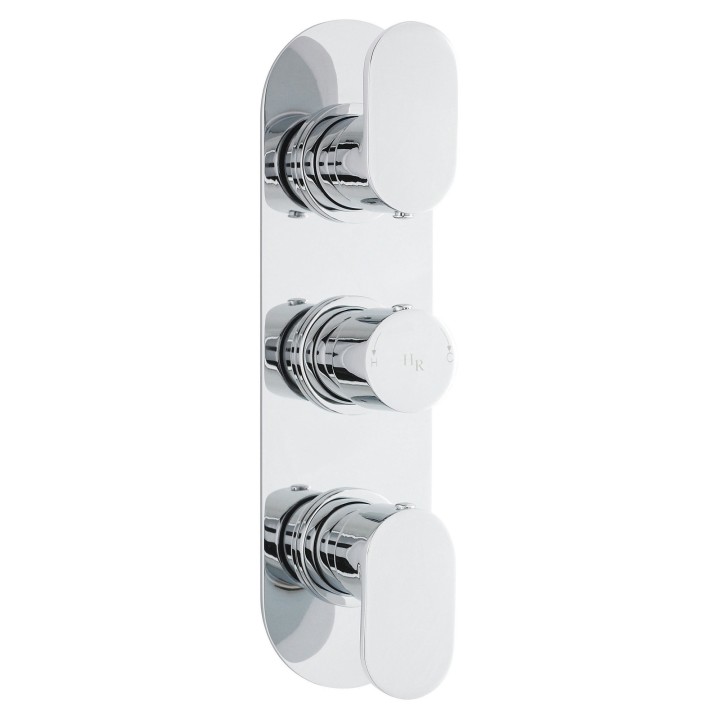

"Reign" Triple Concealed Thermostatic Valve Oval Plate
NWT7886
local_shipping
Order now for FREE delivery between Monday, 30th December - Friday, 3rd January due to the Bank Holiday.
Data sheet
- Outer Finish
- Chrome

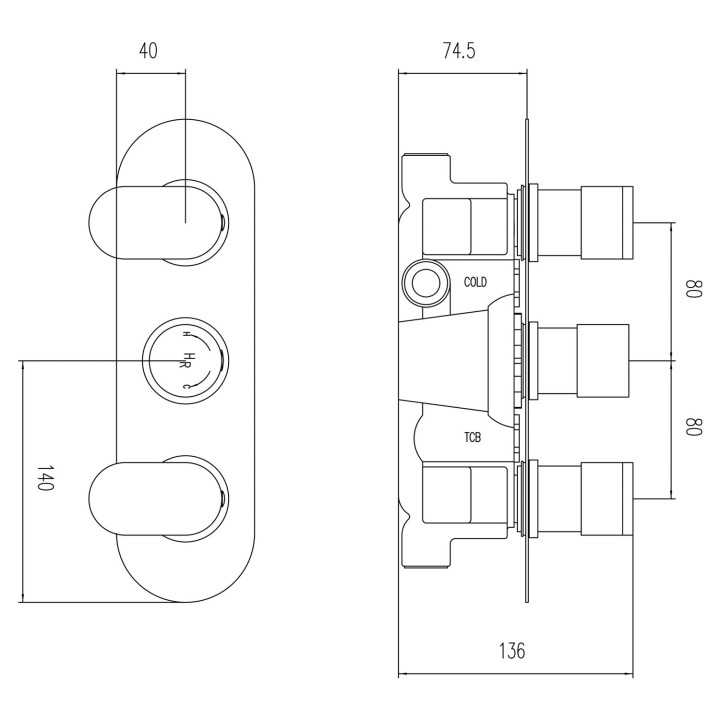

- Height (mm)
- 280mm
- Width (mm)
- 80mm
- Depth (mm)
- 136mm
- Design
- Reign
- Colour Family
- Chrome
- Made In UK
- Yes
- Operating Pressure
- 0.1
- Cartridge Type
- 1/4 Turn
- Flow Rate at 0.1 Bar
- 5.5 L/min
- Flow Rate at 0.5 Bar
- 14 L/min
- Flow Rate at 1 Bar
- 20 L/min
- Flow Rate at 2 Bar
- 29 L/min
- Flow Rate at 3 Bar
- 44 L/min
- WRAS Approved
- Yes
- WRAS Approval Number
- 1703023
- TMV2 Approved
- Yes
- TMV2 Approval Number
- Bc 1875 00817
- TMV3 Approval Number
- Nsf 1938 1217
- TMV3 Approved
- Yes
- Finish
- Chrome
- Brand
- Hudson Reed
- Minimalist sleek design
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from high quality brass & ABS
