"Tec" Pura Twin Valve with Built In Diverter

Product Code: NWT7911
check_box In stock
  • search

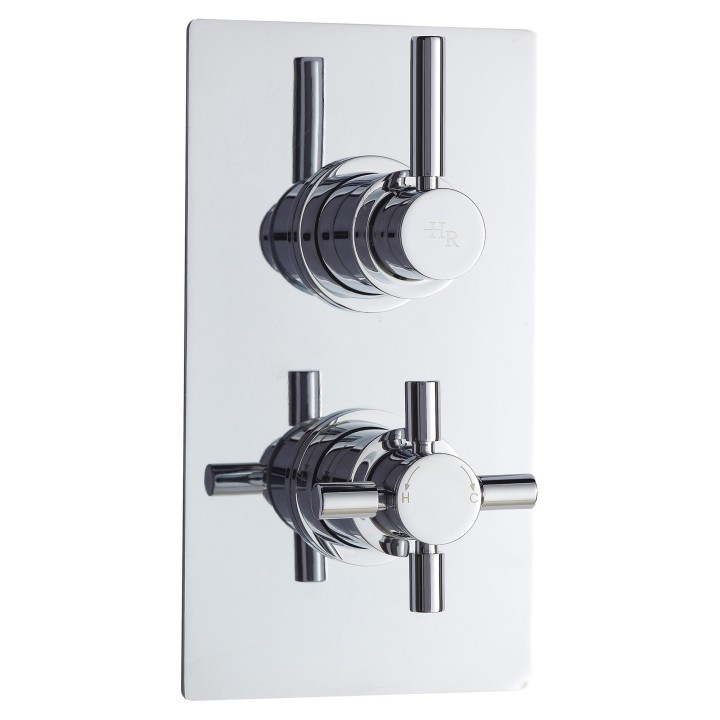

    Tec Pura Twin Valve with Built In Diverter
  • search

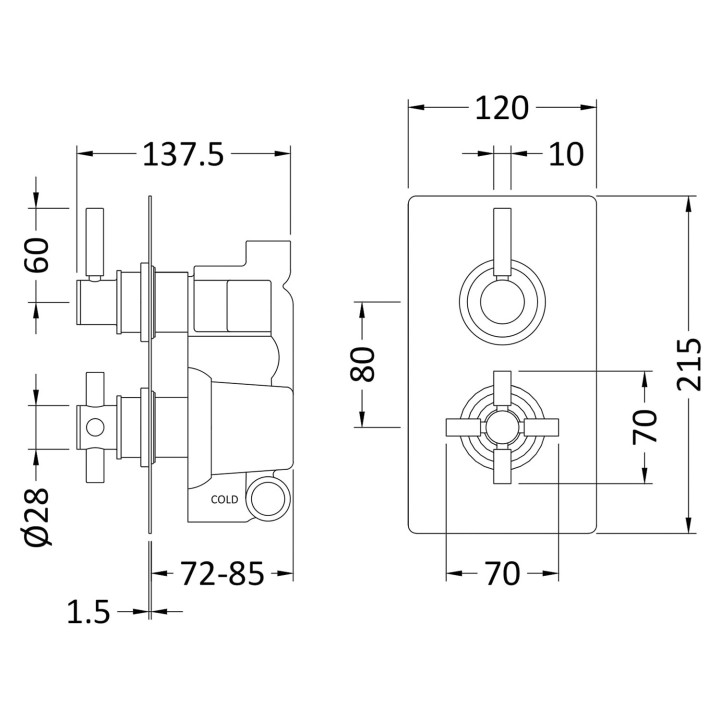

    Tec Pura Twin Valve with Built In Diverter - Technical Drawing
  • Tec Pura Twin Valve with Built In Diverter
  • Tec Pura Twin Valve with Built In Diverter - Technical Drawing
£280.00
VAT included
local_shipping If you order before 2pm your order will be delivered FREE between Monday, 23rd June - Wednesday, 25th June
Dimensions
Width (mm) 120mm
Height (mm) 215mm
Depth (mm) 137mm
Technical Specifications
Operating Pressure 0.5
Flow Rate at 0.5 Bar 13 L/min
Flow Rate at 1 Bar 17 L/min
Flow Rate at 2 Bar 24 L/min
Flow Rate at 3 Bar 27 L/min
Design & Appearance
Design Tec
Outer Finish Chrome
Colour Family Chrome
Finish Chrome
Certifications & Standards
Made In UK Yes
Other Information
Cartridge Type 1/4 Turn
Brand
Brand Hudson Reed Hudson Reed
EAN13 5055146136200
Description
  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
  • In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
