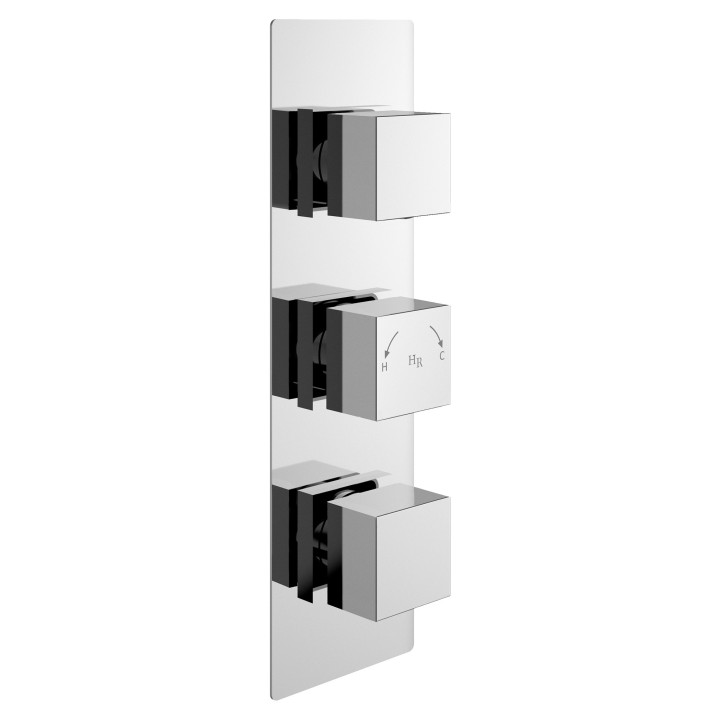

Chrome Square Triple Concealed Thermostatic Shower Valve
Product Code:
NWT7925
Description
- Contemporary design with modern chrome finish
- Accurate flow control
- High quality internal brassware for long life
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- Fully reversible cartridge meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
Product Specifications
Everything you need to know about this product, from dimensions and installation to finish and performance.

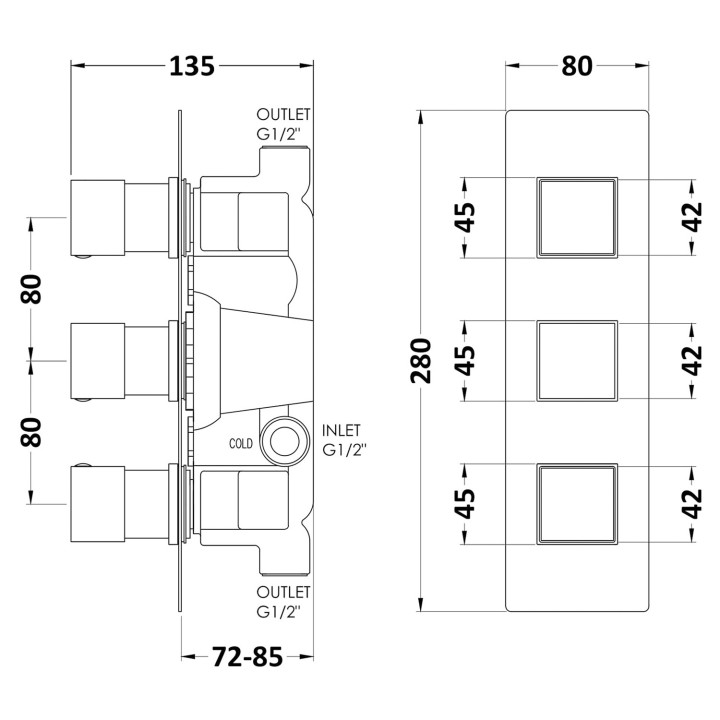

Dimensions
Width (mm)
80mm
Height (mm)
280mm
Depth (mm)
136mm
Technical Specifications
Operating Pressure
0.1
Flow Rate at 0.1 Bar
5.5 L/min
Flow Rate at 0.5 Bar
14 L/min
Flow Rate at 1 Bar
20 L/min
Flow Rate at 2 Bar
29 L/min
Flow Rate at 3 Bar
44 L/min
Design & Appearance
Outer Finish
Chrome
Colour Family
Chrome
Finish
Chrome
Certifications & Standards
WRAS Approved
Yes
WRAS Approval Number
1703023
TMV2 Approved
Yes
TMV2 Approval Number
Bc 1875 00817
TMV3 Approval Number
Nsf 1938 1217
TMV3 Approved
Yes
Other Information
Cartridge Type
1/4 Turn
Brand & Product Codes
Hudson Reed
Files & Downloads
Installation guides, technical sheets and supporting product documents.
