Name: Revolution Chrome Twin Concealed Thermostatic Shower Valve with Diverter
Brand: Hudson Reed
SKU: NWT7928
Price: 309 GBP
Availability: InStock

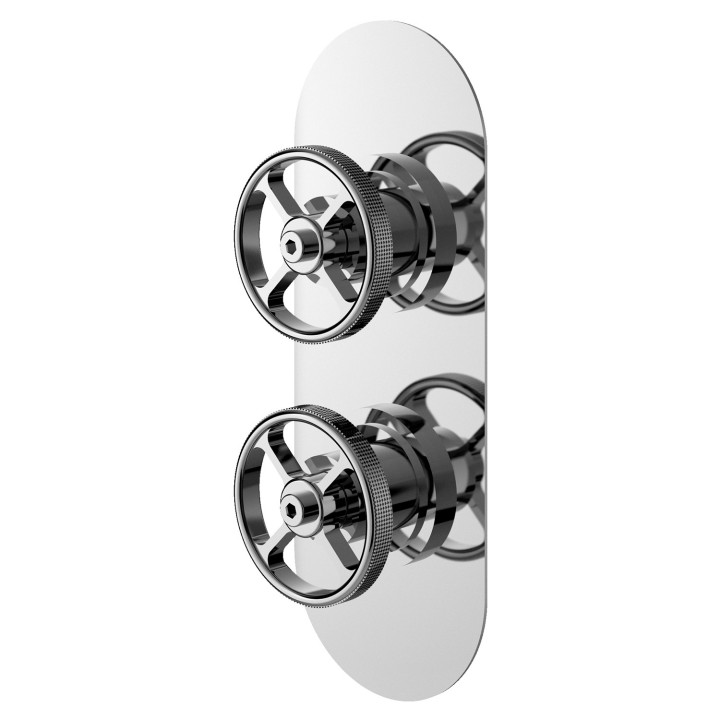

Revolution Chrome Twin Concealed Thermostatic Shower Valve

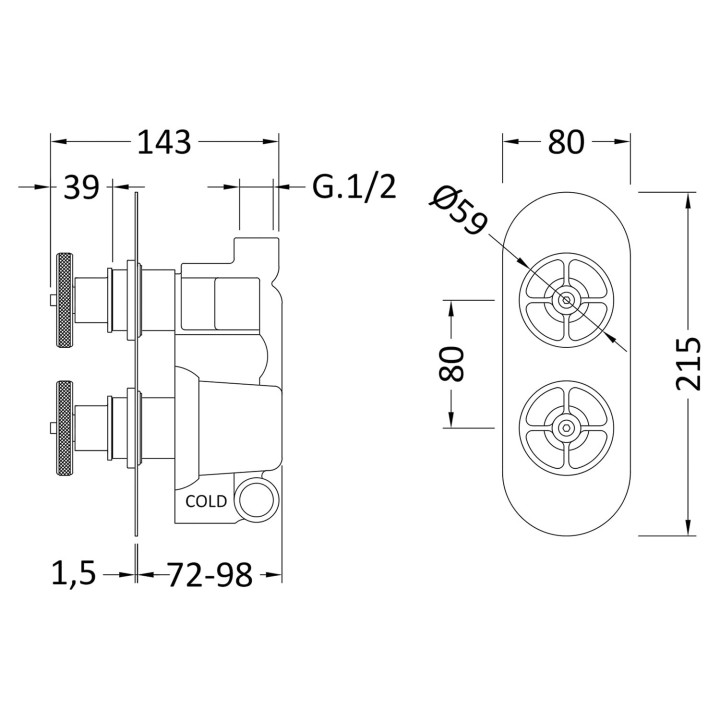

Revolution Chrome Twin Concealed Thermostatic Shower Valve - Technical Drawing

£309.00

VAT included

In stock

Ready to dispatch

Secure checkout

VAT included

Easy returns

local_shipping

Free Delivery

Order before 2PM arrow_right_altDelivered between Tuesday, 27th October - Thursday, 29th October

Description

Industrial design with stunning chrome finish
Suitable for use with all systems: gravity fed pumped unvented high pressure of fully modulated combi-boilers
Accurate flow control
Excellent flow rates
High quality internal brassware

Product Specifications

Everything you need to know about this product, from dimensions and installation to finish and performance.

Dimensions

Width (mm) 80mm

Height (mm) 215mm

Depth (mm) 143mm

Technical Specifications

Operating Pressure 0.5

Flow Rate at 0.1 Bar N/A L/min

Flow Rate at 0.5 Bar 13 L/min

Flow Rate at 1 Bar 17 L/min

Flow Rate at 2 Bar 24 L/min

Flow Rate at 3 Bar 27 L/min

Design & Appearance

Design Revolution

Outer Finish Chrome

Colour Family Chrome

Finish Chrome

Other Information

Cartridge Type 1/4 Turn

Brand & Product Codes

Manufacturer

Hudson Reed

Quick Code NWT7928

EAN13 5056211855149

Files & Downloads

Installation guides, technical sheets and supporting product documents.

picture_as_pdf

Product Datasheet

Technical

PDF

arrow_downward
