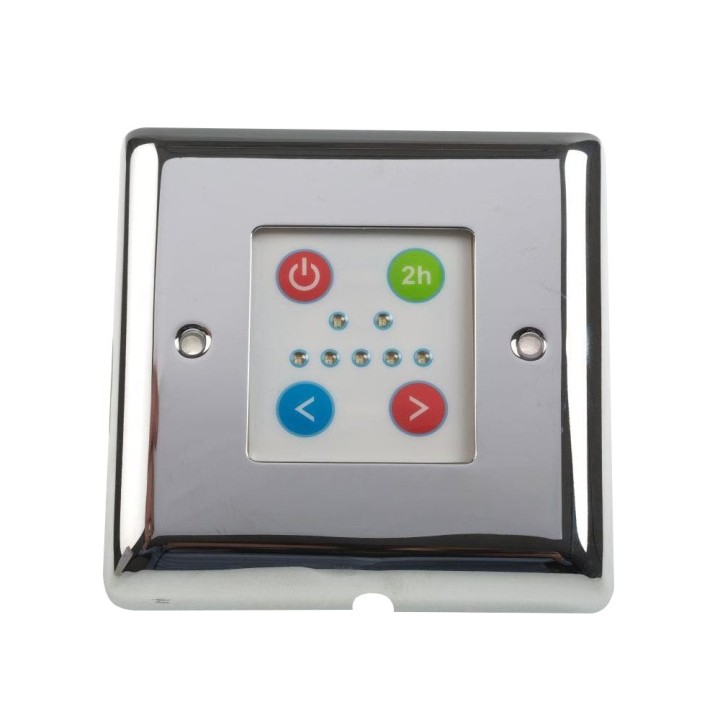

Chrome Wall Controller for Electric Towel Rails with Run-back Timer
Product Code:
NWT10760
This chrome thermostatic control plate allows for full control of a towel rail single heat electric element by wiring directly into this control plate.
The power on/off button activates the element.
Pressing the arrows adjusts the temperature up and down controlling the heat output of the electrical element in increment of 20%. The led lights light up to show the current output of the element. Easy to power on and off ensures that no power is wasted.
The 2 hour Boost button switches the element to full power for 2 hours, then reverts to previous setting. This unit fits a standard electrical back box IPX5 Rated A
Description
This chrome thermostatic control plate allows for full control of a towel rail single heat electric element by wiring directly into this control plate.
The power on/off button activates the element.
Pressing the arrows adjusts the temperature up and down controlling the heat output of the electrical element in increment of 20%. The led lights light up to show the current output of the element. Easy to power on and off ensures that no power is wasted.
The 2 hour Boost button switches the element to full power for 2 hours, then reverts to previous setting. This unit fits a standard electrical back box IPX5 Rated A
This product should be fitted by a competent person who can ensure compliance with IEE, Part P and local authority regulations. Ensure the main electrical circuit AND the fused spur are both isolated before fitting. It should also be fitted within the correct zone in the room. After fitting, ensure that the unit is sealed around all sides with a silicone sealant to prevent water ingress to the back of the unit.
The unit is only IP rated provided it is sealed to the wall and fitted into a standard 85mm pattress box with the correct depth.
1000w Max element size.
Product Specifications
Everything you need to know about this product, from dimensions and installation to finish and performance.
Dimensions
Width (mm)
85mm
Height (mm)
85mm
Depth (mm)
20mm
Technical Specifications
Voltage
230AC
IP Rating
IPX5
Design & Appearance
Outer Finish
Chrome
Colour Family
Chrome
Certifications & Standards
Guarantee
1 Year
Other Information
Please Note
Not compatible with PTC Type Elements
Brand & Product Codes
NWT Direct
Files & Downloads
