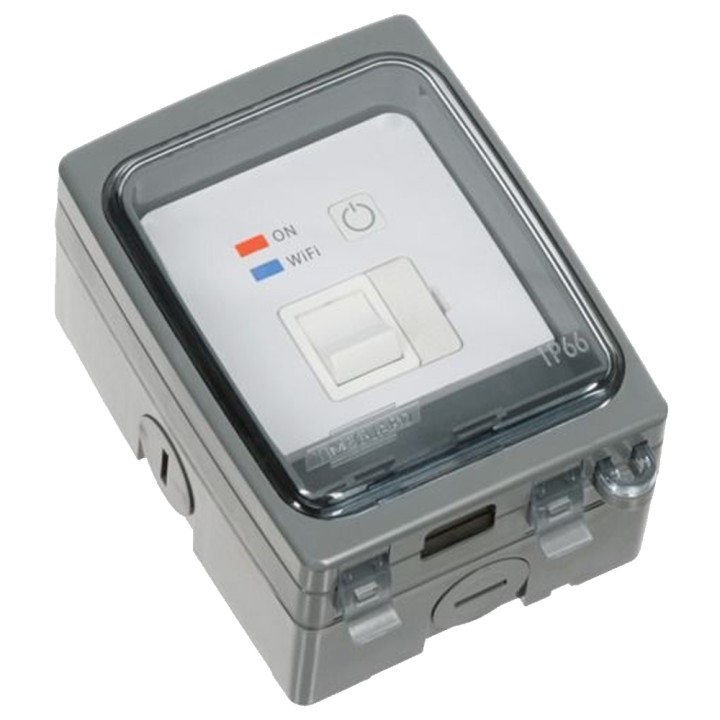

White "Wi-Fi" Controlled Switched Fused Spur with Outdoor IP66 Weathersafe Surround
NWT2571
White "Wi-Fi" enabled switched fused spur controller for all manner of electrical applications and appliances. Supplied with an outer Weathersafe IP66 Surround this is perfect for outside applications. Controlled from your mobile app you have full control over the use and cost of multiple devices.
local_shipping
If you order before 2pm your order will be delivered FREE on Friday, 22nd November
Data sheet
- Outer Finish
- White
- Design
- Wi-Fi
- Colour Family
- White
- Brand
- NWT Direct
Ideal for switching lighting and electrical heaters with a Weathersafe IP66 version FSTWIFITGV for outdoor uses. Programme settings are all activated via your mobile device, giving you access to control your installation at any time, no matter where you are. Total 13A 3kW control with confirmation of settings and switching status of the connected appliance via the on-screen app.
Energy saving control at your fingertips!

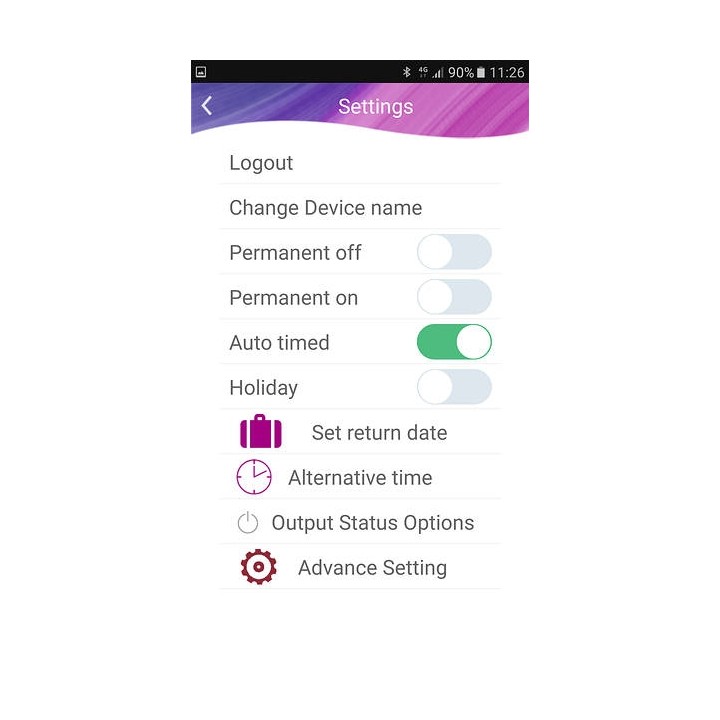

App Features
- Available for Android and IOS only.
- Works with WiFi and 4G.
- Can reduce running costs if unwanted programmes are cancelled.
- Supports multiple devices.
- Supports multiple users.
- Auto mode, with permanent ON, permanent OFF and holiday modes.
- Optional 1 and 2 hour boost.
- Advance function.
- Supports additional programme sets, for half terms, holidays and seasonal programmes.

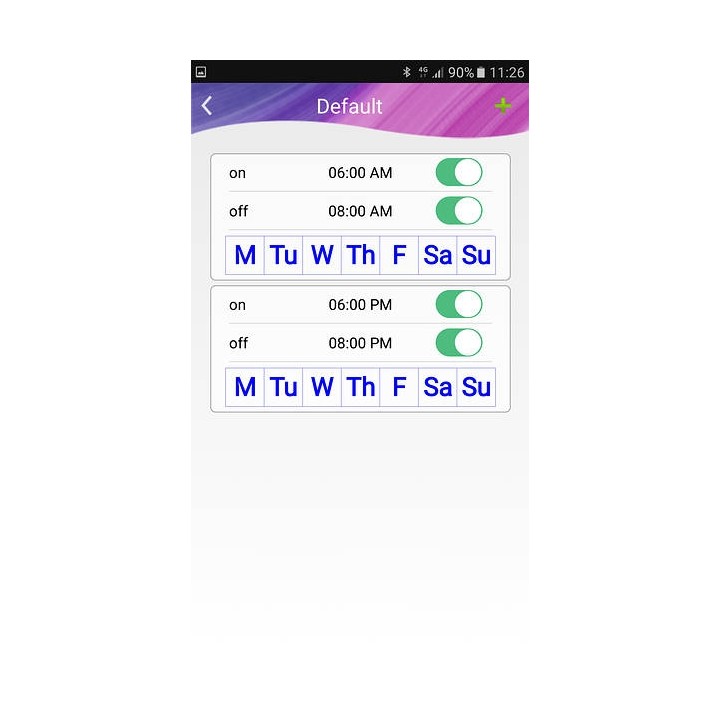

- 6 ON/OFF periods, with daily repeats.
- Positive ON/OFF status, with colour coded display.
- Graphic representation and summary of output.
- Automatic summer/winter changeover.
- IP66 Weatherproof
Technical Ratings
- Operating voltage 230V 50Hz.
- 13A rated suitable for 3kW: Immersion heaters, 5A inductive load, 1000W tungsten, 500W LED, 100W CFL and 500W Fluorescent.
- Manual override.
- Replaceable 13 Amp BS1362 fuse.
- Item pre-fitted into IP66 enclosure.
- Double pole isolating switch.
- Operating temperature 0 – 40°C.
SPECIFICATION
Timer Mode | Wi-Fi Controlled Fused Spur |
---|---|
App | Available for Android and IOS only, Works with WiFi and 4G. |
Operating Voltage | 230V AC |
Switch Rating 230V AC | 13A Resistive (3kW): Immersion heaters, 5A inductive load, 1000W tungsten, 500W LED, 100W CFL and 500W Fluorescent. |
Operating Temperature | 0 to 40ºC |
Fuse | Replaceable 13 Amp BS1362 fuse |
EC Directives | Conforms to Latest Directives |
Dimensions (mm) | Width 117, Height 142.5, Depth 75.5 |
