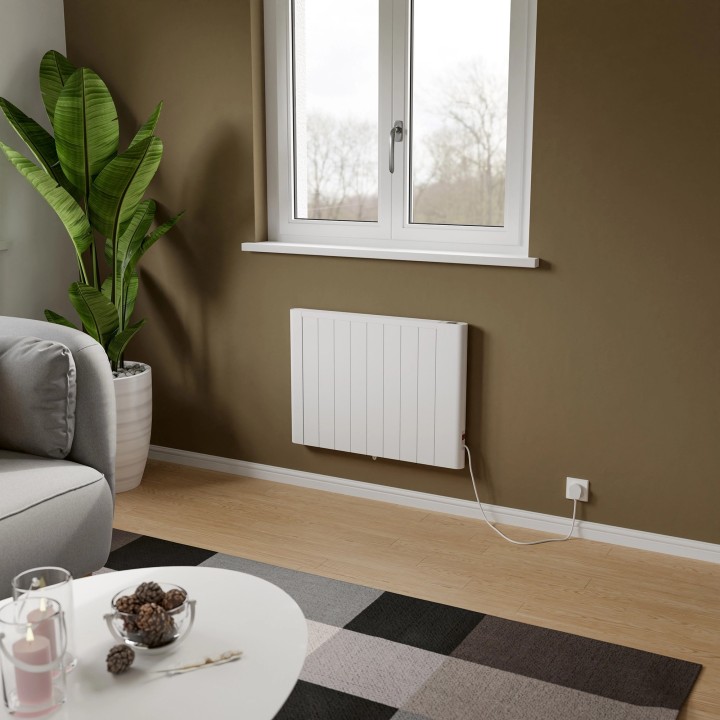

Name: Rhino White Electric Flat Panel Radiators with Smart Control - 590mm (w) x 580mm(h) - 900W
Brand: NWT Direct
SKU: NWT18489-122338
Price: 202 GBP
Availability: InStock

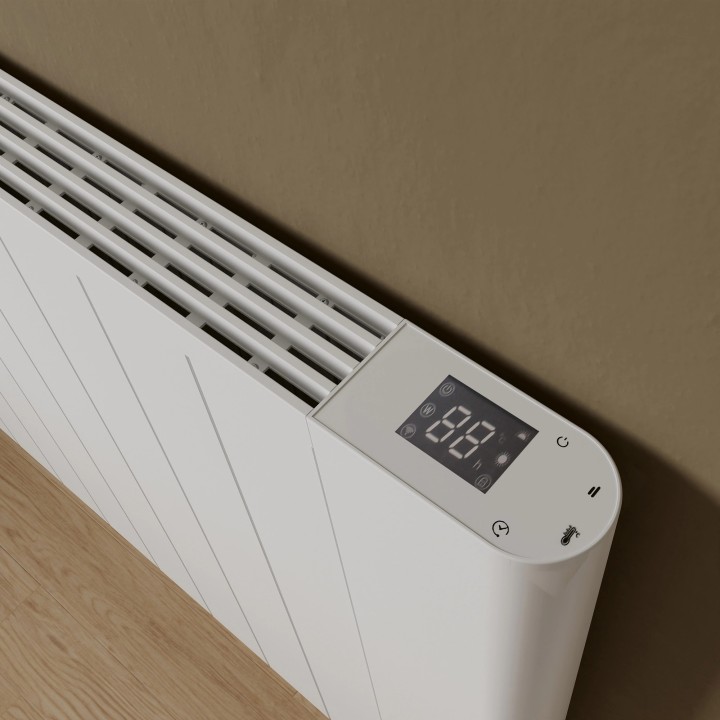

Rhino White Electric Flat Panel Radiator Control Panel - Closeup

Size

Selected: 590mm (w) x 580mm (h)

£202.00

VAT included

In stock

Ready to dispatch

Secure checkout

VAT included

Easy returns

local_shipping

Free Delivery

Order before 2PM arrow_right_altDelivered Friday, 23rd October

Description

Heating & Temperature Control

Temperature Setting Range: 7-30 °C
Operating Temperature Range: -10-40 °C
Surface Temperature Mode: LST (40-55 °C surface limit)
Control System: Electronic thermostat
Frost Protection: 7 °C antifreeze mode

Operating Modes & Functions

Comfort mode
Economy mode
Weekly programmable timer
Antifreeze mode
LST (Low Surface Temperature Mode)
Boost heating mode
Child lock
Holiday mode
Window opening detection
Ambient temperature compensation

Smart & Control Features

App control: Tuya Smart / Smart Life App
Connectivity: Wi-Fi 2.4 GHz
Frequency Range: 2400-2483.5 MHz
Transmission Power: ≤ 18.2 dBm
Remote Control: Yes
Weekly Programming via App: Yes

Safety Features

Overheat protection
Temperature sensor monitoring
Open window energy saving function
Electrical protection class I
Child safety lock

Product Specifications

Everything you need to know about this product, from dimensions and installation to finish and performance.

Dimensions

Width (mm) 590mm

Height (mm) 580mm

Projection 95mm

Technical Specifications

Output Watts 900W

Voltage AC 220-240 V

IP Rating IPX4

Design & Appearance

Outer Finish White Powder Coating

Colour Family White

Fixtures & Fittings

Accessories Feet Included

Brand & Product Codes

Manufacturer

NWT Direct

Quick Code NWT18489-122338

Files & Downloads

Installation guides, technical sheets and supporting product documents.

picture_as_pdf

Product Datasheet

Technical

PDF

arrow_downward

picture_as_pdf

Rhino Manual

Instruction Manual

PDF 794.58KB

arrow_downward

Reviews

Questions & Answers

Btu Calculator

This is a guide for reference only. Rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°.

Meters Feet

Length

Width

Height

Room Type

Wall Type

Window Type

Below the Room

Above the Room

Number of Outside Walls

BTUs Required

Watts Required
