Corgi Underfloor Heating Mats (1 to 10 Square Metre Grids Available)

NWT2019-38675
UFMAT010

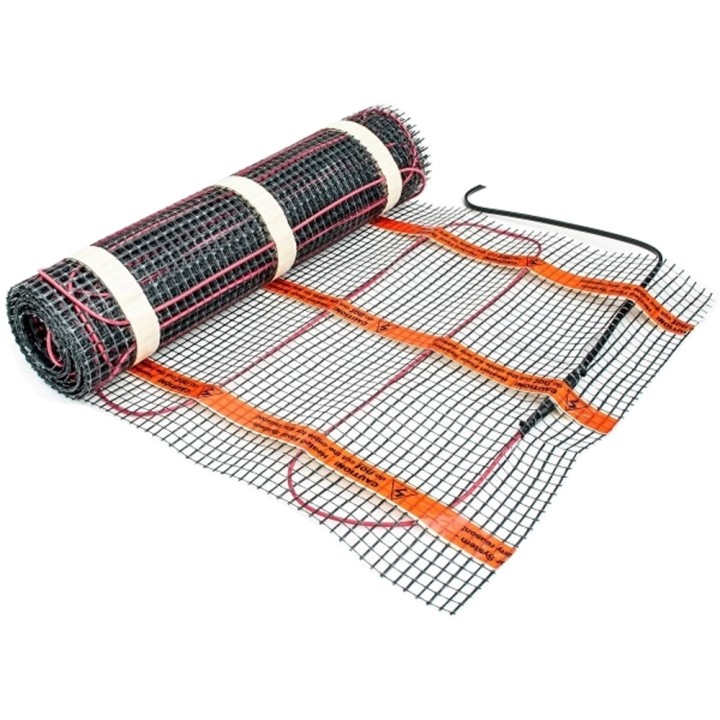

Corgi Underfloor Heating Mat
search
  • Corgi Underfloor Heating Mat

CORGI heating mats are perfect for providing luxurious underfloor heating beneath virtually any floor surface and are particularly well suited to installation in larger rooms. The mats can be installed directly beneath a tiled floor or almost any other floor covering if covered with a levelling compound first.

Choose Size:
Thermostat:
£54.00
VAT included
local_shipping Order now for FREE delivery on Tuesday, 2nd April due to the Bank Holiday.

Data sheet

Colour Family
Red
Brand
Corgi Corgi

CORGI heating mats are perfect for providing luxurious underfloor heating beneath virtually any floor surface and are particularly well suited to installation in larger rooms. The mats can be installed directly beneath a tiled floor or almost any other floor covering if covered with a levelling compound first. In well insulated rooms they are suitable for providing space heating and in other circumstances they will provide floor warming. A 300W/sqm system can provide full room heating in well insulated rooms on well insulated floor bases or floor heating in less well insulated rooms.


If the room or floor base the system is going to be installed on is poorly insulated we recommend installing a concrete faced thermal insulation board directly beneath the underfloor heating system. Insulation installed beneath a heating system will reduce the warm up time of the system and reduce running costs. Systems installed onto badly insulated floors may not meet your expectations. To comply with the latest regulations the thermal resistance between the heating system and the room must not have an insulation value higher than 0.125m²K/W.

  • Easy to install
  • Perfect for use under tiles, carpets, vinyl and laminate floors
  • Pre-spaced cable for even heating
  • The floor base must be firm, level, and free of dust, dirt and oil
  • Mix and matchable sizes
  • Constructed with a 3mm cable – extremely low build height
  • High power dual-conductor undertile heating mats
  • External power cable: Length >2m
  • All heating mats must be connected in parallel not in series!
  • Fully 17th Edition and Part L compliant
  • Ohms Value +/- 10%: 192 Ω
  • Approved to: EN 60335-1:1998, EN 60335-2-17:1999,IEC 60730
