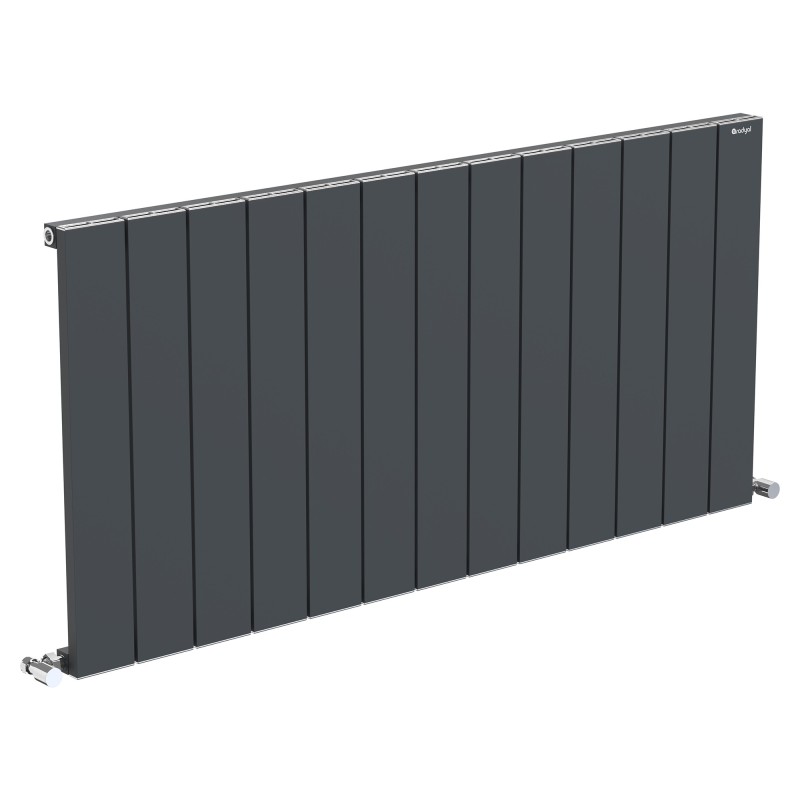

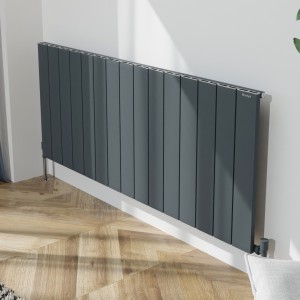

1230mm (w) x 600mm (h) Tower Single Panel Anthracite Horizontal Aluminium Radiator (13 Extrusions)
Product Code:
NWT17575

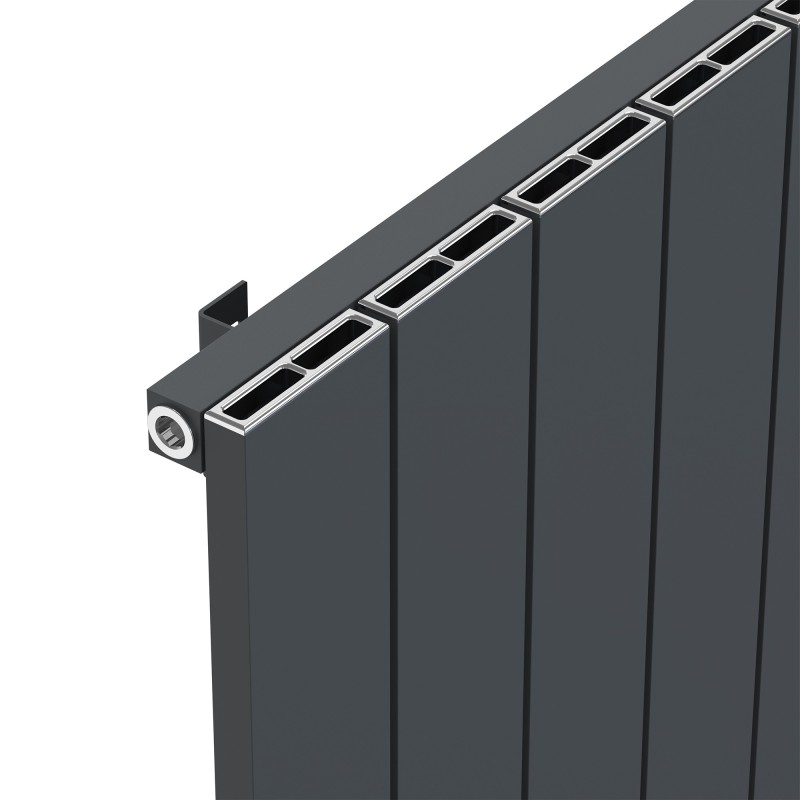

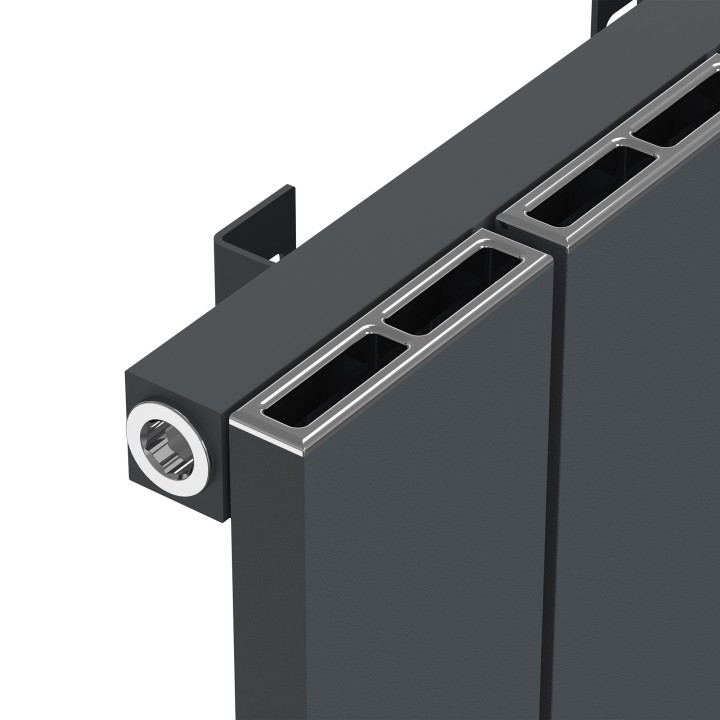

The Radyal Tower Single aluminium radiator is a sleek, modern design with 90mm wide extruded vertical sections for increased surface area and impressive heat outputs. The chrome tops provide an aesthetic contrast which can be matched to the colour of valves that you might choose.
Description
Why Buy This Radyal Designer Aluminium Radiator?
"The Tower Single aluminium radiator is a sleek, modern design with 90mm wide extruded vertical sections for increased surface area and impressive heat outputs."
Available in the following sizes:
- 660mm(w) x 600mm(h) Horizontal Tower (2445 BTUs)
- 850mm(w) x 600mm(h) Horizontal Tower (3141 BTUs)
- 1040mm(w) x 600mm(h) Horizontal Tower (3840 BTUs)
- 1230mm(w) x 600mm(h) Horizontal Tower (4539 BTUs)
- 1420mm(w) x 600mm(h) Horizontal Tower (5235 BTUs)
- 375mm(w) x 1800mm(h) Vertical Tower (3588 BTUs)
- 565mm(w) x 1800mm(h) Vertical Tower (5378 BTUs)
The Tower Radiators are available in a powder coated white, anthracite or black painted finish.
Product Description:
- The Radyal range of radiators are designed in house and manufactured at their impressive eco-friendly, modern factory.
- The high heat output of the radiators is achieved from the sourcing of highest quality aluminium, finished in a robust powder coated paint.
- All our heat output figures (BTU'S) are listed at Delta T50.`
- All our radiators are supplied with a wall mounting kit (including bleed valve and blank plugs)
- This radiator is supplied with a 10 year manufacturer guarantee. (Euronorm BS EN 442).
Product Specifications
Everything you need to know about this product, from dimensions and installation to finish and performance.

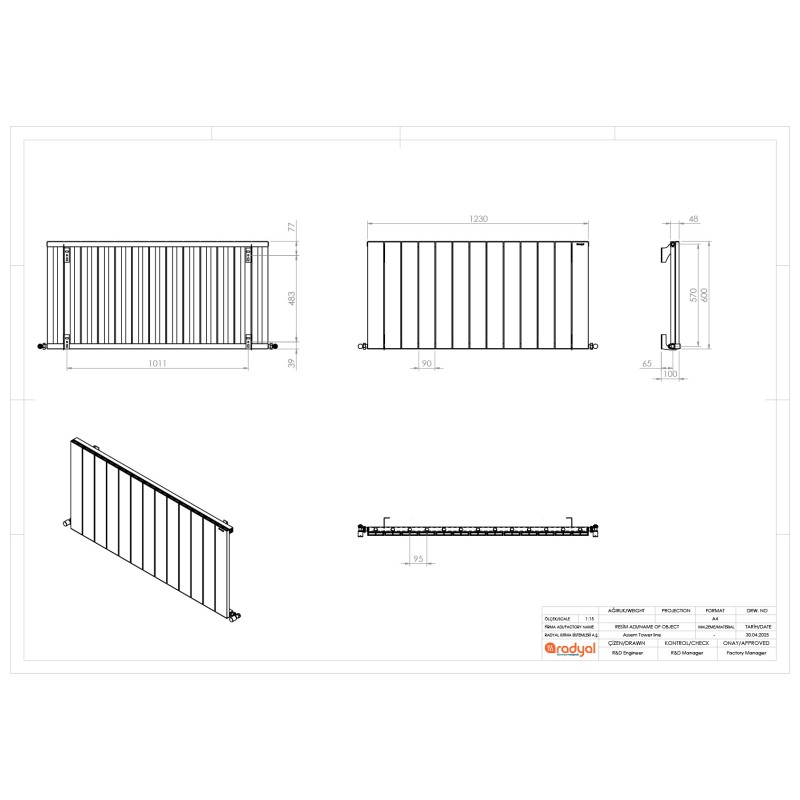

Dimensions
Width (mm)
1230mm
Height (mm)
600mm
Projection
100mm
Pipe Centres
1230mm plus valve widths
Socket Width
½ BSP (NOTE: Valves not Included)
Technical Specifications
Output BTUs
4539
Output Watts
1331
Maximum Operating Pressure
6 Bar
Fuel Type
Central Heating
Materials & Construction
Material
Aluminium
Design & Appearance
Design
Tower
Outer Finish
Anthracite Powder Coating
Colour Family
Gray
Tube Bar Pattern
13 Vertical Sections
Fixtures & Fittings
Fixing Kit
Four point wall fixings plus full instructions
Accessories
Wall Brackets, Bleed Valves & Blank Plug
Certifications & Standards
Guarantee
10 Years Euronorm BS EN 442
Brand & Product Codes
Radyal
Files & Downloads
Installation guides, technical sheets and supporting product documents.
You May Need
Below are some products that are suitable for your purchase. You may need to add these to your order.
In Stock
Anthracite Thermostatic Valves for Radiators & Towel Rails (Pair of Angled, Straight or Corner)
£42.50
-£3.00
From: £39.50
In Stock
In Stock
Reviews & Questions
Reviews
Questions & Answers
Btu Calculator
This is a guide for reference only. Rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°.
