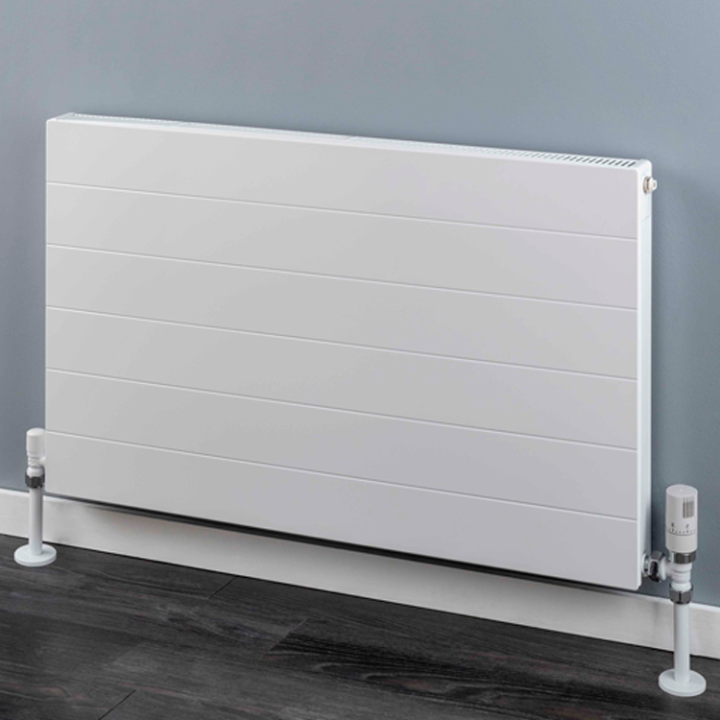

"Volta" Single Flat Panel Horizontal Radiators (17 Sizes)

Product Code: NWT3247-44348

In stock

"Volta" Single Flat Panel Horizontal Radiators (17 Sizes)

The Volta is a modern, flat panel radiator available in a wide range of sizes. It combines a contemporary look while still providing excellent heat outputs and value for money. The line detail on the front of the radiator compliments a variety of clean, linear roomsets.

Volta Sizes:

£166.00

VAT included

If you order before 2pm your order will be delivered FREE between Monday, 25th November - Tuesday, 26th November

Data sheet

Outer Finish: White Powder Coating
Height (mm): 400mm, 500mm, 600mm
Width (mm): 400mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm
Design: Volta
Colour Family: White
Material: Mild Steel
Output BTUs: 1115, 1300, 1675, 1849, 1952, 2231, 2275, 2313, 2600, 2777, 2791, 2927, 3252, 3351, 3575, 3903
Output Watts: 327 - 1334
Fixing Kit: 2 Wall brackets, Blank Plug & Bleed Valve
Guarantee: 10 Years Guarantee
Projection: 82 to 102mm
Pipe Centres: Width plus valves
Fuel Type: Central Heating
Brand: NWT Direct

Height	Width	Depth	Watts	Btu's
400	800	82-102	542	1849
400	1000	82-103	678	2313
400	1200	82-104	814	2777
500	400	82-105	327	1115
500	600	82-106	491	1675
500	800	82-107	654	2231
500	1000	82-108	818	2791
500	1200	82-109	982	3351
600	400	82-110	381	1300
600	600	82-111	572	1952
600	700	82-112	667	2275
600	800	82-113	762	2600
600	900	82-114	858	2927
600	1000	82-115	953	3252
600	1100	82-116	1048	3575
600	1200	82-117	1148	3903

"Volta" Horizontal Steel Flat Panel with a Single Convector

- RAL 9016 White powder coated finish
- Supplied with 2 Wall Brackets and 1 Manual Airvent
- Also available in double panel
- Manufactured and tested to ISO 9002, EN442

- BTUs listed at delta t50

Pipe centres left to right = Width plus valves
Pipe centres from wall = 48 to 68mm
Depth from wall = 82 to 102mm

Vulcan Horizontal Single Panel Sizes Chart:

£1,331.00

Pre-order

This is just a guide for reference only, rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°

Meters Feet

Length

Width

Height

Room Type

Wall Type

Window Type

Below the room?

Above the room?

Number of outside Walls

Btu's Required

Watts's Required
