Ultraheat "Visage" White Horizontal Aluminium Designer Radiators (22 Sizes)

NWT3035-42853
VSG607W
  • In Stock
  • Btus: 1796 - 10255
  • 526 - 3005 Watts
Ultraheat "Visage" White Horizontal Aluminium Designer Radiators (22 Sizes)
search
  • Ultraheat "Visage" White Horizontal Aluminium Designer Radiators (22 Sizes)
  • Ultraheat "Visage" White Horizontal Aluminium Designer Radiators (22 Sizes)

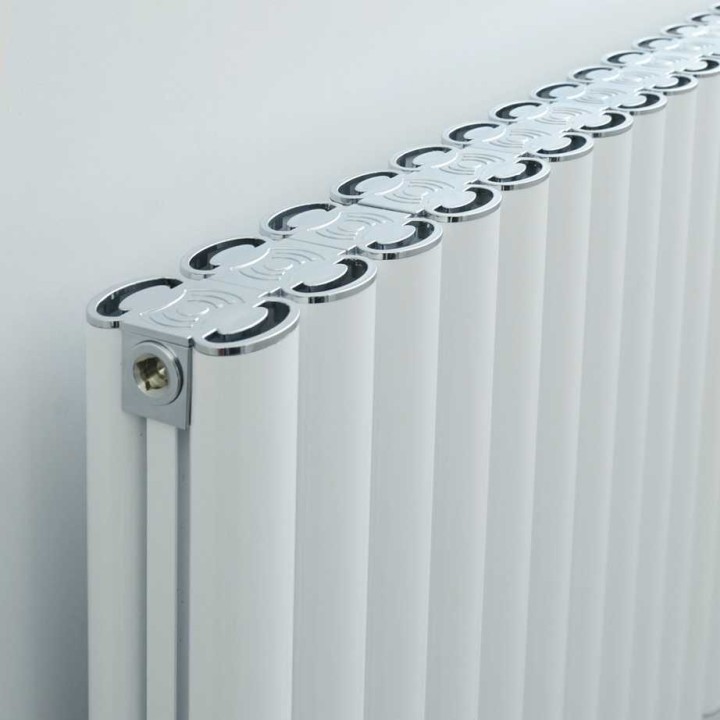

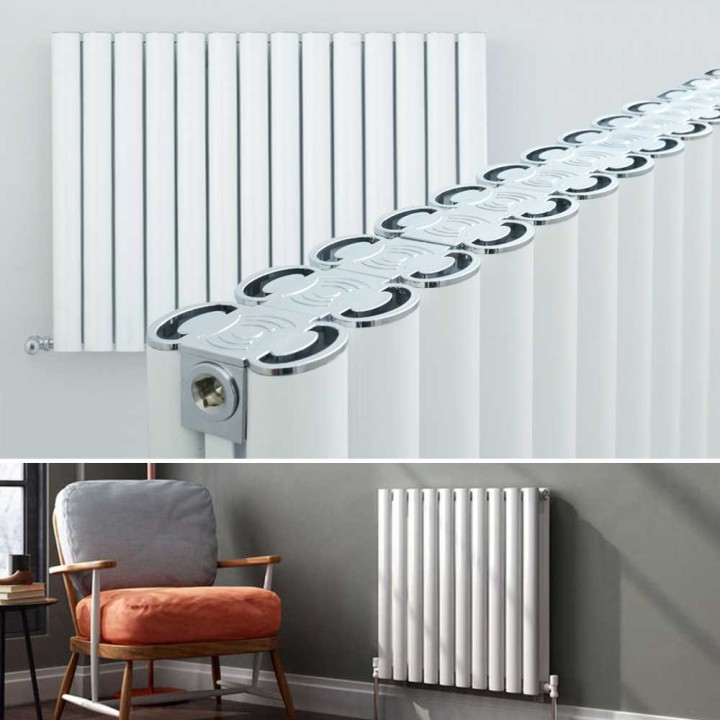

The large double tubed, rounded sections of the Visage white aluminium radiator fit seamlessly into a variety of roomsets in a modern, gloss white finish with chrome cap details. The radiator combines style with super impressive heat outputs due to the large surface area of the radiator. This contemporary radiator can be used throughout the home and will enhance any modern kitchen or living room. The wide range of available sizes makes this ideal for full house renovations.

Size
£241.00
VAT included
5% Checkout Discount on 3 or more Ultraheat Radiators or Towel Rails
local_shipping Order now for FREE delivery between Wednesday, 1st June - Thursday, 2nd June

Data sheet

Height (mm)
450mm, 600mm
Width (mm)
454mm, 695mm, 795mm, 895mm, 995mm, 1195mm, 1395mm, 1595mm, 1795mm, 1995mm
Depth (mm)
75mm
Outer Finish
White Powder Coating
Material
Aluminium
Design
Visage
Output BTUs
1796, 2141, 2309, 2725, 2821, 3114, 3504, 3589, 3893, 4101, 4617, 4672, 5129, 5450, 6154, 6229, 7008, 7178, 7786, 8206, 9231, 10255
Output Watts
526, 627, 677, 799, 827, 913, 1027, 1052, 1141, 1202, 1353, 1369, 1503, 1597, 1804, 1826, 2054, 2104, 2282, 2405, 2705, 3005
Tube Bar Pattern
See Description
Accessories
Supplied with Wall Brackets, Bleed Valve & Blank Plug
Guarantee
10 Years
Pipe Centres
(Side Entry) Width of Radiator plus Valves (Underside) 50mm
Socket Width
1/2" BSP
Pipe connection (mm)
Width of Radiator plus Valves
Brand
Ultraheat Ultraheat

Downloads

straighten Technical Drawing

"Visage" White Designer Horizontal Aluminium Radiators (22 Sizes)

The large double tubed, rounded sections of the Visage white aluminium radiator fit seamlessly into a variety of roomsets in a modern, gloss white finish with chrome cap details. The radiator combines style with super impressive heat outputs due to the large surface area of the radiator. This contemporary radiator can be used throughout the home and will enhance any modern kitchen or living room. The wide range of available sizes and impressive heat outputs makes this ideal for full house renovations.

RAL 9010 Max Working Pressure: 10 Bar 10 Year Guarantee
Product Code Height Length Depth Pipe Centers Wall to Face BTU's Watt's
VSG411W 450 545 75 50 - 635 97 2141 627
VSG414W 450 695 75 50 - 785 97 2725 798
VSG416W 450 795 75 50 - 885 97 3114 912
VSG418W 450 895 75 50 - 985 97 3504 1026
VSG420W 450 995 75 50 - 1085 97 3893 1140
VSG424W 450 1195 75 50 - 1285 97 4672 1368
VSG428W 450 1395 75 50 - 1485 97 5450 1596
VSG432W 450 1595 75 50 - 1685 97 6229 1824
VSG436W 450 1795 75 50 - 1885 97 7008 2052
VSG440W 450 1995 75 50 - 2085 97 7786 2280
VSG607W 600 345 75 50 - 435 97 1796 526
VSG609W 600 445 75 50 - 535 97 2309 676
VSG611W 600 545 75 50 - 635 97 2821 826
VSG614W 600 695 75 50 - 785 97 3589 1051
VSG616W 600 795 75 50 - 885 97 4101 1201
VSG618W 600 895 75 50 - 985 97 4617 1352
VSG620W 600 995 75 50 - 1085 97 5129 1502
VSG624W 600 1195 75 50 - 1285 97 6154 1802
VSG628W 600 1395 75 50 - 1485 97 7178 2102
VSG632W 600 1595 75 50 - 1685 97 8206 2403
VSG636W 600 1795 75 50 - 1885 97 9231 2703
VSG640W 600 1995 75 50 - 2085 97 10255 3003
  • Vertical Curved Panels
  • A choice of 22 models to suit your needs from 2141 BTU (627 Watts) up to 10255 BTU (3003 Watts)
  • High quality white coated finish
  • 10 year warranty
  • Built to last: 1.5mm thick aluminium for guaranteed quality
  • Tested to BS EN 442 Standards
  • ISO9001:2008 Registered Manufacturer
  • CE Marked

This is just a guide for reference only, rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°
