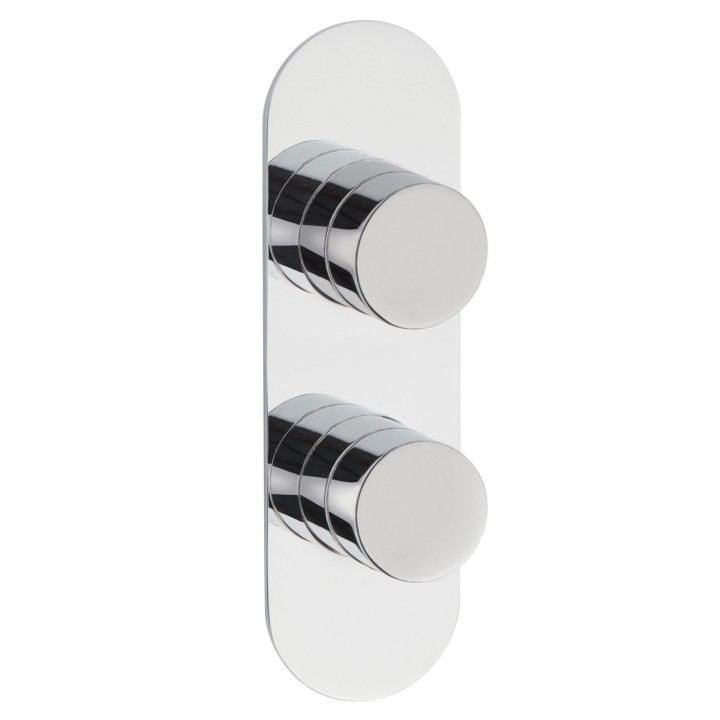

Indus Round Thermostatic Valve
Product Code:
NWT7879
Description
- Slimline design
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
- In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from high quality brass & ABS
Product Specifications
Everything you need to know about this product, from dimensions and installation to finish and performance.
Dimensions
Width (mm)
120mm
Height (mm)
215mm
Depth (mm)
135mm
Technical Specifications
Operating Pressure
0.1
Flow Rate at 0.1 Bar
5.5 L/min
Flow Rate at 0.5 Bar
14 L/min
Flow Rate at 1 Bar
20 L/min
Flow Rate at 2 Bar
29 L/min
Flow Rate at 3 Bar
44 L/min
Design & Appearance
Design
Indus
Outer Finish
Chrome
Colour Family
Chrome
Finish
Chrome
Certifications & Standards
Made In UK
Yes
WRAS Approved
Yes
WRAS Approval Number
1703023
TMV2 Approved
Yes
TMV2 Approval Number
Bc 1875 00817
TMV3 Approval Number
Nsf 1938 1217
TMV3 Approved
Yes
Other Information
Cartridge Type
1/4 Turn
Brand & Product Codes
Hudson Reed
