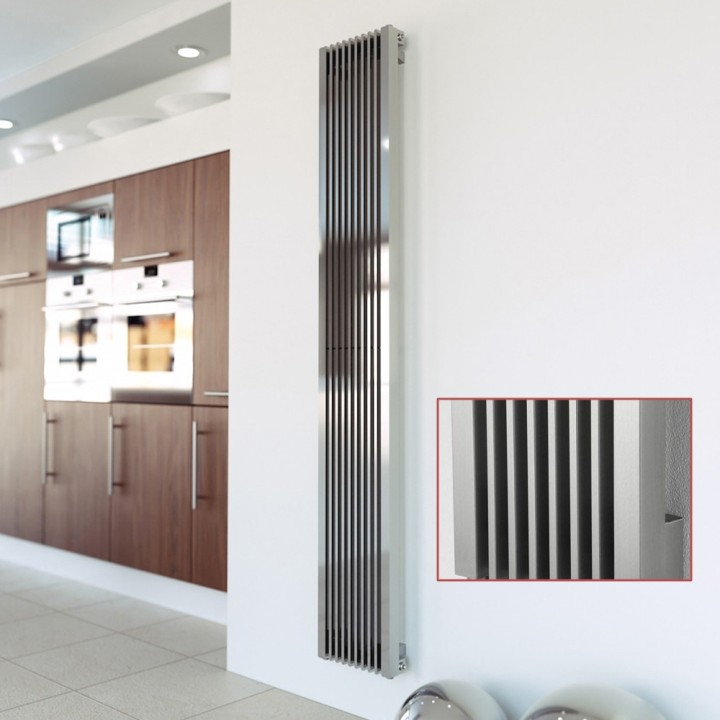

Aeon "Stria" Designer Brushed Stainless Steel Radiator (11 Sizes)
Make the kitchen, the hub of your home, warm and cosy with the Stria radiator. The Stria is a beautifully designed stainless-steel heating solution that sits elegantly against the wall emitting a welcoming heat.
Data sheet
- Outer Finish
- Brushed Stainless Steel
- Height (mm)
- 1000mm, 1800mm, 2000mm
- Width (mm)
- 220mm, 330mm, 440mm, 550mm, 660mm
- Depth (mm)
- 70mm
- Design
- Stria
- Colour Family
- Brushed Stainless
- Material
- Stainless Steel (Grade 304)
- Output BTUs
- 3832, 4310, 4761, 5328, 5356, 5690, 6401, 7548, 8491, 9407, 10582
- Output Watts
- 1122, 1262, 1394, 1560, 1568, 1666, 1874, 2210, 2486, 2754, 3098
- Guarantee
- 20 Years
- Projection
- 95mm - 110mm
- Pipe Centres
- Underside: Width less 30mm, Side: Width plus Valves
- Socket Width
- 1/2" BSP
- Fuel Type
- Central Heating
- Brand
- Aeon Radiators
Why is an AEON Radiator the pinnacle of Sculptural Heating?
With a wealth of experience in the manufacture of reliable heating solutions the Aeon range takes this to a whole new level of unrivalled performance and beauty. The striking collection has been created, crafted and hand-finished by experts, using only the finest quality materials available.
Stria | Max Working Pressure: 10 Bar | 20 Year Guarantee | |||||
Product Code | Height | Length | Depth | Wall to Pipe Centre | Wall to Face | BTU's | Watt's |
STR1020 | 1000 | 525 | 70 | 495 - 615 | 75 - 90 | 5328 | 1560 |
STR1808 | 1800 | 225 | 70 | 195 | 75 - 90 | 3832 | 1122 |
STR1810 | 1800 | 275 | 70 | 245 - 365 | 75 - 90 | 4761 | 1394 |
STR1812 | 1800 | 325 | 70 | 295 - 415 | 75 - 90 | 5690 | 1666 |
STR1816 | 1800 | 425 | 70 | 395 - 515 | 75 - 90 | 7548 | 2210 |
STR1820 | 1800 | 525 | 70 | 495 - 615 | 75 - 90 | 9407 | 2754 |
STR2008 | 2000 | 225 | 70 | 195 | 75 - 90 | 4310 | 1262 |
STR2010 | 2000 | 275 | 70 | 245 - 365 | 75 - 90 | 5356 | 1568 |
STR2012 | 2000 | 325 | 70 | 295 - 415 | 75 - 90 | 6401 | 1874 |
STR2016 | 2000 | 425 | 70 | 395 - 515 | 75 - 90 | 8491 | 2486 |
STR2020 | 2000 | 525 | 70 | 495 - 615 | 75 - 90 | 10582 | 3098 |
Quality & Performance:
- Manufactured from 100% Stainless Steel.
- All products tested to EN442, the harmonised European Standard.
- Tested to 10 bar of Pressure.
- BTU heat outputs certified by HKL Laboratories of Stuttgart, Germany.
- High Quality Stainless Steel Grade 304
- BS Kitemark.
- 20 Year Manufacturer Guarantee.
- Standard 1/2" BSP threaded valve connections.
- Supplied with Brackets, Blanking Plugs, Airvents, Fixing Screws and Raw Plugs, Bleed Key.
Delivery:
- Your order will be delivered on a 2/3 day dedicated delivery service.
- All AEON stainless steel products boxed in specifically made wooden crates for additional safety during transportation.
Returns:
Please Note: Due to the bespoke nature of the AEON range of products any returns would be subject to a standard Restocking Fee.
Some of our other product ranges.
This is just a guide for reference only, rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°
