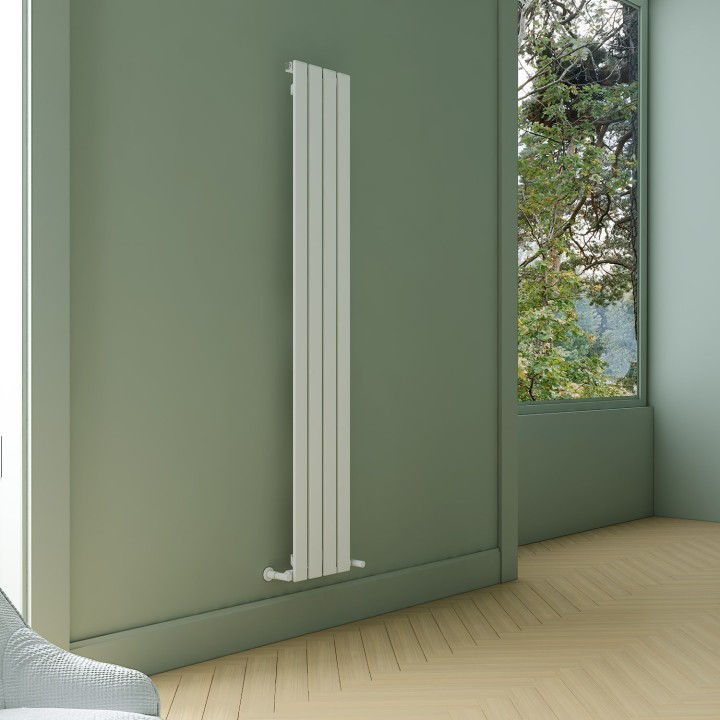

Carisa "Plata" Textured White Aluminium Vertical Designer Radiators (5 Sizes)

Product Code: NWT15746-69310

In stock

Size:

280mm (w) x 1800mm (h)
1841 BTU's (£339.00)
350mm (w) x 1800mm (h)
2302 BTU's (£404.00)
420mm (w) x 1800mm (h)
2762 BTU's (£480.00)
490mm (w) x 1800mm (h)
3222 BTU's (£556.00)
560mm (w) x 1800mm (h)
3683 BTU's (£632.00)

£339.00

VAT included

Order now for FREE delivery on Tuesday, 25th February

Data sheet

Outer Finish: Textured White
Height (mm): 1800mm
Width (mm): 280mm, 350mm, 420mm, 490mm, 560mm
Design: Plata
Colour Family: White
Material: Aluminium
Output BTUs: 1841, 2302, 2762, 3222, 3683
Output Watts: 540, 675, 810, 945, 1080
Accessories: Supplied with Bleed Valve & Blank Plug
Maximum Operating Pressure: 10 Bar
Guarantee: 5 Years
Projection: 81mm
Pipe Centres: 370mm, 440mm, 510mm, 580mm, 650mm
Socket Width: 1/2" BSP
Fuel Type: Central Heating
Wall to Centre of Tapping (mm): 55mm
Brand: Carisa Radiators
