Name: Tec Chrome Single Lever Side Action Basin Mixer Tap
Brand: Hudson Reed
SKU: NWT7823
Price: 115 GBP
Availability: InStock

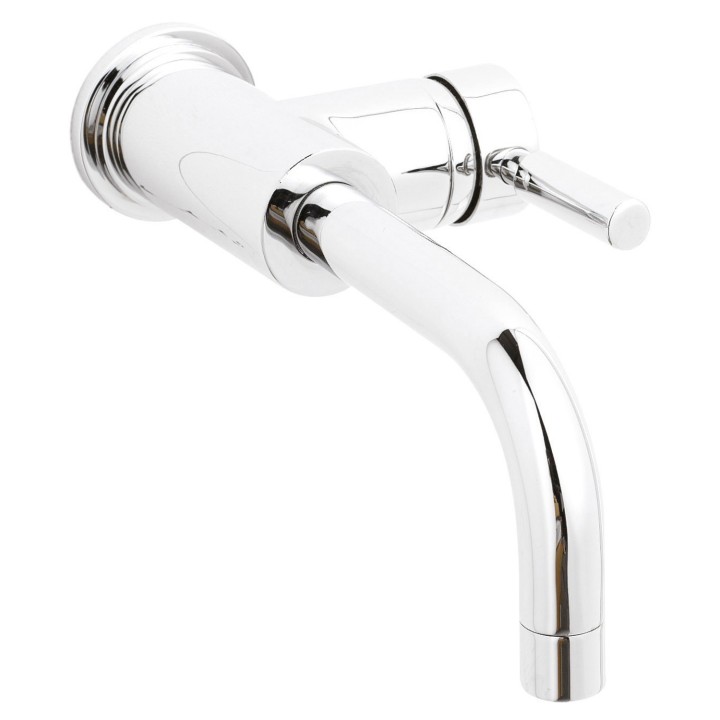

Tec Single Lever Side Action Basin Mixer

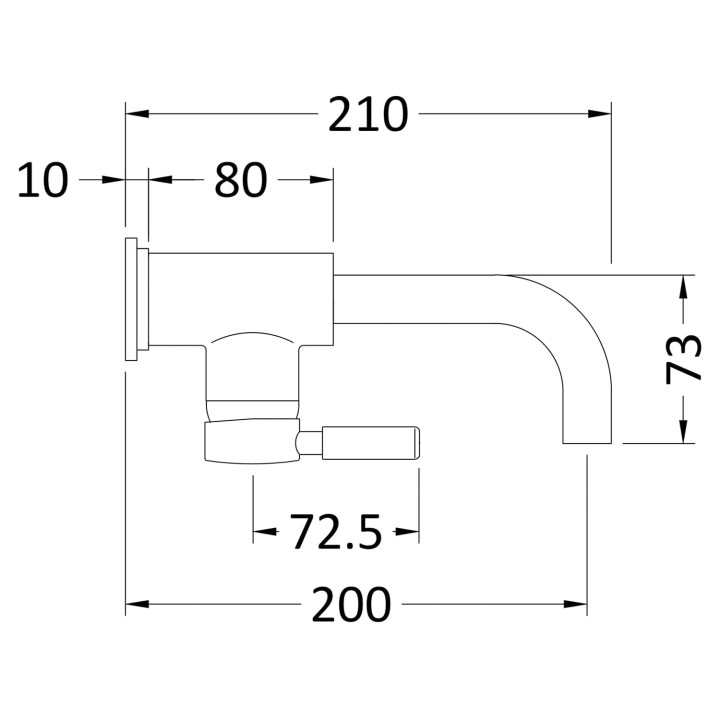

Tec Single Lever Side Action Basin Mixer - Technical Drawing

£115.00

VAT included

In stock

Ready to dispatch

Secure checkout

VAT included

Easy returns

local_shipping

Free Delivery

Order before 2PM arrow_right_altDelivered between Thursday, 22nd October - Monday, 26th October

Description

Ease of use without compromising on design
Side action design
Ceramic disc technology for long life and smooth operation
High quality brass internals with luxury chrome finish

Product Specifications

Everything you need to know about this product, from dimensions and installation to finish and performance.

Dimensions

Width (mm) 55mm

Height (mm) 78mm

Depth (mm) 210mm

Technical Specifications

Operating Pressure 0.1

Flow Rate at 0.1 Bar 6 L/min

Flow Rate at 0.5 Bar 9 L/min

Flow Rate at 1 Bar 11 L/min

Flow Rate at 2 Bar 16 L/min

Flow Rate at 3 Bar 19 L/min

Design & Appearance

Design Tec

Outer Finish Chrome

Colour Family Chrome

Finish Chrome

Fixtures & Fittings

Tap Holes Required 1

Other Information

Includes Waste No

Cartridge Type Single

Brand & Product Codes

Manufacturer

Hudson Reed

Quick Code NWT7823

EAN13 5055146151937

Files & Downloads

Installation guides, technical sheets and supporting product documents.

picture_as_pdf

Product Datasheet

Technical

PDF

arrow_downward
