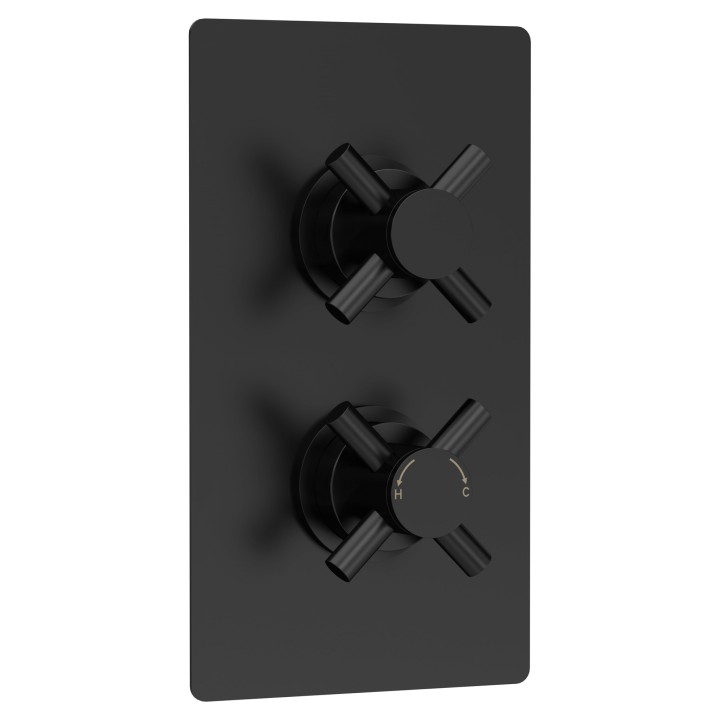

Tec Crosshead Matt Black Twin Thermostatic Shower Valve
Product Code:
NWT10418
Description
- Minimalist sleek design
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
- In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from high quality brass & ABS
Product Specifications
Everything you need to know about this product, from dimensions and installation to finish and performance.

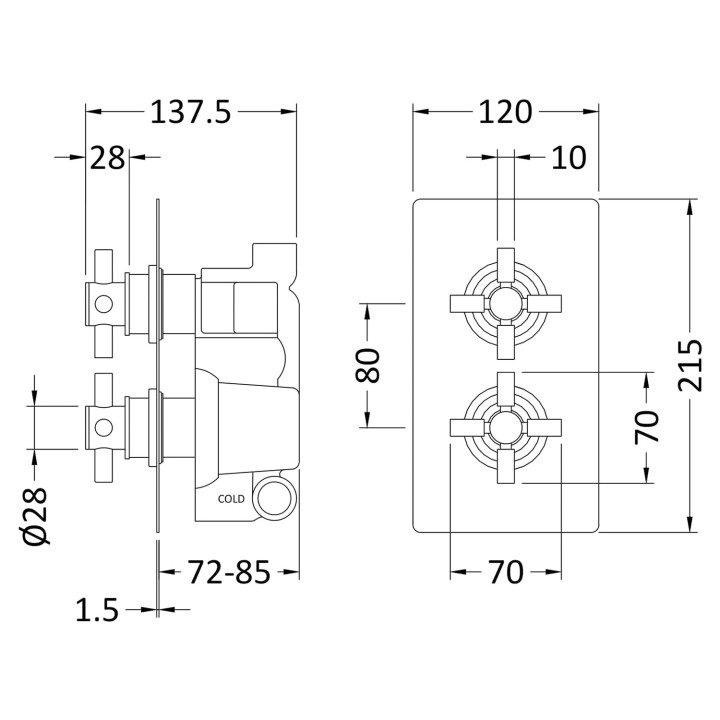

Dimensions
Width (mm)
120mm
Height (mm)
215mm
Depth (mm)
138mm
Technical Specifications
Operating Pressure
0.1
Flow Rate - 0.1 Bar
5.5
Flow Rate - 0.5 Bar
14
Flow Rate - 1 Bar
20
Flow Rate - 2 Bar
29
Flow Rate - 3 Bar
44
Design & Appearance
Design
Tec Crosshead
Outer Finish
Matt Black
Colour Family
Black
Range
Tec Crosshead
Fixtures & Fittings
Valve/Cartridge Type
1/4 Turn
Certifications & Standards
Guarantee
3 Years
Made In UK
Yes
WRAS Approved
Yes
WRAS Approval Number
1703023
TMV2 Approved
Yes
TMV2 Approval Number
Bc 1875 00817
TMV3 Approval Number
Nsf 1938 1217
TMV3 Approved
Yes
Other Information
Weight
4.68 KG
Brand & Product Codes
Hudson Reed
Files & Downloads
Installation guides, technical sheets and supporting product documents.
