"Windon" Twin Thermostatic Shower Valve

NWT6351
Windon Twin Thermostatic Shower Valve
search

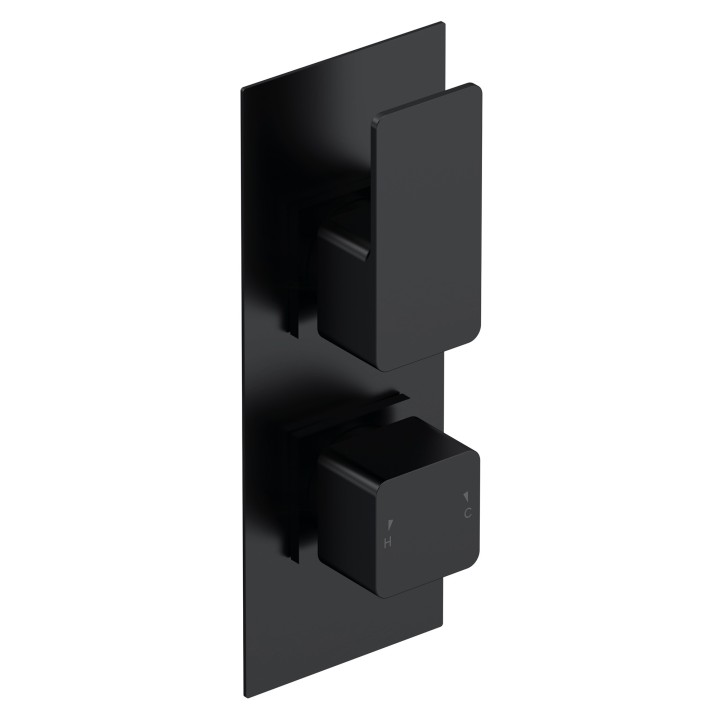

  • Windon Twin Thermostatic Shower Valve

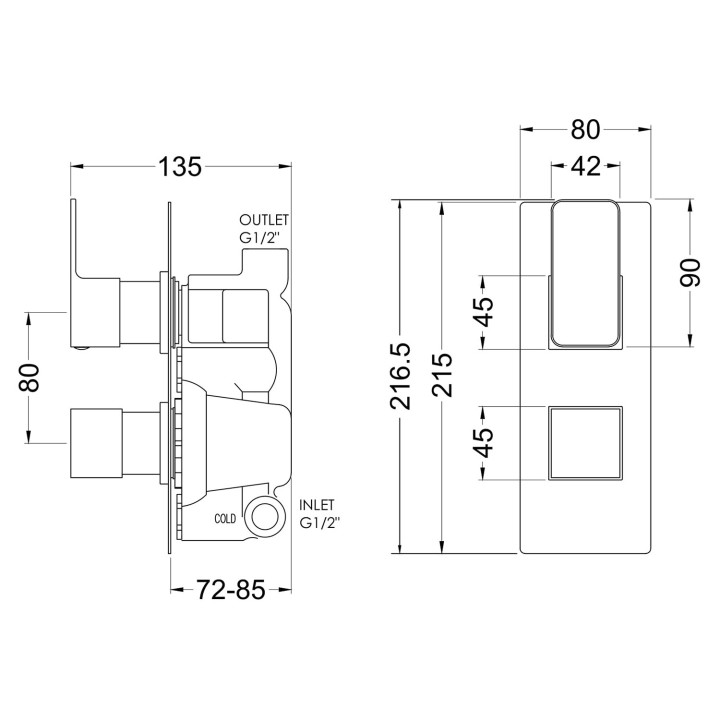

  • Windon Twin Thermostatic Shower Valve - Technical Drawing
£254.00
VAT included
local_shipping If you order before 2pm your order will be delivered FREE between Tuesday, 26th November - Thursday, 28th November

Data sheet

Outer Finish
Matt Black
Height (mm)
215mm
Width (mm)
120mm
Depth (mm)
135mm
Design
Windon
Colour Family
Black
Includes Waste
No
Operating Pressure
0.1
Cartridge Type
1/4 Turn
Flow Rate at 0.1 Bar
5.5 L/min
Flow Rate at 0.5 Bar
14 L/min
Flow Rate at 1 Bar
20 L/min
Flow Rate at 2 Bar
29 L/min
Flow Rate at 3 Bar
44 L/min
WRAS Approved
Yes
WRAS Approval Number
1703023
TMV2 Approved
Yes
TMV2 Approval Number
Bc 1875 00817
TMV3 Approval Number
Nsf 1938 1217
Brand
Nuie Nuie

  • Minimalist sleek design with matt black finish
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
