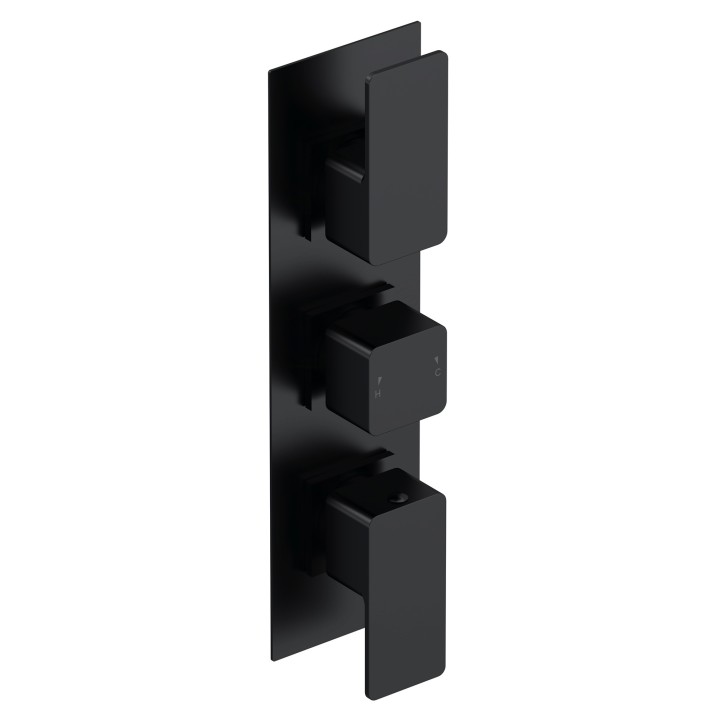

Windon Matt Black Triple Thermostatic Shower Valve With Diverter
Product Code:
NWT6354
Description
- Minimalist sleek design with matt black finish
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from solid brass
Product Specifications
Everything you need to know about this product, from dimensions and installation to finish and performance.

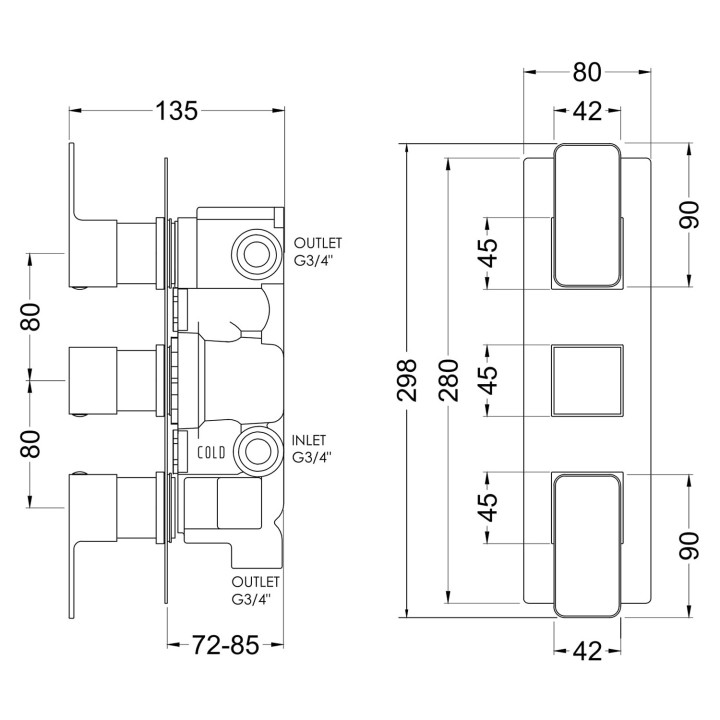

Dimensions
Width (mm)
80mm
Height (mm)
298mm
Depth (mm)
135mm
Technical Specifications
Operating Pressure
0.5
Flow Rate at 0.5 Bar
13 L/min
Flow Rate at 1 Bar
17 L/min
Flow Rate at 2 Bar
24 L/min
Flow Rate at 3 Bar
27 L/min
Design & Appearance
Design
Windon
Outer Finish
Matt Black
Colour Family
Black
Other Information
Includes Waste
No
Cartridge Type
1/4 Turn
Brand & Product Codes
Nuie
