"Windon" Brushed Brass Dual Thermostatic Shower Valve

NWT6374
WIN8TR02

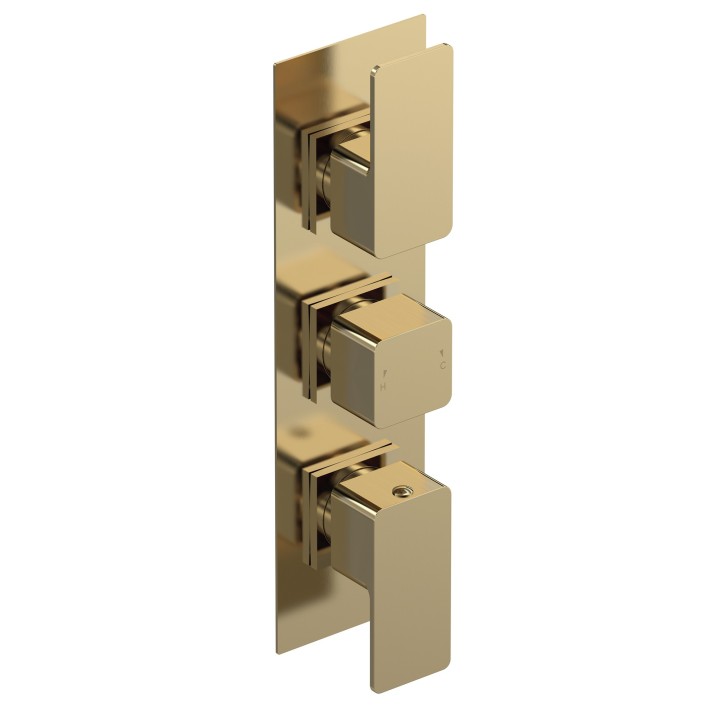

Windon Brushed Brass Dual Thermostatic Shower Valve
search
  • Windon Brushed Brass Dual Thermostatic Shower Valve

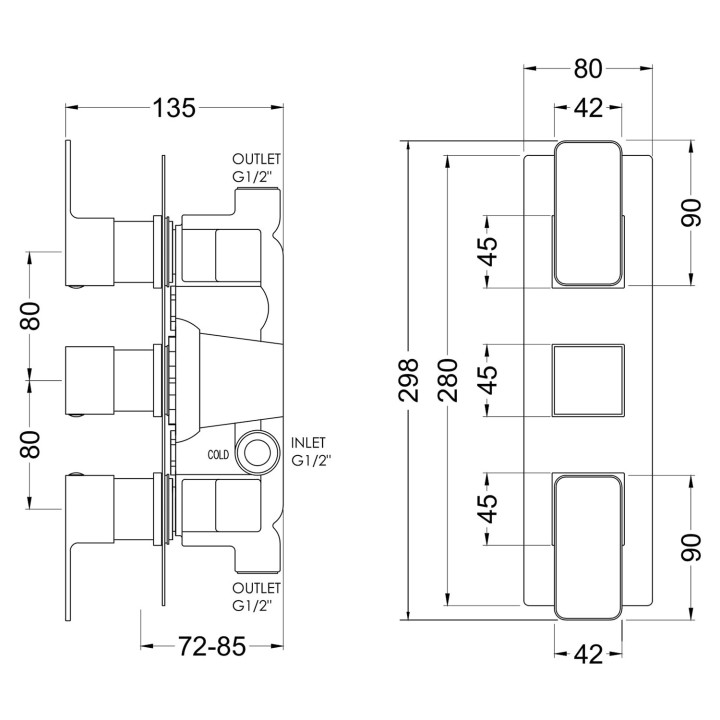

  • Windon Brushed Brass Dual Thermostatic Shower Valve - Technical Drawing
£295.00
VAT included
local_shipping Order now for FREE delivery between Wednesday, 3rd April - Friday, 5th April due to the Bank Holiday.

Data sheet

Outer Finish
Brushed Brass
Height (mm)
280mm
Width (mm)
120mm
Depth (mm)
135mm
Design
Windon
Colour Family
Brass
Includes Waste
No
Operating Pressure
0.1
Cartridge Type
1/4 Turn
Flow Rate at 0.1 Bar
5.5 L/min
Flow Rate at 0.5 Bar
14 L/min
Flow Rate at 1 Bar
20 L/min
Flow Rate at 2 Bar
29 L/min
Flow Rate at 3 Bar
44 L/min
WRAS Approved
Yes
WRAS Approval Number
1703023
TMV2 Approved
Yes
TMV2 Approval Number
Bc 1875 00817
TMV3 Approval Number
Nsf 1938 1217
Brand
Nuie Nuie

  • Minimalist sleek design with brushed brass finish
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
