Windon Brushed Brass Triple Thermostatic Shower Valve With Diverter

Product Code: NWT6375
event_available 6th October
  • search

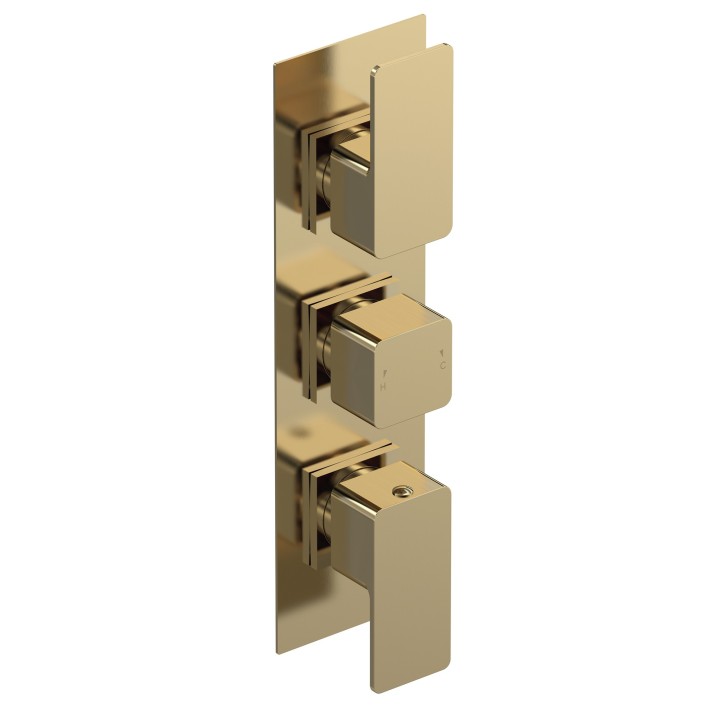

    Windon Brushed Brass Triple Thermostatic Shower Valve With Diverter
  • search

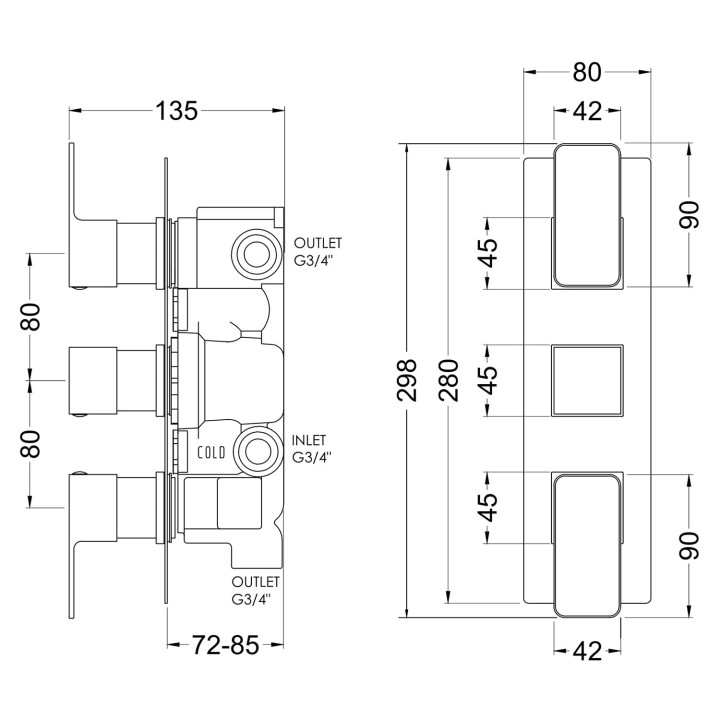

    Windon Brushed Brass Triple Thermostatic Shower Valve With Diverter - Technical Drawing
  • Windon Brushed Brass Triple Thermostatic Shower Valve With Diverter
  • Windon Brushed Brass Triple Thermostatic Shower Valve With Diverter - Technical Drawing
£327.00
VAT included
Your pre-order will be delivered when back in stock, which is currently due on Monday, 6th October
Dimensions
Width (mm) 120mm
Height (mm) 300mm
Depth (mm) 135mm
Technical Specifications
Operating Pressure 0.5
Flow Rate at 0.5 Bar 13 L/min
Flow Rate at 1 Bar 17 L/min
Flow Rate at 2 Bar 24 L/min
Flow Rate at 3 Bar 27 L/min
Design & Appearance
Design Windon
Outer Finish Brushed Brass
Colour Family Brass
Other Information
Includes Waste No
Cartridge Type 1/4 Turn
Brand
Brand Nuie Nuie
EAN13 5056462623160
Quick find code: NWT6375
Description
  • Minimalist sleek design with brushed brass finish
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from solid brass
