"Windon" Twin Thermostatic Valve - Brushed Pewter

NWT9636
Windon Twin Thermostatic Valve - Brushed Pewter
search

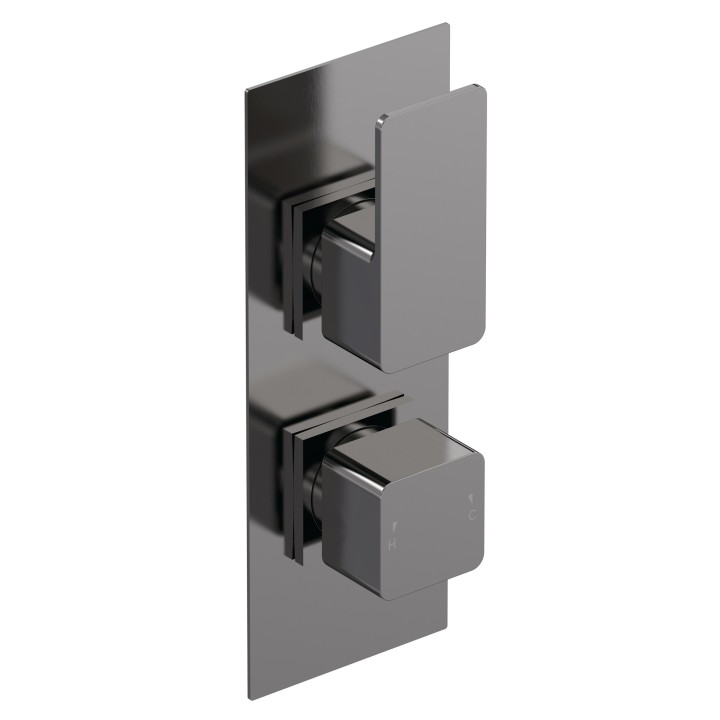

  • Windon Twin Thermostatic Valve - Brushed Pewter

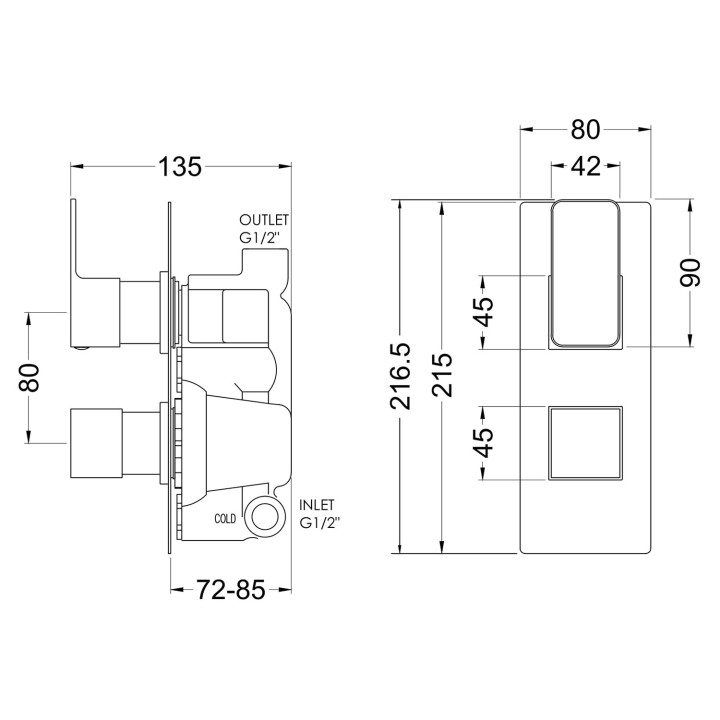

  • Windon Twin Thermostatic Valve - Brushed Pewter - Technical Drawing
£254.00
VAT included
local_shipping If you order before 2pm your order will be delivered FREE between Tuesday, 19th November - Thursday, 21st November

Data sheet

Outer Finish
Brushed Pewter
Height (mm)
215mm
Width (mm)
120mm
Depth (mm)
135mm
Colour Family
Brushed Finish
Guarantee
3 Years
Operating Pressure
0.1
WRAS Approved
Yes
WRAS Approval Number
1703023
TMV2 Approved
Yes
TMV2 Approval Number
Bc 1875 00817
TMV3 Approval Number
Nsf 1938 1217
Weight
2.57KG
Waste Included
No
Valve/Cartridge Type
1/4 Turn Ceramic Disc
Flow Rate - 0.1 Bar
5.5
Flow Rate - 0.5 Bar
14
Flow Rate - 1 Bar
20
Flow Rate - 2 Bar
29
Flow Rate - 3 Bar
44
Brand
Nuie Nuie

  • Minimalist sleek design with brushed pewter finish
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
