"Windon" Triple Thermostatic Valve With Diverter - Brushed Pewter

NWT9639
check_box In stock
  • search

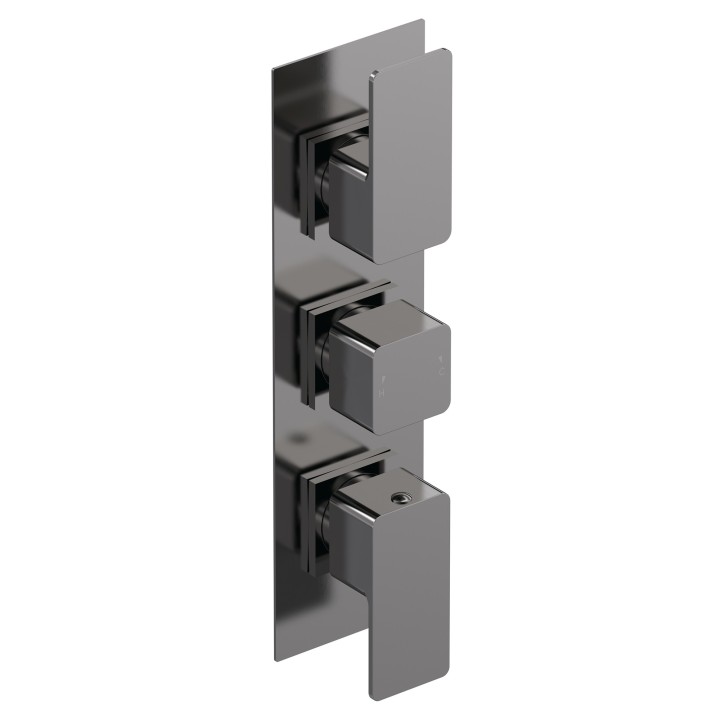

    Windon Triple Thermostatic Valve With Diverter - Brushed Pewter
  • search

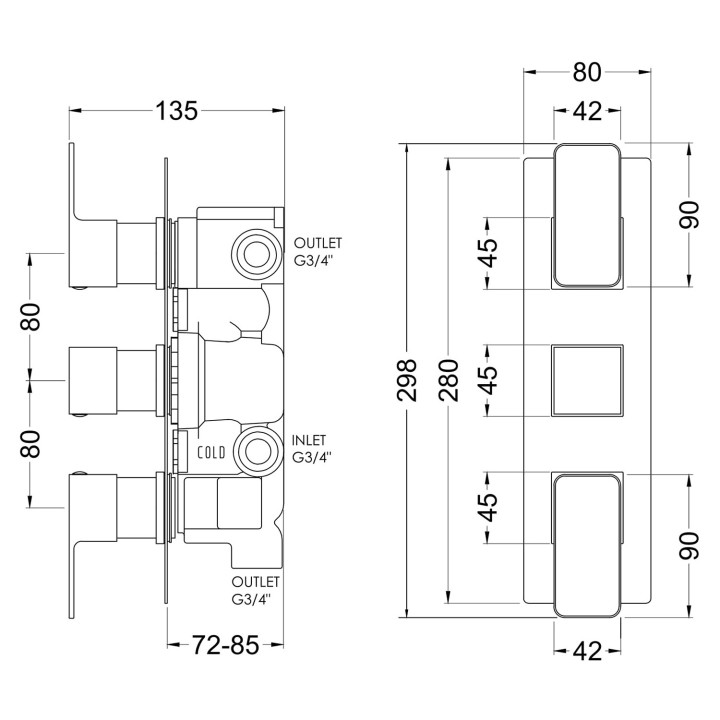

    Windon Triple Thermostatic Valve With Diverter - Brushed Pewter - Technical Drawing
  • Windon Triple Thermostatic Valve With Diverter - Brushed Pewter
  • Windon Triple Thermostatic Valve With Diverter - Brushed Pewter - Technical Drawing
£322.00
VAT included
local_shipping Order now for FREE delivery between Thursday, 20th March - Monday, 24th March

Data sheet

Width (mm)
120mm
Height (mm)
300mm
Depth (mm)
135mm
Outer Finish
Brushed Pewter
Colour Family
Brushed Finish
Guarantee
3 Years
Operating Pressure
0.5
Weight
3.5KG
Waste Included
No
Valve/Cartridge Type
1/4 Turn Ceramic Disc
Flow Rate - 0.5 Bar
13
Flow Rate - 1 Bar
17
Flow Rate - 2 Bar
24
Flow Rate - 3 Bar
27
Brand
Nuie Nuie

  • Minimalist sleek design with brushed pewter finish
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
