"Korona" 3 Column - 500mm(h) White Horizontal Radiators (37 Sizes)
Product Code:
NWT3235-43603
check_box
In stock
The Korona 3 Column, 500mm(h) range is a Traditional Style Column Radiator with impressive heat outputs ideal for period or modern properties alike. Available in a large range of sizes this is the perfect model for a full replacement of your heating system.
local_shipping
If you order before 2pm your order will be delivered FREE between Friday, 20th June - Monday, 23rd June
| Dimensions | |
|---|---|
| Width (mm) | 1104mm, 429mm, 1149mm, 564mm, 1239mm, 609mm, 1284mm, 654mm, 1329mm, 699mm, 1464mm, 744mm, 1509mm, 789mm, 1554mm, 834mm, 1644mm, 474mm, 879mm, 1689mm, 519mm, 924mm, 159mm, 1014mm, 1419mm, 204mm, 1599mm, 249mm, 1374mm, 294mm, 969mm, 339mm, 1059mm, 384mm |
| Height (mm) | 500mm |
| Depth (mm) | 101mm |
| Projection | 131mm (Wall to Front) |
| Technical Specifications | |
|---|---|
| Output BTUs | 6438, 696, 3480, 6612, 870, 3654, 6786, 1044, 3828, 6960, 1218, 4002, 1392, 4176, 4350, 1566, 4524, 1740, 4698, 1914, 4872, 2088, 5046, 2262, 5220, 2436, 5394, 2610, 5568, 2784, 5916, 2958, 6090, 3132, 6264, 522, 3306 |
| Output Watts | 1581, 765, 1632, 816, 1683, 867, 1734, 918, 1785, 153, 969, 1836, 204, 1020, 1887, 255, 1071, 1938, 306, 1122, 1989, 357, 1173, 2040, 408, 1224, 459, 1275, 510, 1326, 561, 1377, 612, 1428, 663, 1479, 714, 1530 |
| Fuel Type | Central Heating |
| Detail | 522 BTU's |
| Materials & Construction | |
|---|---|
| Material | Mild Steel |
| Design & Appearance | |
|---|---|
| Design | Korona |
| Outer Finish | White Powder Coating |
| Colour Family | White |
| Tube Bar Pattern | See Description |
| Fixtures & Fittings | |
|---|---|
| Fixing Kit | 4 Wall Brackets |
| Certifications & Standards | |
|---|---|
| Guarantee | 10 Years |
| Other Information | |
|---|---|
| Columns | 3 |
| Brand | |
|---|---|
| Brand | NWT Direct |
Description
Our range of Korona 2, 3 & 4 Column Radiators are a classic statement piece of designer heating. They make a feature of any roomset while providing impressive heat outputs. We have a variety of sizes in both Horizontal and Vertical orientation which are available in 2,3 or 4 column deep.

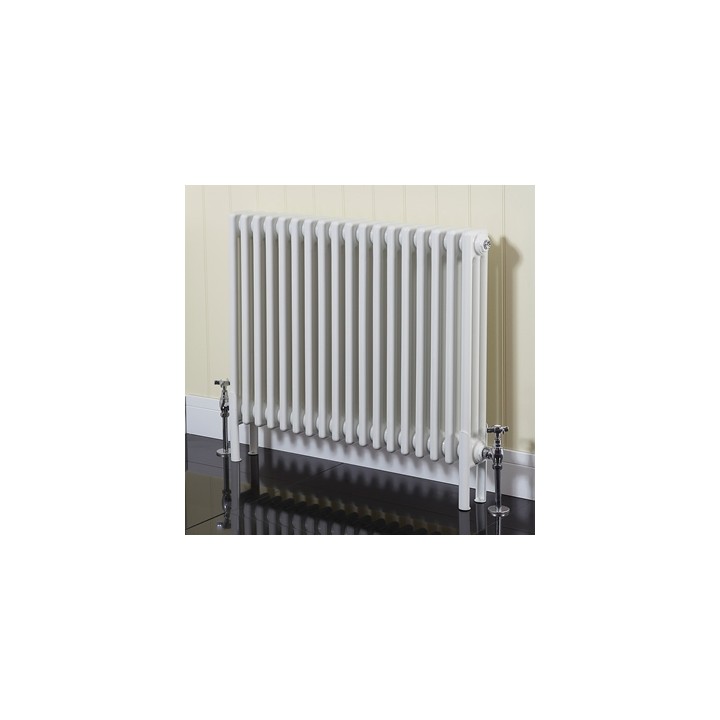

NOTE: Due to the weight of the Korona radiators we recommend you install them onto solid walls or purchase the feet supports as an addition (as pictured).
| 3 Column | |||||
| Height | Width | Depth | Sections | Watts | Btu's |
| 500 | 159 | 101 | 3 | 153 | 522 |
| 500 | 204 | 101 | 4 | 204 | 696 |
| 500 | 249 | 101 | 5 | 255 | 870 |
| 500 | 294 | 101 | 6 | 306 | 1044 |
| 500 | 339 | 101 | 7 | 357 | 1218 |
| 500 | 384 | 101 | 8 | 408 | 1392 |
| 500 | 429 | 101 | 9 | 459 | 1566 |
| 500 | 474 | 101 | 10 | 510 | 1740 |
| 500 | 519 | 101 | 11 | 561 | 1914 |
| 500 | 564 | 101 | 12 | 612 | 2088 |
| 500 | 609 | 101 | 13 | 663 | 2262 |
| 500 | 654 | 101 | 14 | 714 | 2436 |
| 500 | 699 | 101 | 15 | 765 | 2610 |
| 500 | 744 | 101 | 16 | 816 | 2784 |
| 500 | 789 | 101 | 17 | 867 | 2958 |
| 500 | 834 | 101 | 18 | 918 | 3132 |
| 500 | 879 | 101 | 19 | 969 | 3306 |
| 500 | 924 | 101 | 20 | 1020 | 3480 |
| 500 | 969 | 101 | 21 | 1071 | 3654 |
| 500 | 1014 | 101 | 22 | 1122 | 3828 |
| 500 | 1059 | 101 | 23 | 1173 | 4002 |
| 500 | 1104 | 101 | 24 | 1224 | 4176 |
| 500 | 1149 | 101 | 25 | 1275 | 4350 |
| 500 | 1194 | 101 | 26 | 1326 | 4524 |
| 500 | 1239 | 101 | 27 | 1377 | 4698 |
| 500 | 1284 | 101 | 28 | 1428 | 4872 |
| 500 | 1329 | 101 | 29 | 1479 | 5046 |
| 500 | 1374 | 101 | 30 | 1530 | 5220 |
| 500 | 1419 | 101 | 31 | 1581 | 5394 |
| 500 | 1464 | 101 | 32 | 1632 | 5568 |
| 500 | 1509 | 101 | 33 | 1683 | 5742 |
| 500 | 1554 | 101 | 34 | 1734 | 5916 |
| 500 | 1599 | 101 | 35 | 1785 | 6090 |
| 500 | 1644 | 101 | 36 | 1836 | 6264 |
| 500 | 1689 | 101 | 37 | 1887 | 6438 |
| 500 | 1734 | 101 | 38 | 1938 | 6612 |
| 500 | 1779 | 101 | 39 | 1989 | 6786 |
| 500 | 1824 | 101 | 40 | 2040 | 6960 |
NOTE: Our range of Korona radiators are supplied with our 10 year manufacturer guarantee as standard and are delivered on a dedicated pallet service for their own safety during transportation.
Radiator Valves
In Stock
In Stock
In Stock
In Stock
Accessories
In Stock
Others in range
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
Other Colours
In Stock
In Stock
This is just a guide for reference only, rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°
