"Korona" 4 Column - 750mm(h) White Horizontal Radiators (37 Sizes)

NWT3240-44039
  • In Stock
  • Btus: 984 - 13120
  • 288 - 3840 Watts
"Korona" 4 Column Horizontal Radiators (10 Sizes)
search
  • "Korona" 4 Column Horizontal Radiators (10 Sizes)
  • "Korona" 4 Column Horizontal Radiators (10 Sizes)

The Korona 4 Column 750mm(h) range is a Traditional Style Column Radiator with impressive heat outputs ideal for period or modern properties alike. Available in a large range of sizes this is the perfect model for a full replacement of your heating system.

Choose Radiator Size
£83.00
VAT included
local_shipping Order now for FREE delivery between Wednesday, 1st June - Thursday, 2nd June

Data sheet

Height (mm)
750mm
Width (mm)
159mm, 204mm, 249mm, 294mm, 339mm, 384mm, 429mm, 474mm, 519mm, 564mm, 609mm, 654mm, 699mm, 744mm, 789mm, 834mm, 879mm, 924mm, 969mm, 1014mm, 1059mm, 1104mm, 1149mm, 1194mm, 1239mm, 1284mm, 1329mm, 1374mm, 1419mm, 1464mm, 1509mm, 1554mm, 1599mm, 1644mm, 1689mm, 1734mm, 1779mm, 1824mm
Depth (mm)
139mm
Outer Finish
White Powder Coating
Material
Mild Steel
Design
Korona
Output BTUs
984, 1312, 1640, 1968, 2296, 2624, 2952, 3280, 3608, 3936, 4264, 4592, 4920, 5248, 5576, 5904, 6232, 6560, 6888, 7216, 7544, 7872, 8200, 8528, 8856, 9184, 9512, 9840, 10168, 10496, 10824, 11152, 11480, 11808, 12136, 12464, 12792, 13120
Output Watts
288, 384, 480, 567, 672, 768, 864, 960, 1056, 1152, 1248, 1344, 1440, 1536, 1632, 1728, 1824, 1920, 2016, 2112, 2208, 2304, 2400, 2496, 2592, 2688, 2784, 2880, 2976, 3072, 3168, 3264, 3360, 3456, 3552, 3648, 3744, 3840
Tube Bar Pattern
See Description
Fixing Kit
4 Wall Brackets
Guarantee
10 Year Guarantee
Projection
169mm (Wall to Front)
Columns
4
Fuel Type
Central Heating
Brand
NWT Direct NWT Direct

Our range of Korona 2, 3 & 4 Column Radiators are a classic statement piece of designer heating. They make a feature of any roomset while providing impressive heat outputs. We have a variety of sizes in both Horizontal and Vertical orientation which are available in 2,3 or 4 column deep.

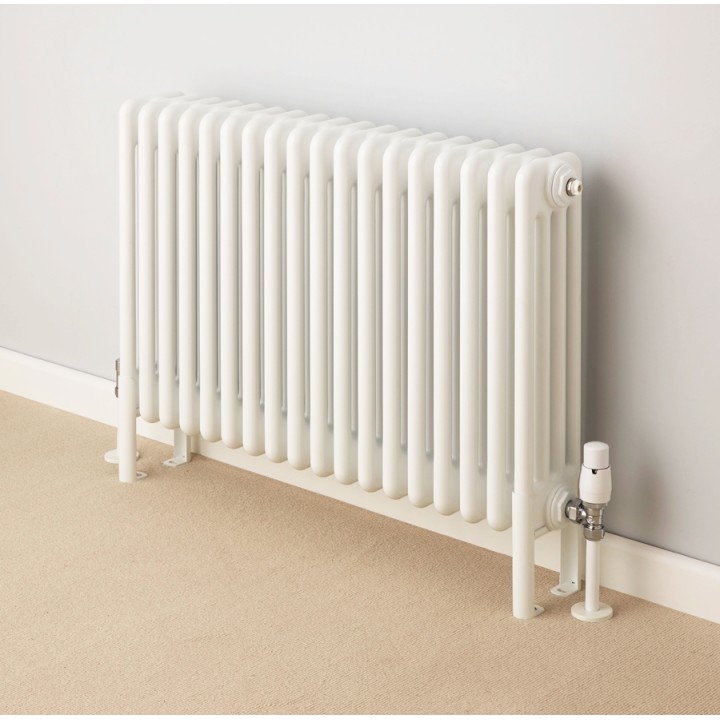

NOTE: Due to the weight of the Korona radiators we recommend you install them onto solid walls or purchase the feet supports as an addition(as pictured).

HeightWidthDepthSectionsWattsBtu's
750 159 139 3 288 984
750 204 139 4 384 1312
750 249 139 5 480 1640
750 294 139 6 576 1968
750 339 139 7 672 2296
750 384 139 8 768 2624
750 429 139 9 864 2952
750 474 139 10 960 3280
750 519 139 11 1056 3608
750 564 139 12 1152 3936
750 609 139 13 1248 4264
750 654 139 14 1344 4592
750 699 139 15 1440 4920
750 744 139 16 1536 5248
750 789 139 17 1632 5576
750 834 139 18 1728 5904
750 879 139 19 1824 6232
750 924 139 20 1920 6560
750 969 139 21 2016 6888
750 1014 139 22 2112 7216
750 1059 139 23 2208 7544
750 1104 139 24 2304 7872
750 1149 139 25 2400 8200
750 1194 139 26 2496 8528
750 1239 139 27 2592 8856
750 1284 139 28 2688 9184
750 1329 139 29 2784 9512
750 1374 139 30 2880 9840
750 1419 139 31 2976 10168
750 1464 139 32 3072 10496
750 1509 139 33 3168 10824
750 1554 139 34 3264 11152
750 1599 139 35 3360 11480
750 1644 139 36 3456 11808
750 1689 139 37 3552 12136
750 1734 139 38 3648 12464
750 1779 139 39 3744 12792
750 1824 139 40 3840 13120


These floor mounts are designed for the korona radiatorThese slip on feet are designed for the korona radiator

NOTE: Our range of Korona radiators are supplied with our 10 year manufacturer guarantee as standard and are delivered on a dedicated pallet service for their own safety during transportation.

This is just a guide for reference only, rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°
