"Art" Twin Concealed Thermostic Valve Rectangular Plate

NWT7855
ART3210

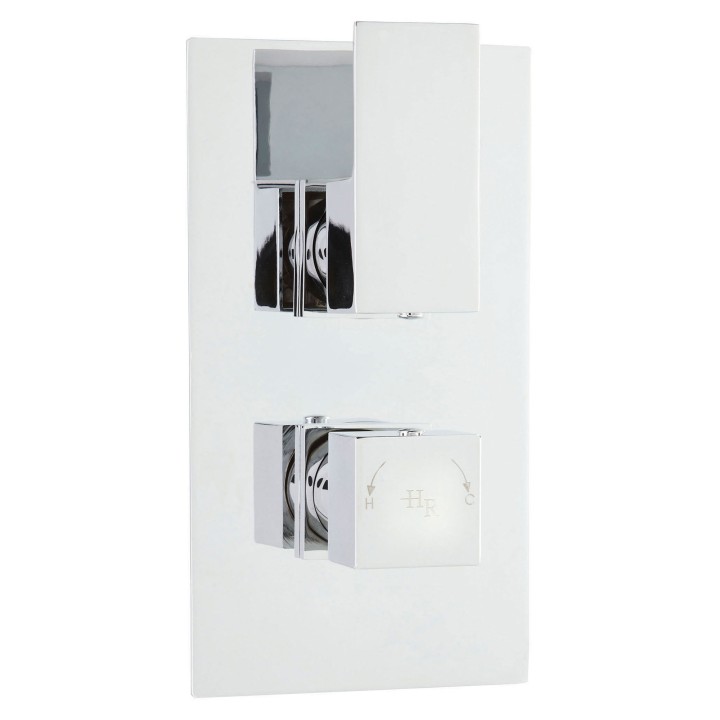

Art Twin Concealed Thermostic Valve Rectangular Plate
search
  • Art Twin Concealed Thermostic Valve Rectangular Plate

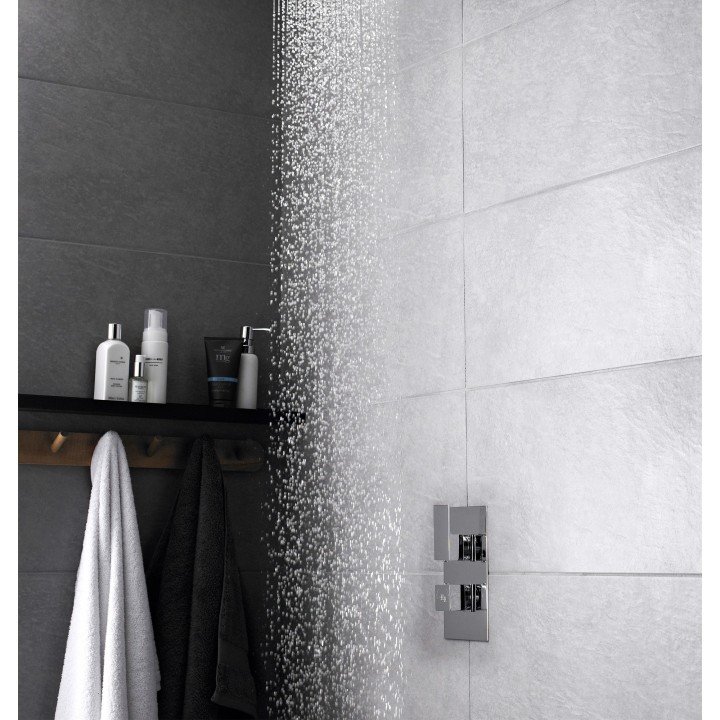

  • Art Twin Concealed Thermostic Valve Rectangular Plate - Insitu

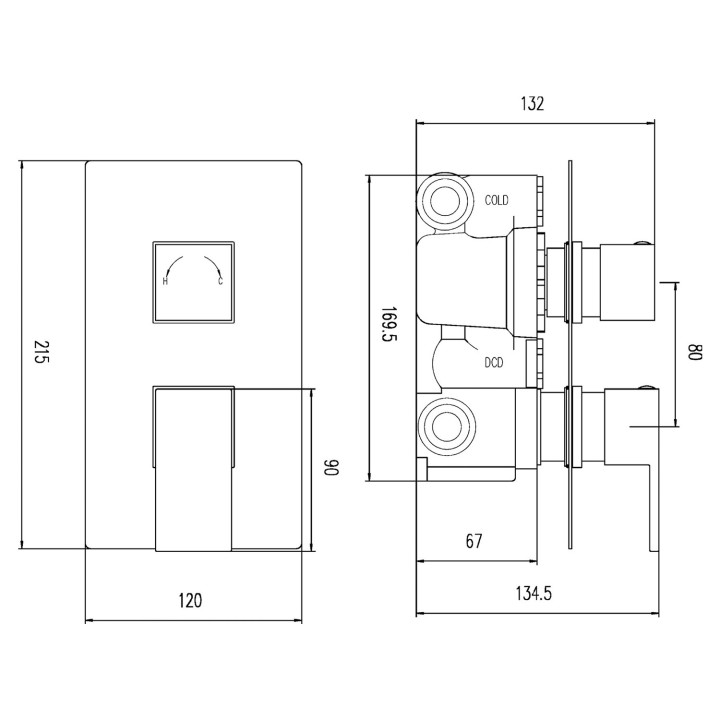

  • Art Twin Concealed Thermostic Valve Rectangular Plate - Technical Drawing
£264.00
VAT included
Your pre-order will be delivered when back in stock, which is currently due on Monday, 22nd July

Data sheet

Outer Finish
Chrome
Height (mm)
215mm
Width (mm)
120mm
Depth (mm)
135mm
Design
Art
Colour Family
Chrome
Made In UK
Yes
Operating Pressure
0.1
Cartridge Type
1/4 Turn
Flow Rate at 0.1 Bar
5.5 L/min
Flow Rate at 0.5 Bar
14 L/min
Flow Rate at 1 Bar
20 L/min
Flow Rate at 2 Bar
29 L/min
Flow Rate at 3 Bar
44 L/min
WRAS Approved
Yes
WRAS Approval Number
1703023
TMV2 Approved
Yes
TMV2 Approval Number
Bc 1875 00817
TMV3 Approval Number
Nsf 1938 1217
TMV3 Approved
Yes
Finish
Chrome
Brand
Hudson Reed Hudson Reed

  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
