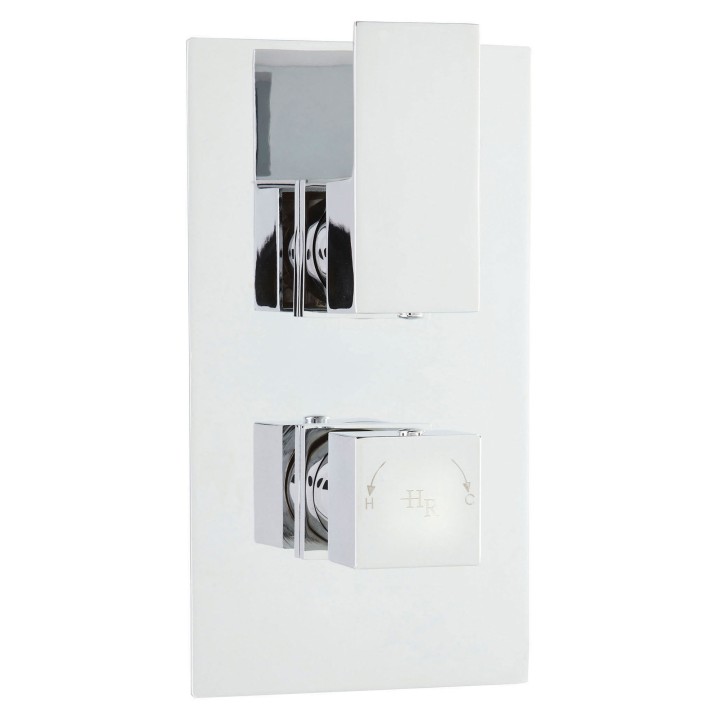

"Art" Twin Valve with Built In Diverter Rectangular Plate

NWT7854
ART3207
Art Twin Valve with Built In Diverter Rectangular Plate
search
  • Art Twin Valve with Built In Diverter Rectangular Plate

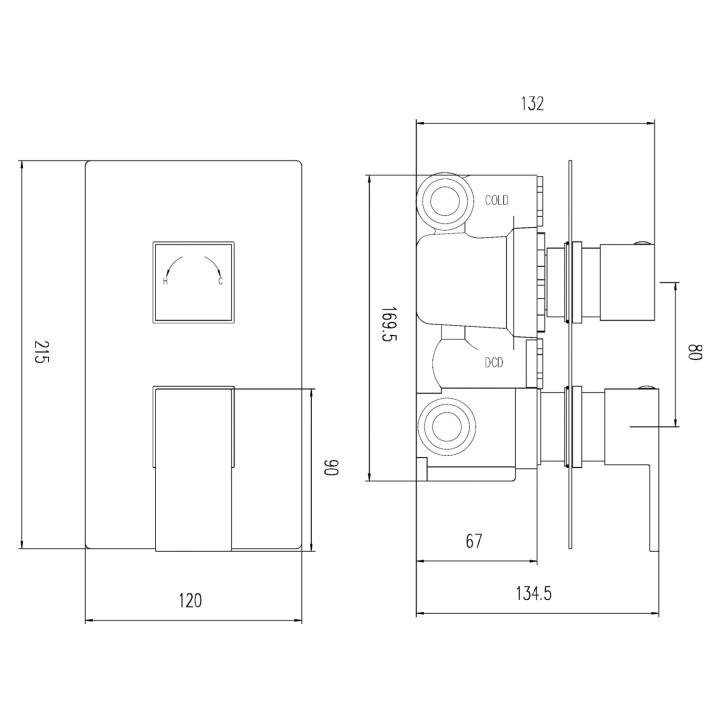

  • Art Twin Valve with Built In Diverter Rectangular Plate - Technical Drawing
£290.00
VAT included
local_shipping Order now for FREE delivery between Thursday, 7th November - Monday, 11th November

Data sheet

Outer Finish
Chrome
Height (mm)
215mm
Width (mm)
120mm
Depth (mm)
135mm
Design
Art
Colour Family
Chrome
Made In UK
Yes
Operating Pressure
0.5
Cartridge Type
1/4 Turn
Flow Rate at 0.5 Bar
13 L/min
Flow Rate at 1 Bar
17 L/min
Flow Rate at 2 Bar
24 L/min
Flow Rate at 3 Bar
27 L/min
Finish
Chrome
Brand
Hudson Reed Hudson Reed

  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
