"Kristal" Twin Concealed Thermostatic Valve Rectangular Plate

NWT7905
KRI3210
Kristal Twin Concealed Thermostatic Valve Rectangular Plate
search

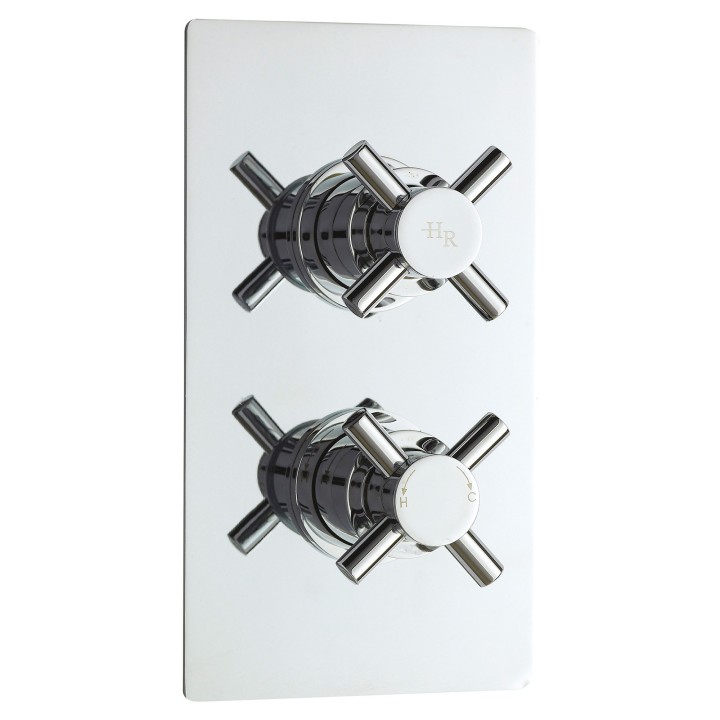

  • Kristal Twin Concealed Thermostatic Valve Rectangular Plate

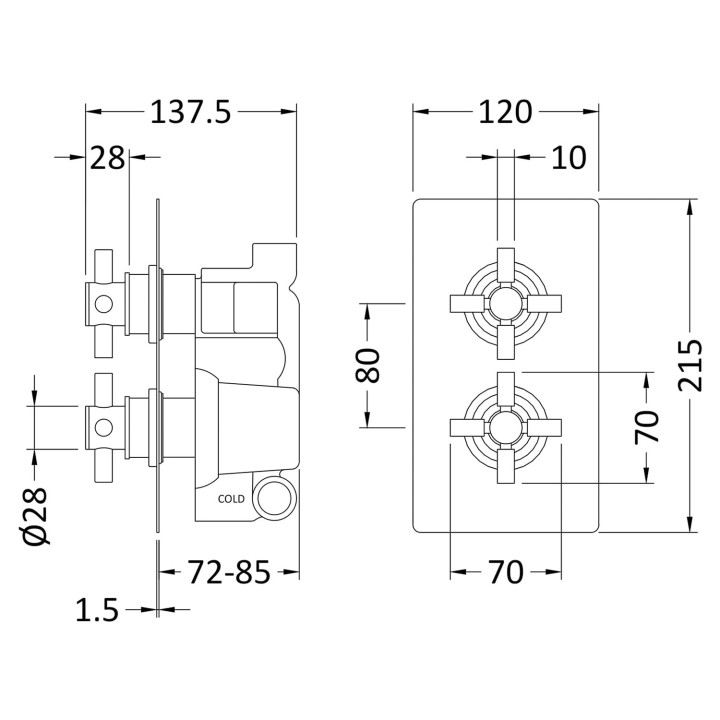

  • Kristal Twin Concealed Thermostatic Valve Rectangular Plate - Technical Drawing
£264.00
VAT included
local_shipping Order now for FREE delivery between Thursday, 7th November - Monday, 11th November

Data sheet

Outer Finish
Chrome
Height (mm)
215mm
Width (mm)
120mm
Depth (mm)
138mm
Design
Kristal
Colour Family
Chrome
Made In UK
Yes
Operating Pressure
0.1
Cartridge Type
1/4 Turn
Flow Rate at 0.1 Bar
5.5 L/min
Flow Rate at 0.5 Bar
14 L/min
Flow Rate at 1 Bar
20 L/min
Flow Rate at 2 Bar
29 L/min
Flow Rate at 3 Bar
44 L/min
WRAS Approved
Yes
WRAS Approval Number
1703023
TMV2 Approved
Yes
TMV2 Approval Number
Bc 1875 00817
TMV3 Approval Number
Nsf 1938 1217
TMV3 Approved
Yes
Finish
Chrome
Brand
Hudson Reed Hudson Reed

  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
  • In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
