Kristal Triple Concealed Valve With Diverter

NWT7903
Kristal Triple Concealed Valve With Diverter
search

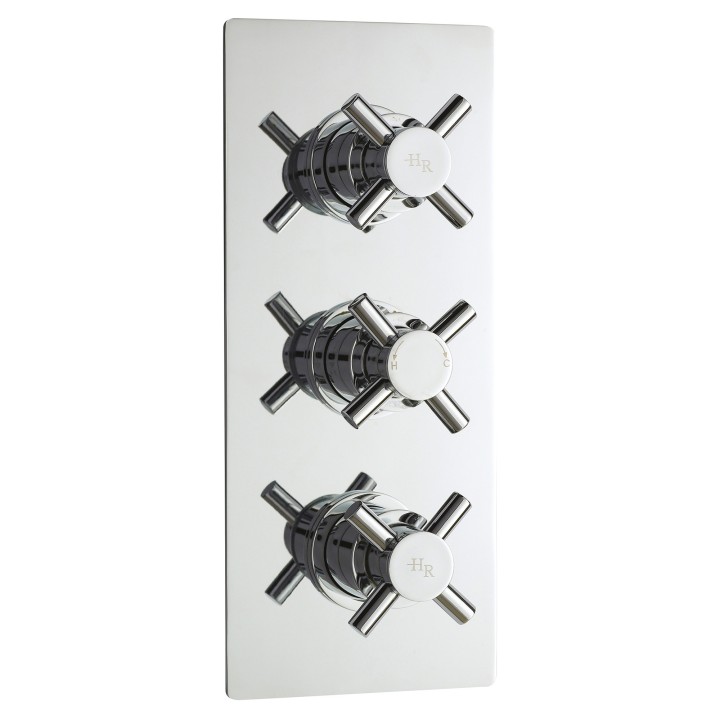

  • Kristal Triple Concealed Valve With Diverter

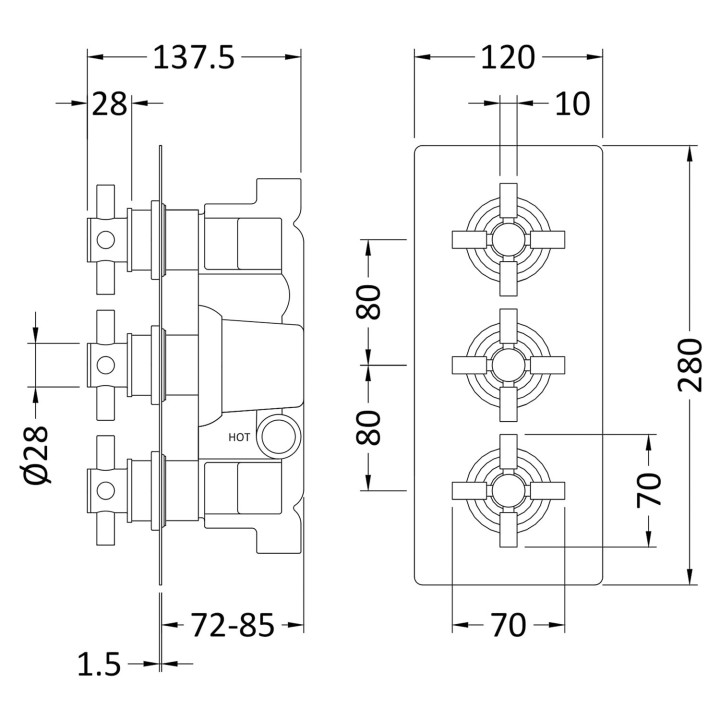

  • Kristal Triple Concealed Valve With Diverter - Technical Drawing
£330.00
VAT included
local_shipping If you order before 2pm your order will be delivered FREE between Tuesday, 26th November - Thursday, 28th November

Data sheet

Outer Finish
Chrome
Height (mm)
280mm
Width (mm)
120mm
Depth (mm)
136mm
Design
Kristal
Colour Family
Chrome
Made In UK
Yes
Operating Pressure
0.5
Cartridge Type
1/4 Turn
Flow Rate at 0.5 Bar
13 L/min
Flow Rate at 1 Bar
17 L/min
Flow Rate at 2 Bar
24 L/min
Flow Rate at 3 Bar
27 L/min
Finish
Chrome
Brand
Hudson Reed Hudson Reed

  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
