Chrome Round Twin Concealed Thermostatic Shower Valve

NWT7919
check_box In stock
  • search

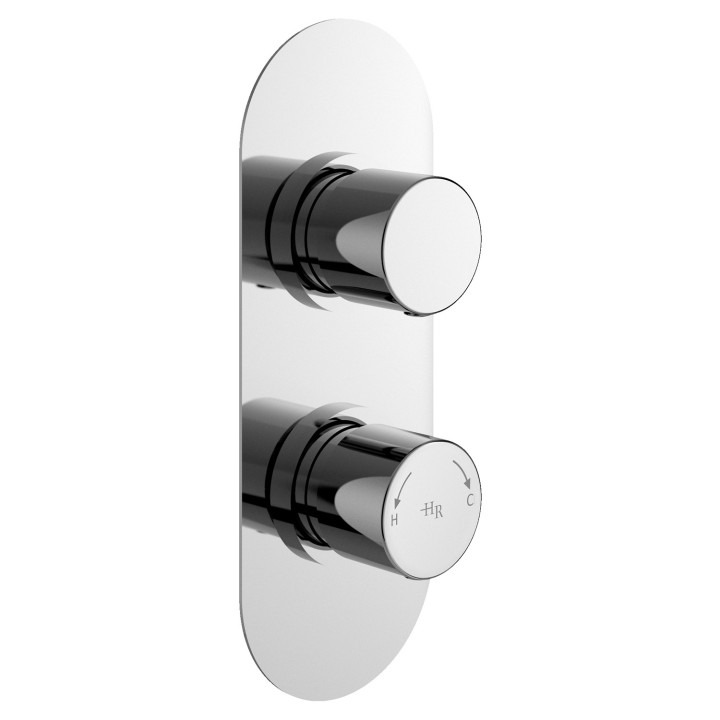

    Chrome Round Twin Concealed Thermostatic Shower Valve
  • search

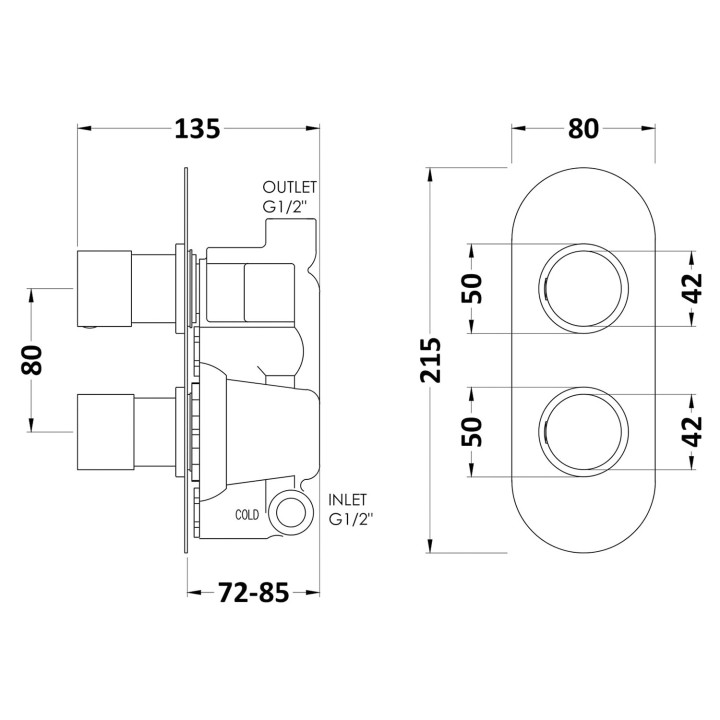

    Chrome Round Twin Concealed Thermostatic Shower Valve - Technical Drawing
  • Chrome Round Twin Concealed Thermostatic Shower Valve
  • Chrome Round Twin Concealed Thermostatic Shower Valve - Technical Drawing
£273.00
VAT included
local_shipping If you order before 2pm your order will be delivered FREE between Wednesday, 4th June - Friday, 6th June

Data sheet

Width (mm)
80mm
Height (mm)
215mm
Depth (mm)
136mm
Outer Finish
Chrome
Colour Family
Chrome
Operating Pressure
0.1
Cartridge Type
1/4 Turn
Flow Rate at 0.1 Bar
5.5 L/min
Flow Rate at 0.5 Bar
14 L/min
Flow Rate at 1 Bar
20 L/min
Flow Rate at 2 Bar
29 L/min
Flow Rate at 3 Bar
44 L/min
WRAS Approved
Yes
WRAS Approval Number
1703023
TMV2 Approved
Yes
TMV2 Approval Number
Bc 1875 00817
TMV3 Approval Number
Nsf 1938 1217
TMV3 Approved
Yes
Finish
Chrome
Brand
Hudson Reed Hudson Reed

  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
