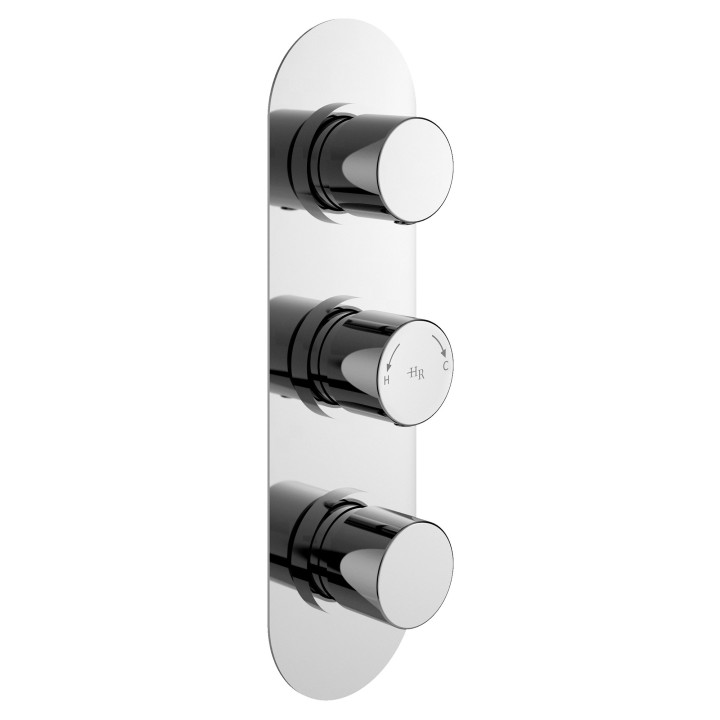

Chrome Round Triple Concealed Thermostatic Shower Valve with Diverter

NWT7922
check_box In stock
  • search
    Chrome Round Triple Concealed Thermostatic Shower Valve with Diverter
  • search

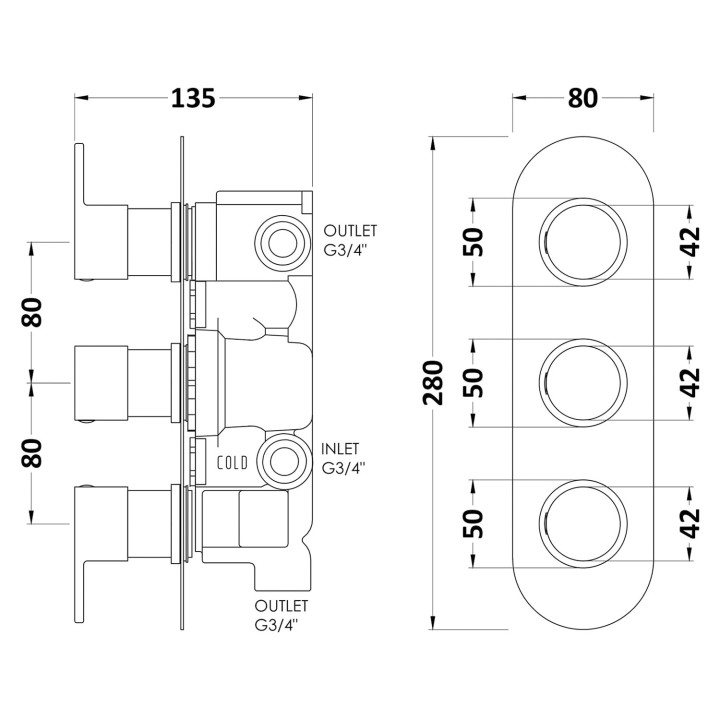

    Chrome Round Triple Concealed Thermostatic Shower Valve with Diverter - Technical Drawing
  • Chrome Round Triple Concealed Thermostatic Shower Valve with Diverter
  • Chrome Round Triple Concealed Thermostatic Shower Valve with Diverter - Technical Drawing
£338.00
VAT included
local_shipping If you order before 2pm your order will be delivered FREE between Thursday, 27th March - Monday, 31st March

Data sheet

Width (mm)
95mm
Height (mm)
280mm
Depth (mm)
136mm
Outer Finish
Chrome
Colour Family
Chrome
Operating Pressure
0.5
Cartridge Type
1/4 Turn
Flow Rate at 0.1 Bar
N/A L/min
Flow Rate at 0.5 Bar
13 L/min
Flow Rate at 1 Bar
17 L/min
Flow Rate at 2 Bar
24 L/min
Flow Rate at 3 Bar
27 L/min
Finish
Chrome
Brand
Hudson Reed Hudson Reed

  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
