Ultraheat Virtu White Vertical Aluminium Radiators

Data sheet

Outer Finish: White Powder Coating
Height (mm): 1500mm, 1800mm, 2000mm
Width (mm): 205mm, 275mm, 345mm, 415mm, 485mm, 625mm, 695mm
Depth (mm): 69mm
Design: Virtu
Colour Family: White
Material: Aluminium
Output BTUs: 2418, 3224, 4030, 4030, 4320, 4559, 4836, 5553, 5642, 6171, 6383, 7253, 8206
Output Watts: 709, 945, 1181, 1181, 1266, 1336, 1336, 1417, 1627, 1654, 1871, 2126, 2405
Accessories: Supplied with Wall Brackets, Bleed Valve & Blank Plug
Guarantee: 10 Years
Projection: 94mm (Wall to Front)
Pipe Centres: (Side Entry) Width of Radiator plus Valves (Underside) 50mm
Socket Width: 1/2" BSP
Brand: Ultraheat

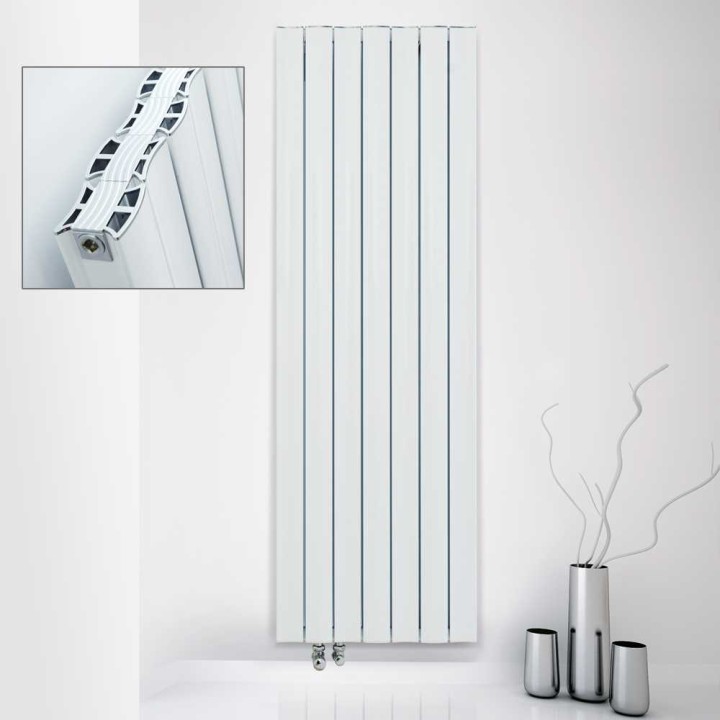

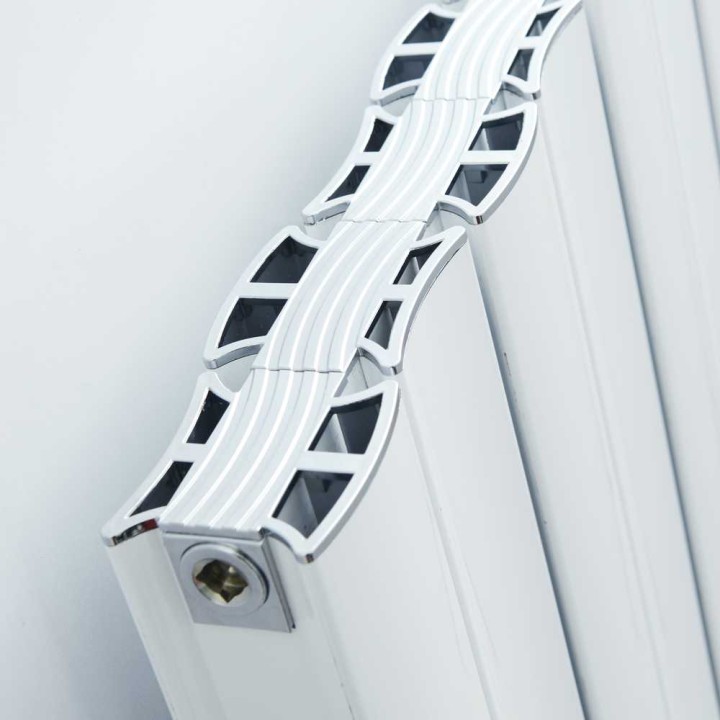

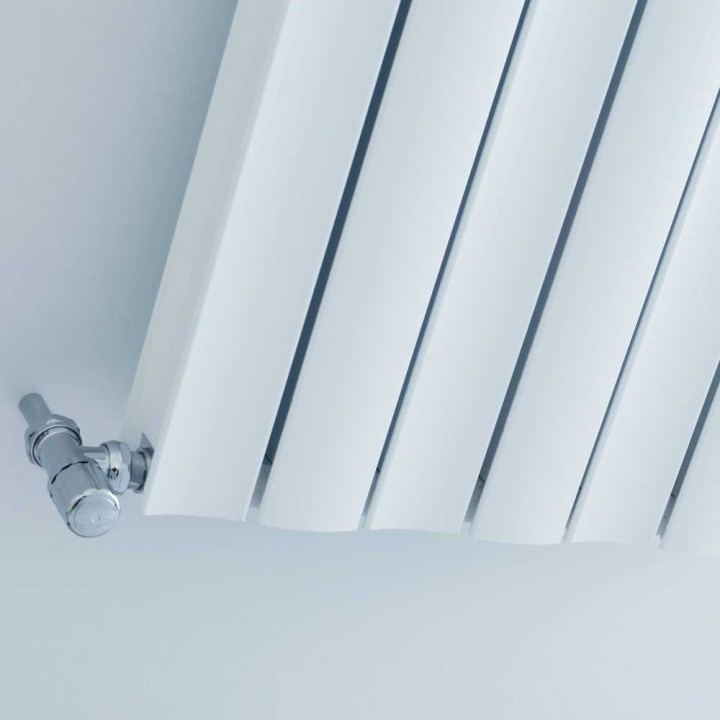

"Virtu" White Designer Vertical Aluminium Radiators (13 Sizes)

The elegant, alternating sections of the Virtu white aluminium radiator fit seamlessly into a variety of roomsets in a modern, gloss white finish. This contemporary radiator can be used throughout the home and will enhance any modern kitchen or living room. The wide range of available sizes and impressive heat outputs makes this ideal for full house renovations.

		RAL 9010		Max Working Pressure: 10 Bar		10 Year Guarantee
Product Code	Height	Length	Depth	Pipe Centers	Wall to Face	BTU's	Watt's
VRT1505W	1500	345	69	50 - 435	94	3087	904
VRT1507W	1500	485	69	50 - 575	94	4320	1265
VRT1509W	1500	625	69	50 - 715	94	5553	1626
VRT1510W	1500	695	69	50 - 785	94	6171	1807
VRT1803W	1800	205	69	50 - 624	94	2418	708
VRT1804W	1800	275	69	50 - 365	94	3224	944
VRT1805W	1800	345	69	50 - 435	94	4030	1180
VRT1806W	1800	415	69	50 - 505	94	4836	1416
VRT1807W	1800	485	69	50 - 575	94	5642	1652
VRT1009W	2000	625	69	50 - 715	94	7253	2124
VRT2005W	2000	345	69	50 - 435	94	4559	1335
VRT2007W	2000	485	69	50 - 575	94	6383	1869
VRT2009W	2000	625	69	50 - 715	94	8206	2403

Vertical Convex & Concave Panels
A choice of 13 models to suit your needs from 3087 BTU (904 Watts) up to 8206 BTU (2403 Watts)
High quality white coated finish
10 year warranty
Built to last: 1.5mm thick aluminium for guaranteed quality
Tested to BS EN 442 Standards
ISO9001:2008 Registered Manufacturer
CE Marked

Technical Drawing (3.03M)
