Tec Crosshead Brushed Brass Triple Thermostatic Shower Valve With Diverter

NWT10415
check_box In stock
  • search

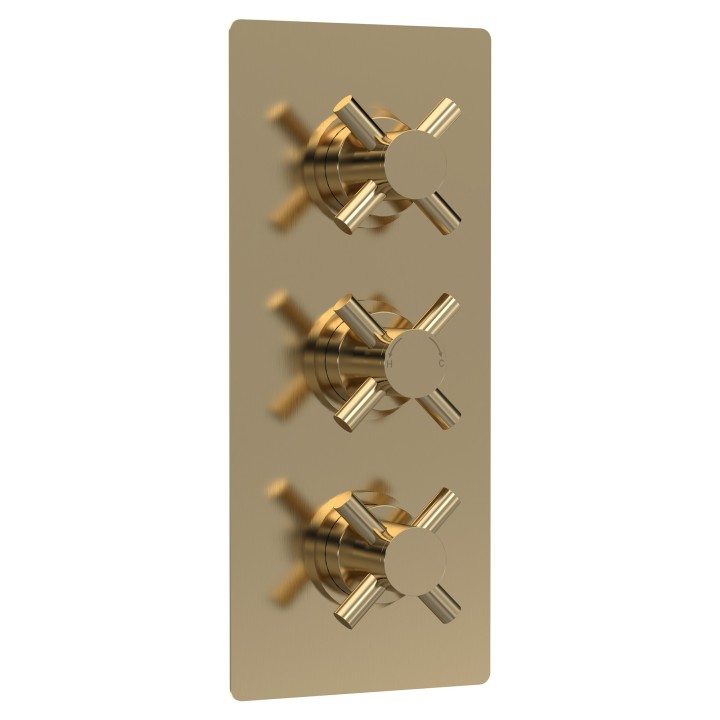

    Tec Crosshead Brushed Brass Triple Thermostatic Shower Valve With Diverter
  • search

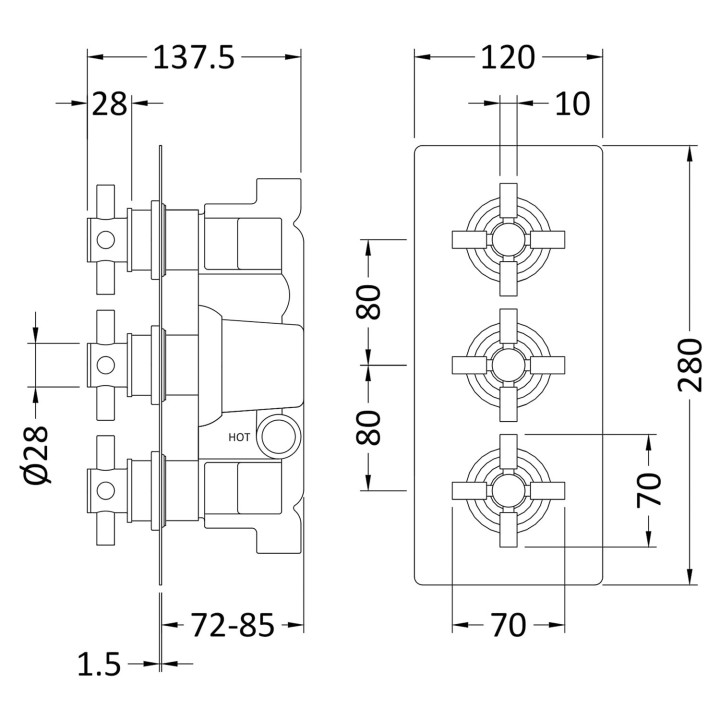

    Tec Crosshead Brushed Brass Triple Thermostatic Shower Valve With Diverter - Technical Drawing
  • Tec Crosshead Brushed Brass Triple Thermostatic Shower Valve With Diverter
  • Tec Crosshead Brushed Brass Triple Thermostatic Shower Valve With Diverter - Technical Drawing
£406.00
VAT included
local_shipping Order now for FREE delivery between Friday, 25th April - Monday, 28th April

Data sheet

Width (mm)
120mm
Height (mm)
280mm
Depth (mm)
136mm
Design
Tec Crosshead
Outer Finish
Brushed Brass
Colour Family
Brass
Guarantee
3 Years
Made In UK
Yes
Operating Pressure
0.5
Weight
3.93 KG
Valve/Cartridge Type
1/4 Turn
Flow Rate - 0.5 Bar
13
Flow Rate - 1 Bar
17
Flow Rate - 2 Bar
24
Flow Rate - 3 Bar
27
Range
Tec Crosshead
Brand
Hudson Reed Hudson Reed

  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
