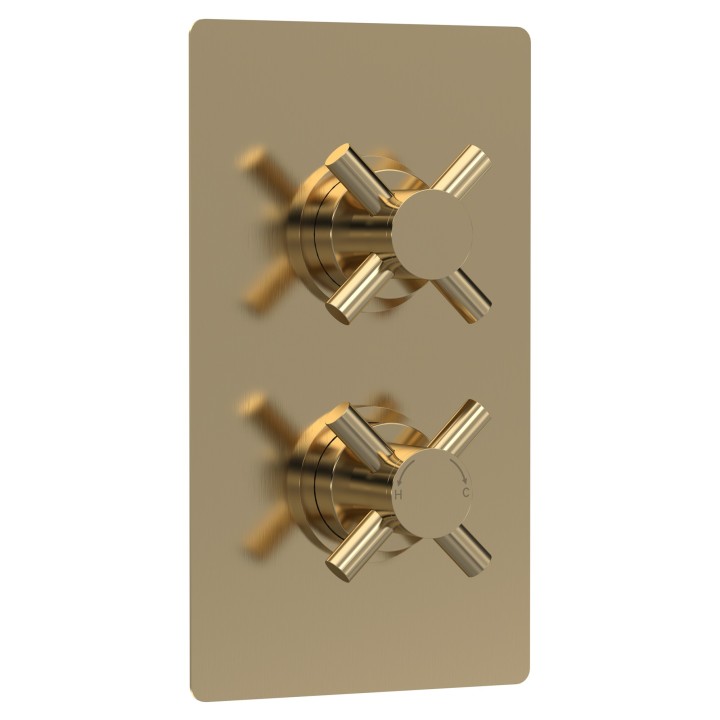

Tec Crosshead Brushed Brass Twin Thermostatic Shower Valve

NWT10419
KRI8210
Tec Crosshead Brushed Brass Twin Thermostatic Shower Valve
search
  • Tec Crosshead Brushed Brass Twin Thermostatic Shower Valve

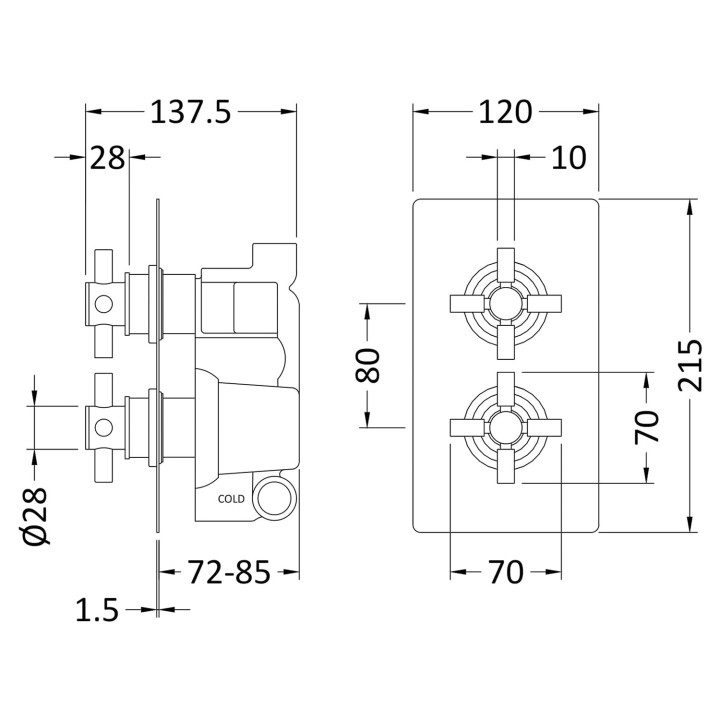

  • Tec Crosshead Brushed Brass Twin Thermostatic Shower Valve - Technical Drawing
£323.00
VAT included
local_shipping If you order before 2pm your order will be delivered FREE between Friday, 8th November - Monday, 11th November

Data sheet

Outer Finish
Brushed Brass
Height (mm)
215mm
Width (mm)
120mm
Depth (mm)
138mm
Design
Tec Crosshead
Colour Family
Brass
Guarantee
3 Years
Made In UK
Yes
Operating Pressure
0.1
WRAS Approved
Yes
WRAS Approval Number
1703023
TMV2 Approved
Yes
TMV2 Approval Number
Bc 1875 00817
TMV3 Approval Number
Nsf 1938 1217
TMV3 Approved
Yes
Weight
4.68 KG
Valve/Cartridge Type
1/4 Turn
Flow Rate - 0.1 Bar
5.5
Flow Rate - 0.5 Bar
14
Flow Rate - 1 Bar
20
Flow Rate - 2 Bar
29
Flow Rate - 3 Bar
44
Range
Tec Crosshead
Brand
Hudson Reed Hudson Reed

  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
  • In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
